MODEL QTR070L

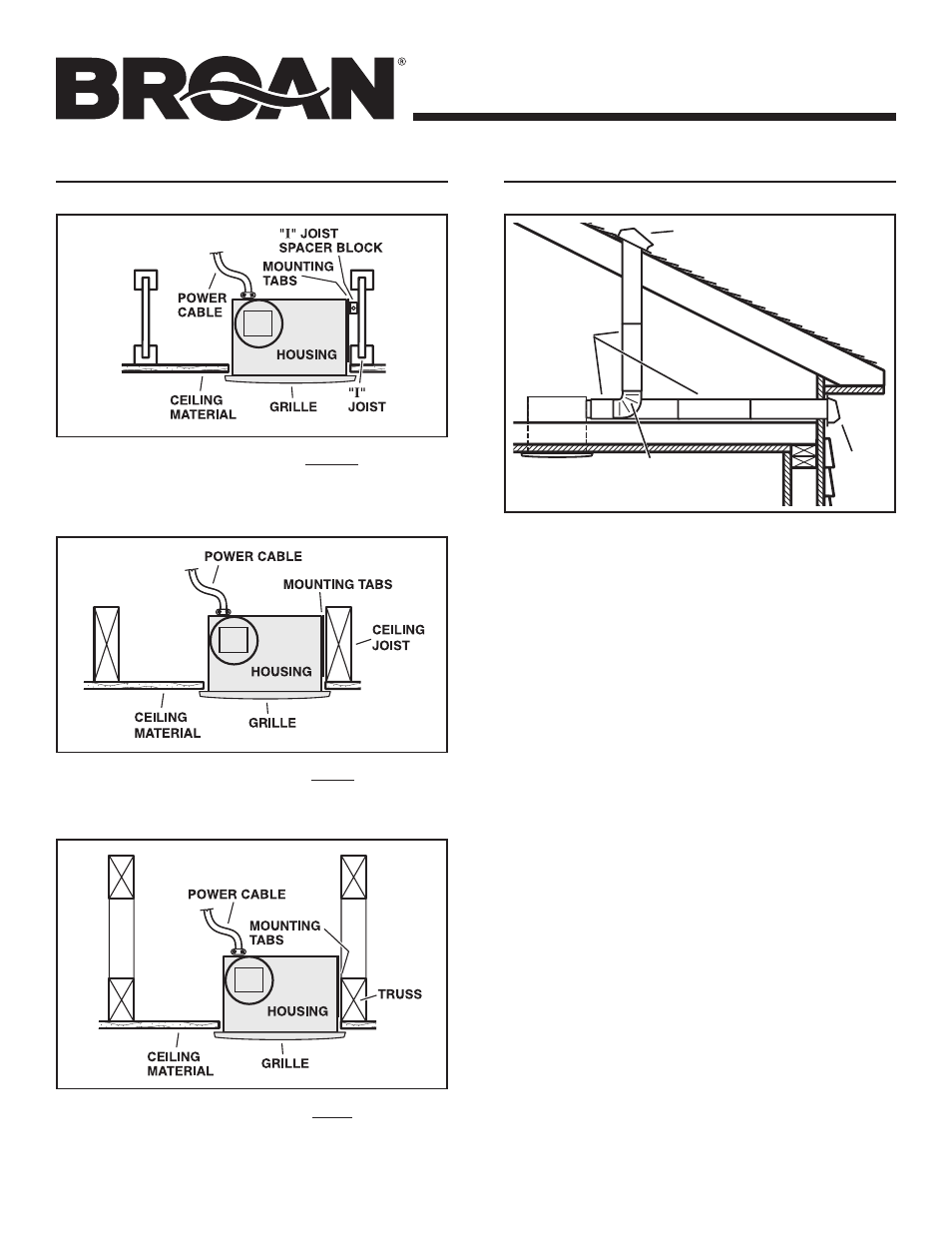

TYPICAL INSTALLATIONS
Housing mounted to I-joists.
Use I-joist spacer block (provided).
Housing mounted to joists.
Housing mounted to truss.
PLAN THE INSTALLATION
ROOF CAP
*
4-IN. ROUND
ELBOW
*
4-IN. ROUND
DUCT
*
WALL
CAP
*
*
Purchase
separately
The unit will operate most quietly and efficiently when located
where the shortest possible duct run and minimum number of
elbows will be needed.
Use a roof cap or wall cap that has a built-in damper to reduce
backdrafts.
Plan to supply the unit with proper line voltage and appropriate
power cable.
