22 Caliber Laser Trainer

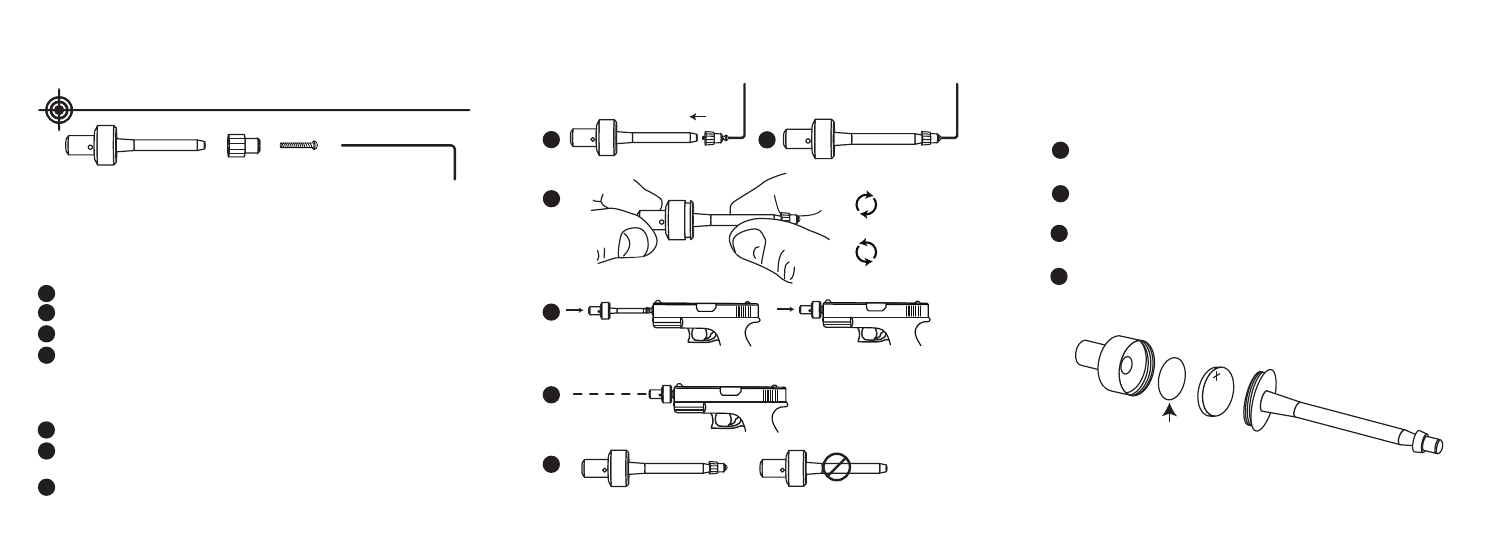

Installation:
• THE SOUND ACTIVATED SWITCH IS ALWAYS LISTENING
• THE BATTERIES ARE ALREADY INSTALLED, YOU MUST REMOVE THE
PLASTIC INSULATOR BEFORE OPERATION. SEE BATTERY SECTION
OF INSTRUCTIONS.
UNLOAD YOUR FIREARM!
Insert screw through adapter and thread into taper of trainer.
Tighten or loosen screw for 22 caliber fit.
TURN ON: Twist the two halves of the laser all the way together.
TURN OFF: Twist the other direction about 2-3 times. Check if it
is off by tapping the LT-LR gently on a hard surface like a table
or a ring.
Gently press the trainer into the muzzle of the firearm.
Ready your firearm and pull trigger to fire red laser dot.
(LaserLyte recommends the use of snap caps.)
When removing from your firearm, pull straight out!
Do not twist! Ensure all parts are out of barrel.
1
2
3
4
7
6
5
LT-LR
LT-LR Adapter Screw Hex Key
2 3
4
5
6
7
ON
Correct Removal No
OFF
Batteries: (1) CR1632
Unscrew the two sides of laser body.
Remove battery.
Install new battery.
Tighten the two sides of laser body.
Remove & discard
Insulator before installation.
1
2
3
4
