.17 TO .22 CALIBER LASER BORE SIGHTER
MBS-1722

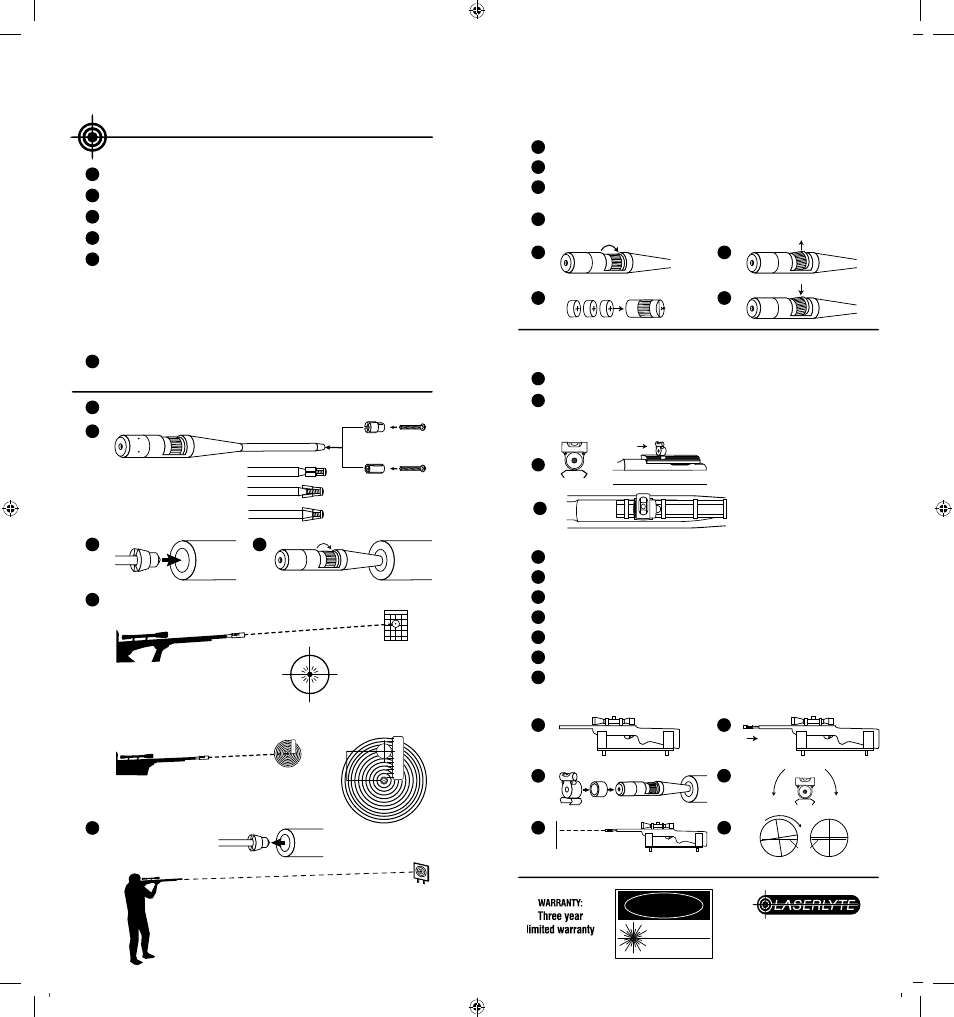

MBS Sight-In Steps
Battery Replacement:
(3) 393 Batteries
DANGER
LASER LIGHT
AVOID DIRECT EYE EXPOSURE
POWER OUTPUT < 5mw
WAVELENGTH 630-670mm
CLASS IIIa PRODUCT
(Optional)
Laser Dot
1
2
3 4
5
6
.20 to .22 Cal.
.17 to .20 Cal.
25-30 Yards/Meters
Optional Daylight
Laser Target
DAYLIGHT LASER TARGET
A. I .
II .
B. I . II .
UNLOAD
YOUR FIREARM!
100 Yards
REMOVE BORE TOOL!
10 Yards/Meters
.25 .50 .75 1.00 1.25 1.50 1.75 2.00 2.25
UNLOAD YOUR FIREARM!
Find adapter to fit your barrel, thread proper screw into adapter.
Adjust adapter to fit snug inside of barrel.
Roll the switch until it comes on.
Sighting-in: A. 25-30 Yards/Meters - RECOMMENDED!
I. Shine laser dot out 25-30 Yards/Meters.
II. Adjust cross hairs directly on top of the dot.
------------------------------- or -----------------------------------
B. 10 Yards/Meters (If 25-30 Yards/Meters not available)
I. Shine laser dot out 10 Yards/Meters.
II. Using product card adjust cross hairs approximately
2 inches/5cm above the red dot.
REMOVE BORE TOOL! At firing range fire first 100 yard/meter shot.
Make final adjustments.
1
2
3
4
5
6
------------------------------- or -----------------------------------
Laser
line
Scope view
before
Scope view
after
Center
Bubble
3 Yards/Meters
Turn the laser to the on position.
Lift up on the plastic battery cup.
Pull out and replace batteries.
Insert Batteries with positive (+) going into cup.
Put battery cup back into bore tool.
1
1 2
4
2
3
3
4
UNLOAD FIREARM! Secure firearm in a rest and make level.
Follow 1-3 Sight-In Steps.
Put the adapter with ring over the end of the bore tool.
Adjust bubble between the two lines.
Turn on laser and shine on wall 3 yards/meters away.
Adjust cross hairs until they are parallel with red laser line.
Tighten down scope rings, pull off scope leveler and proceed
to Sight-In steps.
1
1
3
5 6
2
4
2
3
4
5
6
7
Scope / Gun Leveler Adapter MBS-PAK
Top View
Slide gun leveler onto top scope rail.
Use the bubble level and adjust gun so bubble is between
lines. Secure gun, mount scope and follow scope leveling
directions.
1
1
2
2
Laser Dot
Sight
2 inch
(5cm)
.25 .50
.75
1.00 1.25
1.50
1.75 2.00 2.25
2.55 2.75
3.00
Product Card Target
®
30 N. Alamos Drive - Cottonwood, AZ 86326
Phone 928-649-3201 - Fax 928-649-3970
www.LaserLyte.com
