Kino Flo VG3R Ballast Board - Manual (Page 2)

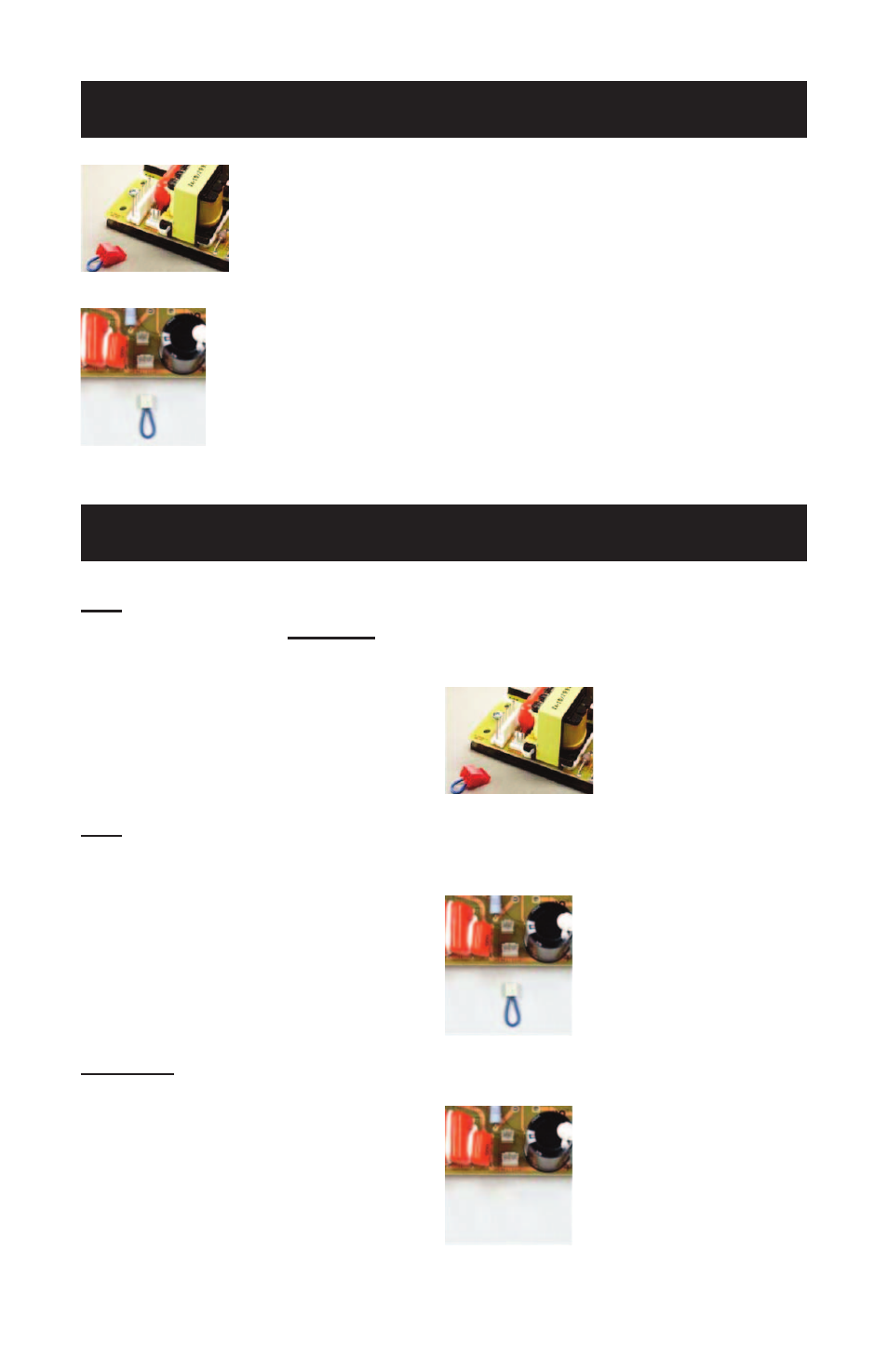

Shorting Plug
HO/Std shorting plug, part # 6350006, (sold separately),
must be used on non-HO/Std products (DMX or
Non-DMX) for proper ballast operation. In most cases,
the shorting plug may be removed from the ballast card
that is being replaced.
.
6350006
2
6350014
Shorting plug, part # 6350014 (included) is used on all
Non-DMX products.
.
Using VG3R with or without Shorting Plugs
Use shorting plug # 6350006 (purchased separately or re-use from
replaced board) and Remove shorting plug # 6350014 with the following
non-HO/Std products:
CFX-W48-X120, CFX-W48-X230
IMG-20X-120, IMG-20X-230
IMG-40X-120, IMG-40X-230
IMG-80X-120, IMG-80X-230
Use shorting plug # 6350014 (included with VG3R) with the following
Non-DMX products:
BAL-105-S120, BAL-100-F230
BAL-210-S120, BAL-210-F230
BAL-410-S120, BAL-410-F230
Remove shorting plug # 6350014 for the following DMX products:
.BAL-450-120, BAL-450-230
IMG-45X-120, IMG-45X-230
IMG-85X-120, IMG-85X-230
