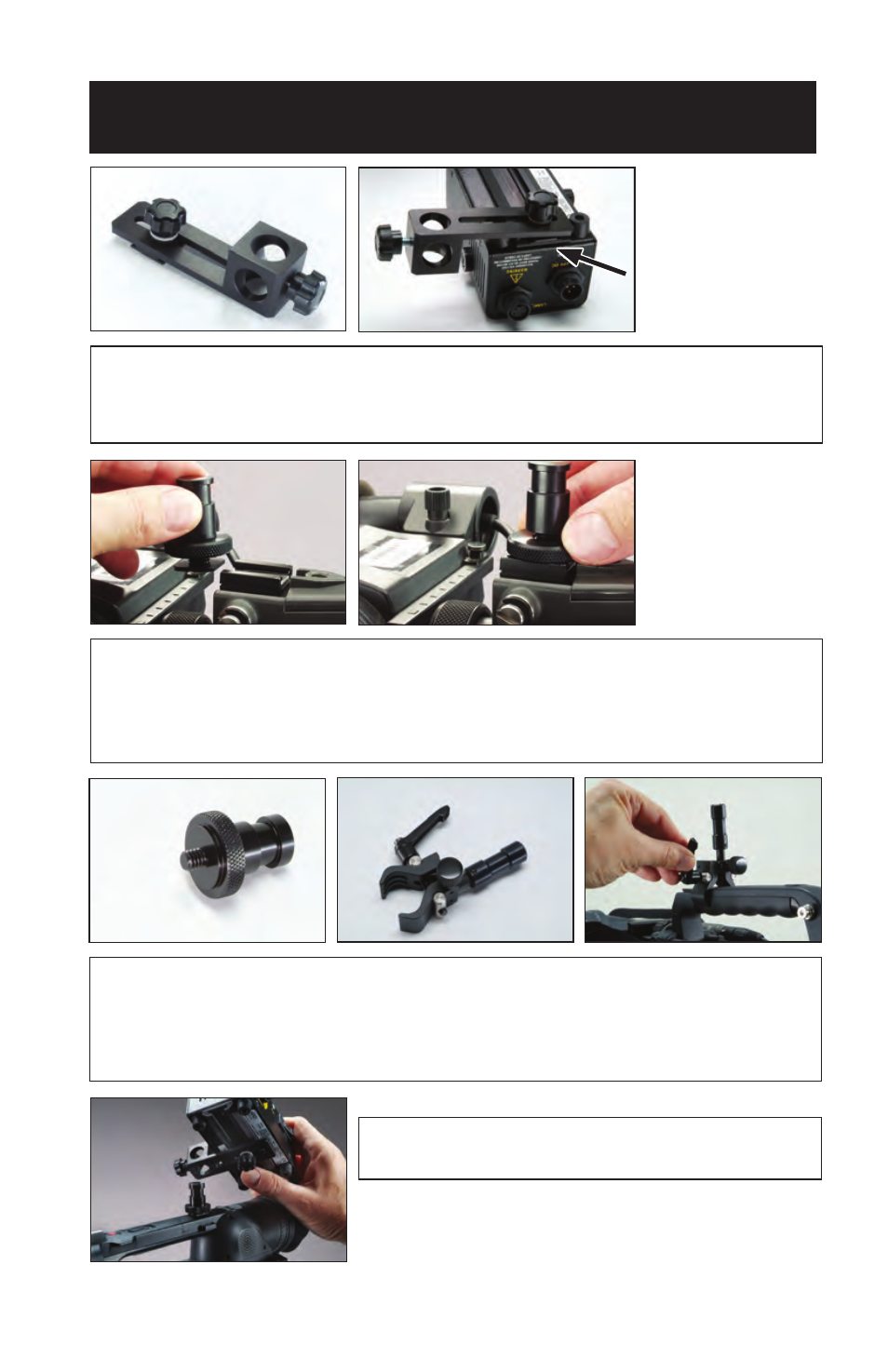

Mounting Ballast

Mounting Bracket,

MTP-141, is required to mount the ballast to a baby pin.

Loosen thumbscrew on the

MTP-141 sufficiently to allow the flange to insert

into the track on the underside of the ballast.

MTP-141

Baby Shoe Adapter,

MTP-141S, is used to mount the Ballast to a camera

equipped with a hot shoe receptacle. Slide the flange of the

MTP-141S into

the hot shoe receptacle on the camera. Lock the pin by screwing down the

thumbscrew.

MTP-141S

An optional Baby Mount w/ ¼” Screw

(MTP-141P) is used to mount the

Kamio Ballast to cameras equipped with a ¼” screw hole instead of a hot

shoe. Another mount option is the Ballast Clamp with Baby Pin (

MTP-141C).

Both can be used with the

MTP-141.

MTP-141P

MTP-141C

Mount the

BAL-149X to the baby pin as shown.
