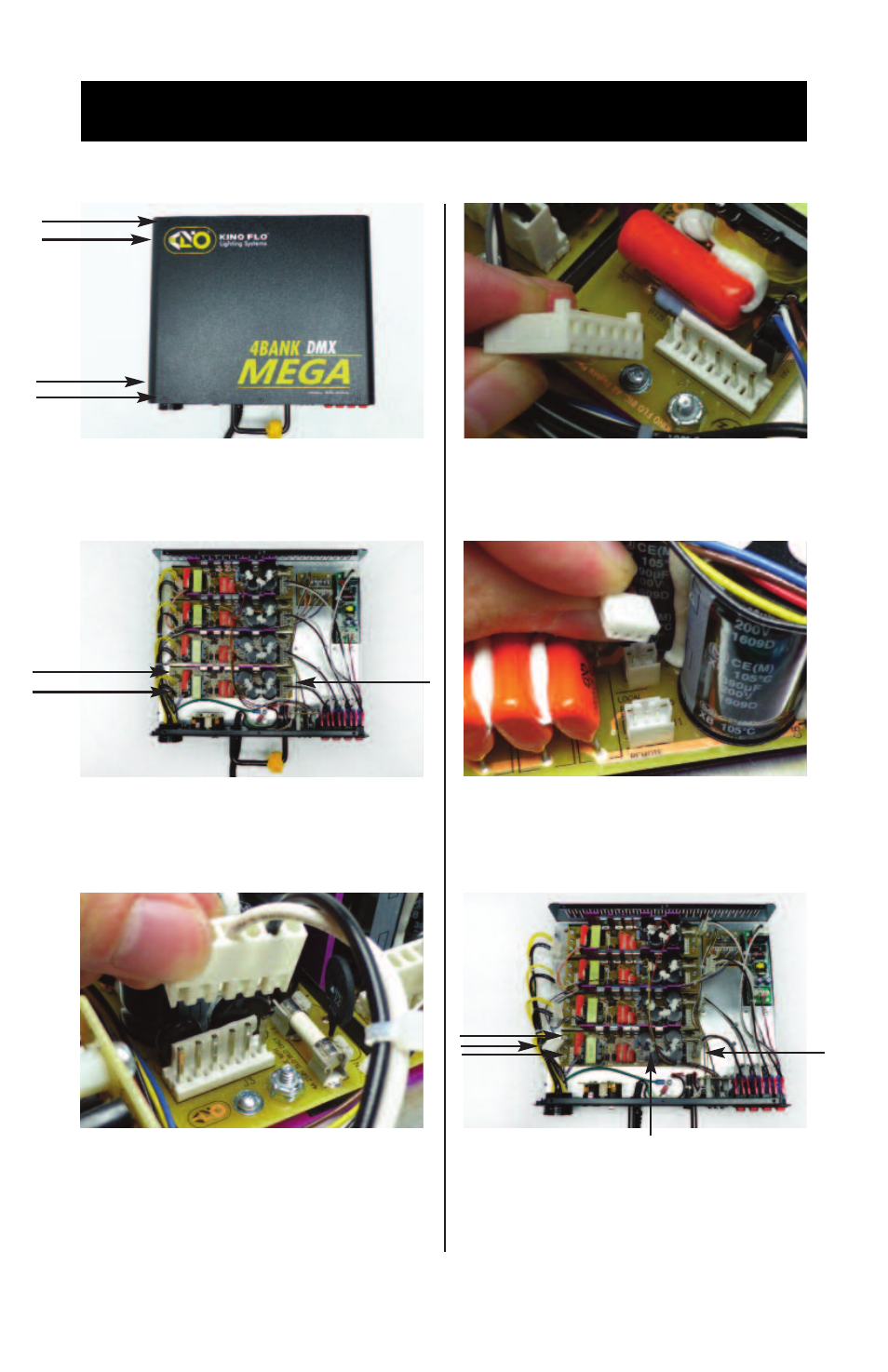

Ballast Board Removal & Installation
1) Remove ten (10) cover screws.
4) Remove lamp output connector.
2) ) Remove three (3) nuts on each
board.
5) Remove HO/Std connector.
3) Remove AC input connector.
6) Install new ballast board,
three (3) nuts, AC input,
lamp output and HO/Std
connectors. Replace cover
with ten (10) cover screws.
3
Mega 4Bank DMX Ballast (BAL-455-M120)is shown for illustration purposes.
