8

EUROPOWER PMH2000

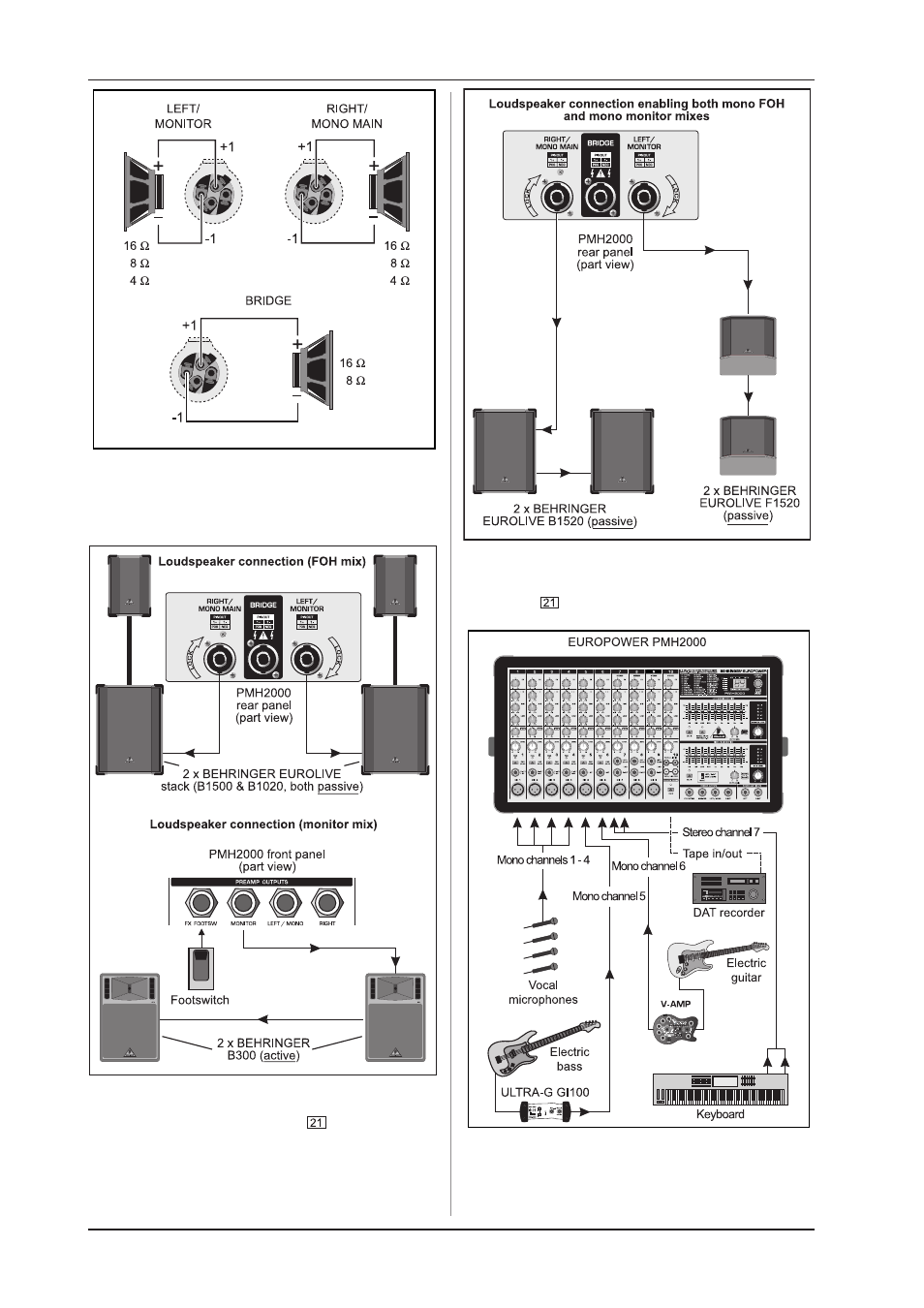

5. WIRING EXAMPLES

Fig. 4.6: PMH2000 loudspeaker connector assignment

5. WIRING EXAMPLES

Fig. 5.1: PMH2000 as stereo amplifier (example)

Please set the MODE switch

to “LEFT/RIGHT”

for this application!

Fig. 5.2: PMH2000 as double mono amplifier (example)

For this application, however, please set the MODE
switch

to “MON/MAIN”!

Fig. 5.3: Standard setup (example)
