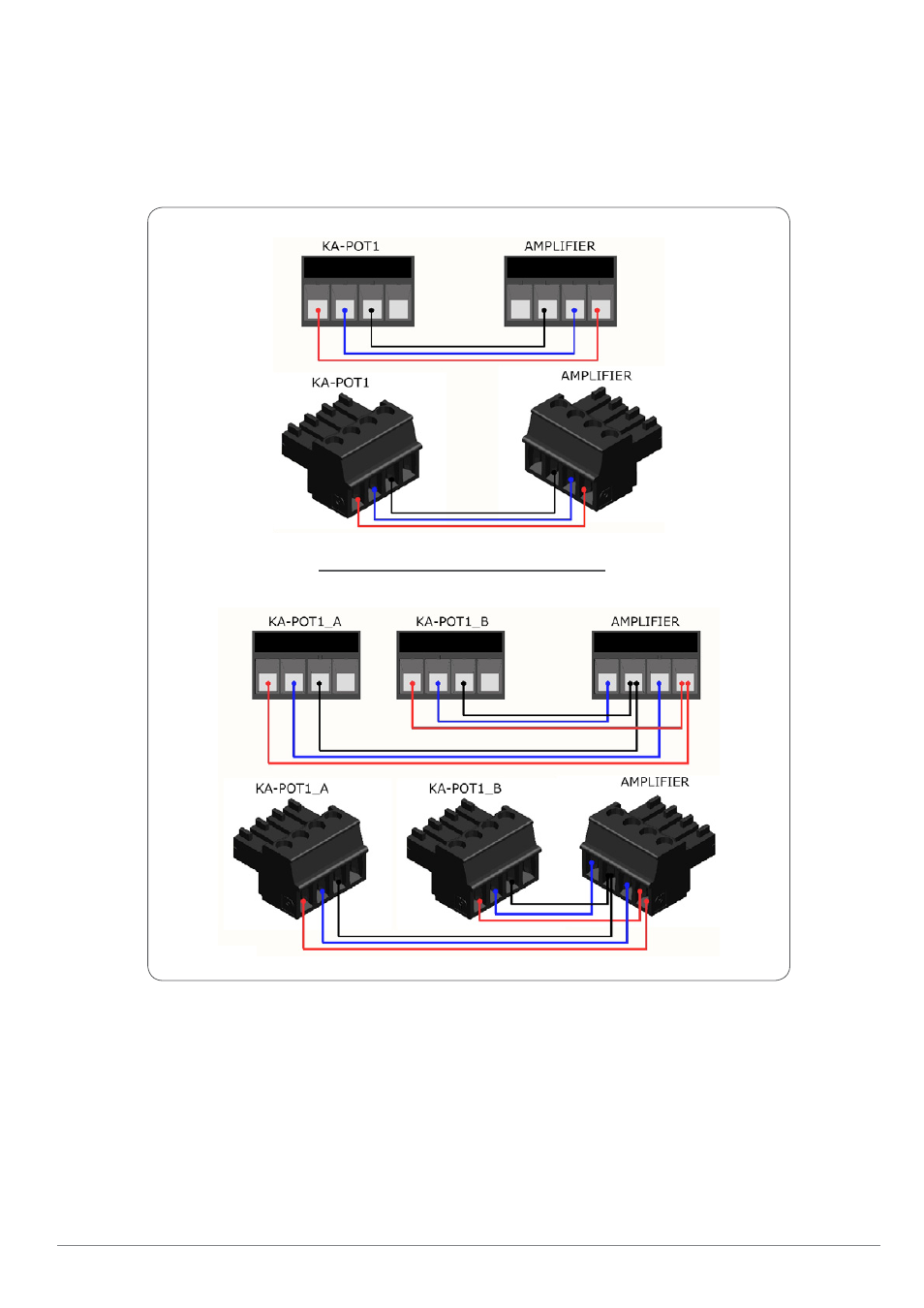

Follow the wiring scheme below to connect the 4-pin connector plugs. Follow the scheme on the
top if you own only one KA-POT1 and the one on the bottom if you own two KA-POT1. Then insert
one plug in the PCB and the other into the GPIO port on the amplifier.
KA-POT1 WIRING
