JK Audio RemoteAmp Blue User Manual
Page 6

6
Connection
1. Connect your headphones to this 1/4” jack.
The 1 watt stereo headphone output gives you
a mix of the XLR line input, 3.5 mm Stereo
Line In and Bluetooth audio.
2. The unbalanced 3.5 mm stereo Earpiece out-
put jack provides a mix of the XLR Line input,
3.5 mm Stereo Line In and Bluetooth audio.
3. Connect the output of your other audio device
to this unbalanced stereo 3.5mm Line In jack.
4. Connect the output of your audio console to
the XLR Line In jack. This input is line level
only and is not suitable for a microphone.
You can use the balanced XLR and unbal-
anced 3.5 mm inputs simultaneously. The Ste-
reo Line In allows recordings to be mixed with
the audio feed from your console and your cell
phone (or laptop) Bluetooth connection.
This headphone amplifier can be connected to
a ClearCom, RTS or Telex 3-pin XLR party line
intercom link so you can monitor the feed, even
while listening to the 3.5 mm stereo input.
11

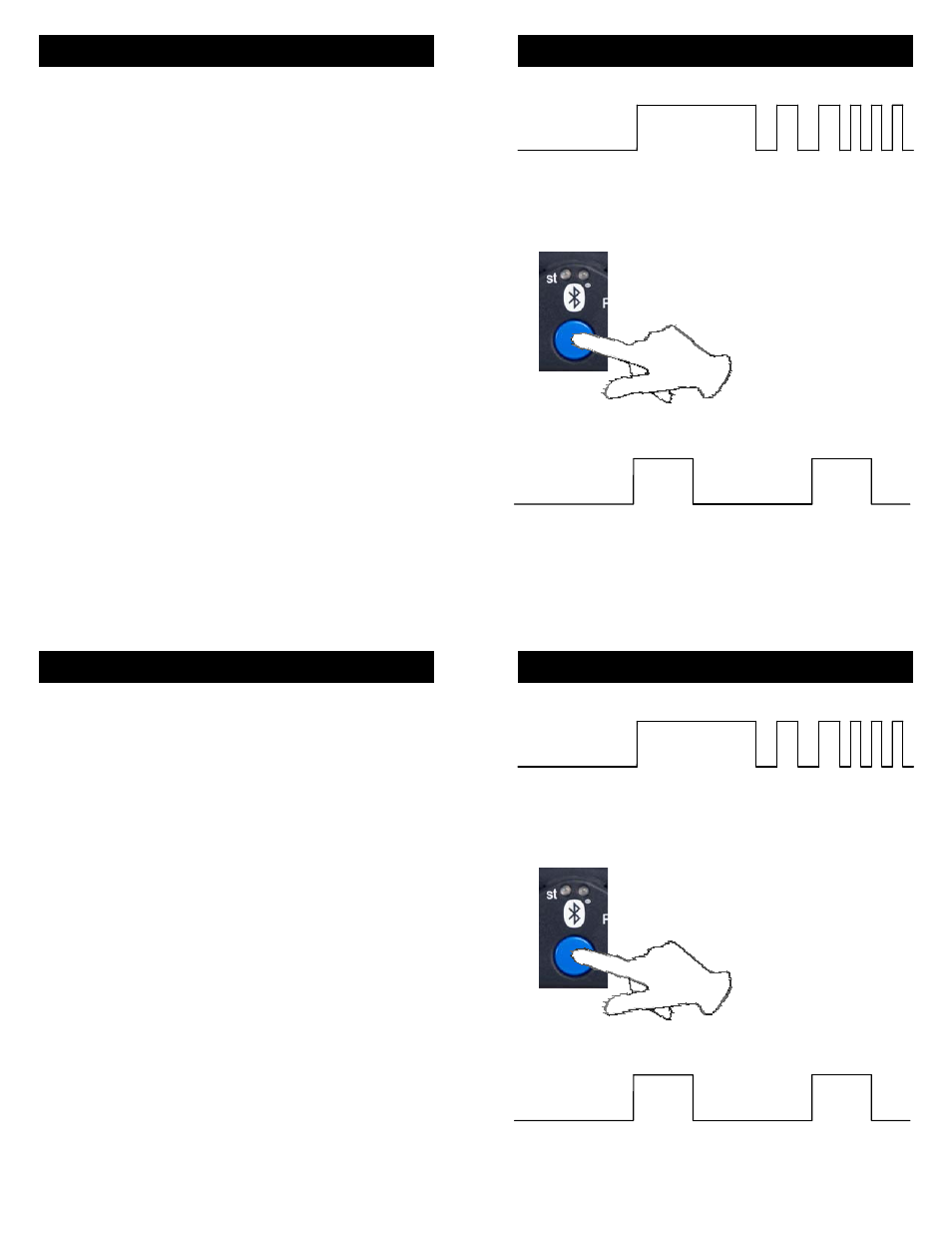

Bluetooth LED pattern after Bonding
Bonded
2 seconds off,
1 second on
Idle Mode
2 sec off,
200 ms on
Initialize
2 sec off,
2 sec on
Bluetooth LED pattern to initiate Bonding
Pairing Mode
100 ms off,
100 ms on
Bluetooth Wireless Technology
Hold Bluetooth MFB in at least 5 sec
to reach Pairing Mode the first time
a new device is connected,
> 2 sec thereafter to easily
connect from Idle Mode
6
Connection
1. Connect your headphones to this 1/4” jack.
The 1 watt stereo headphone output gives you
a mix of the XLR line input, 3.5 mm Stereo
Line In and Bluetooth audio.
2. The unbalanced 3.5 mm stereo Earpiece out-
put jack provides a mix of the XLR Line input,
3.5 mm Stereo Line In and Bluetooth audio.
3. Connect the output of your other audio device
to this unbalanced stereo 3.5mm Line In jack.
4. Connect the output of your audio console to
the XLR Line In jack. This input is line level
only and is not suitable for a microphone.
You can use the balanced XLR and unbal-
anced 3.5 mm inputs simultaneously. The Ste-
reo Line In allows recordings to be mixed with
the audio feed from your console and your cell
phone (or laptop) Bluetooth connection.
This headphone amplifier can be connected to
a ClearCom, RTS or Telex 3-pin XLR party line
intercom link so you can monitor the feed, even
while listening to the 3.5 mm stereo input.
11
Bluetooth LED pattern after Bonding
Bonded
2 seconds off,
1 second on
Idle Mode
2 sec off,
200 ms on
Initialize
2 sec off,
2 sec on
Bluetooth LED pattern to initiate Bonding
Pairing Mode
100 ms off,
100 ms on
Bluetooth Wireless Technology
Hold Bluetooth MFB in at least 5 sec
to reach Pairing Mode the first time
a new device is connected,
> 2 sec thereafter to easily
connect from Idle Mode
