4

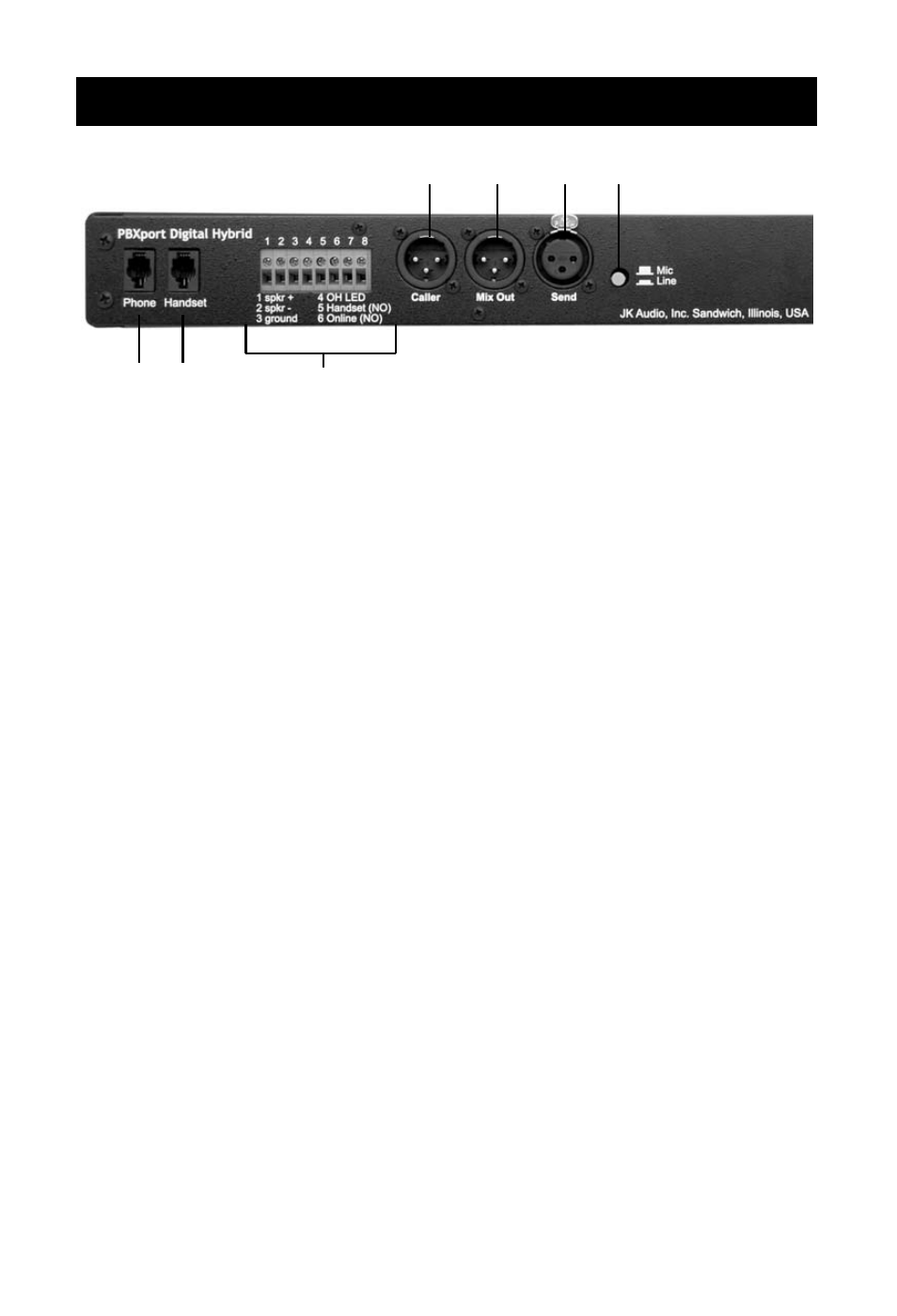

Features—Rear View
20
22
16 17 18 19
21
16. Caller Output - Male balanced XLR output contains caller au-
dio from the far side of the call.
17. Mix Output - Male balanced XLR output contains Caller and/or
Send audio based upon Send>Mixtings.
18. Send Input - Female balanced XLR input for signals going into
the phone line. Mic or line level input. This jack does not pro-
vide phantom power.
19. Mic / Line switch - Sets the front end sensitivity of the Send
XLR input. Set to Mic if you intend to plug a microphone di-
rectly to the Send jack. Set to Line if you are connecting to the
line output or auxiliary output of a mixer or other audio equip-
ment.
20. Rear Panel Phone Jack - Connect the handset jack on your
telephone base to this jack or the front panel phone jack using
the supplied handset jumper cable.
21. Rear Panel Handset Jack - Connect your telephone handset to
this jack or the front panel handset jack.
22. Screw Terminal Block - For speaker connection, remote LED
status connection and remote Online / Handset control.
