MICRO TOL (12/04)
Rev. 2.7

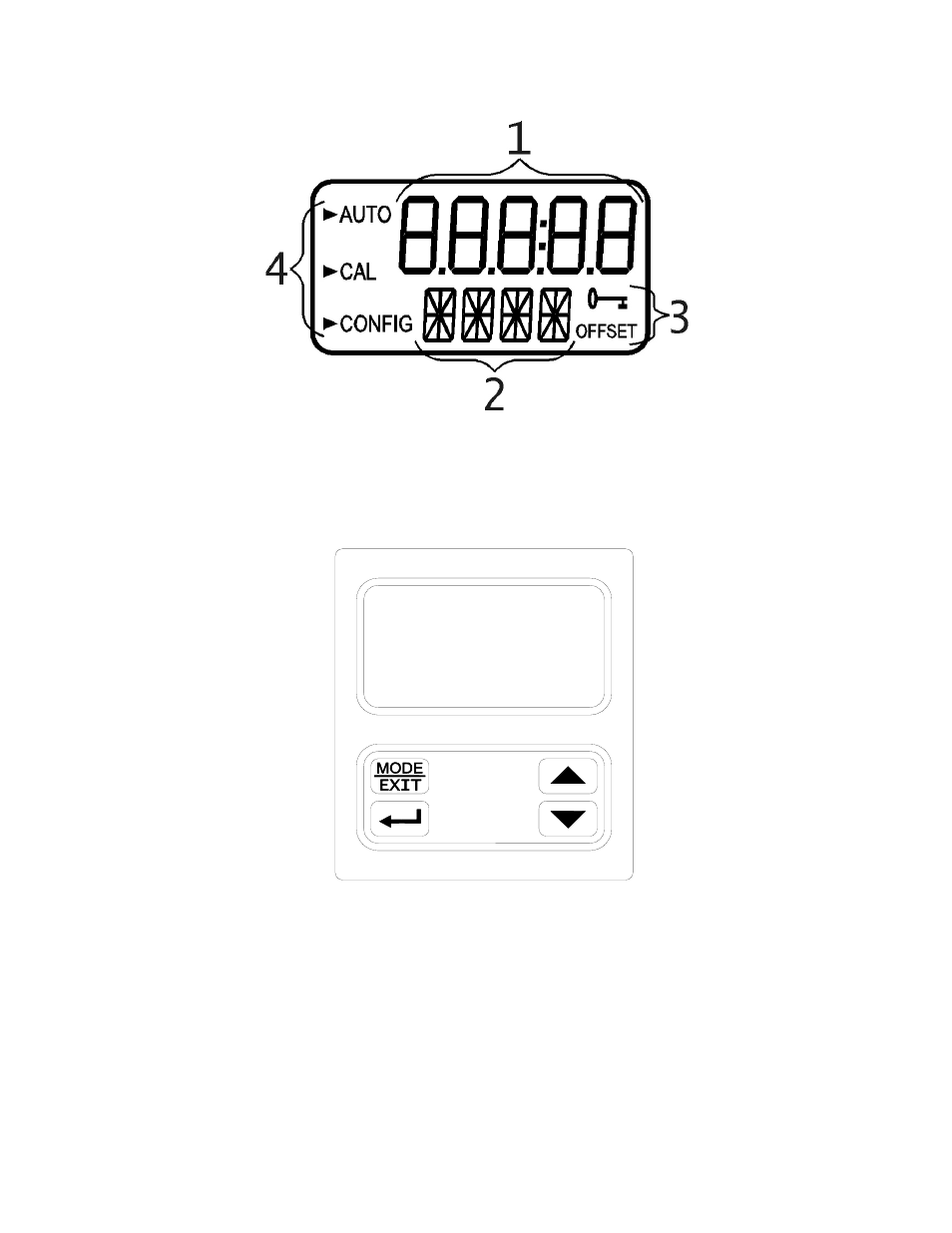

Figure 1 – Display used in the instrument.

All items used on the display are shown in this figure

1.3 The Touch Pad

Figure 2: The Micro TOL touch pad.

Figure 2 illustrates the touch pad. The touch pad has four buttons: MODE/EXIT,

↵, t,

and

u. The MODE/EXIT button is used to cycle between the four operational modes of

the instrument: CAL, CAL OFFSET, CONFIG, and AUTO (Measurement) mode. The

↵ button enters the option (or mode that is highlighted or chosen. The tand u buttons
are used to scroll through lists and to increase or decrease settings.
