73
Variable Speed/Multi-Stage
Equipment Control Module Furnace Heat Pump
O
RVS Cooling O/B W2 W2
Heat Stage 3 (furnace) W/W1 W/W1 W2 *
Heat/Cool Stage 1 Y1 / W2 Y1
Heat/Cool Stage 2 Y/Y2 Y/Y2 Y/Y2
Fan G G
24VAC Hot Heating Rh R R
24VAC Hot Cooling Rc
Dry Contact 1 D1
Dry Contact 2 D2 DHUM
24VAC Common C COM C
Humidify HUM
Outdoor Air Temp OAT
Remote Room Sensor RRS
OAT/RRS Com SRTN
Outdoor Sensor *
Humidifier Solenoid
Valve *
Remote Room
Sensor *
A08134

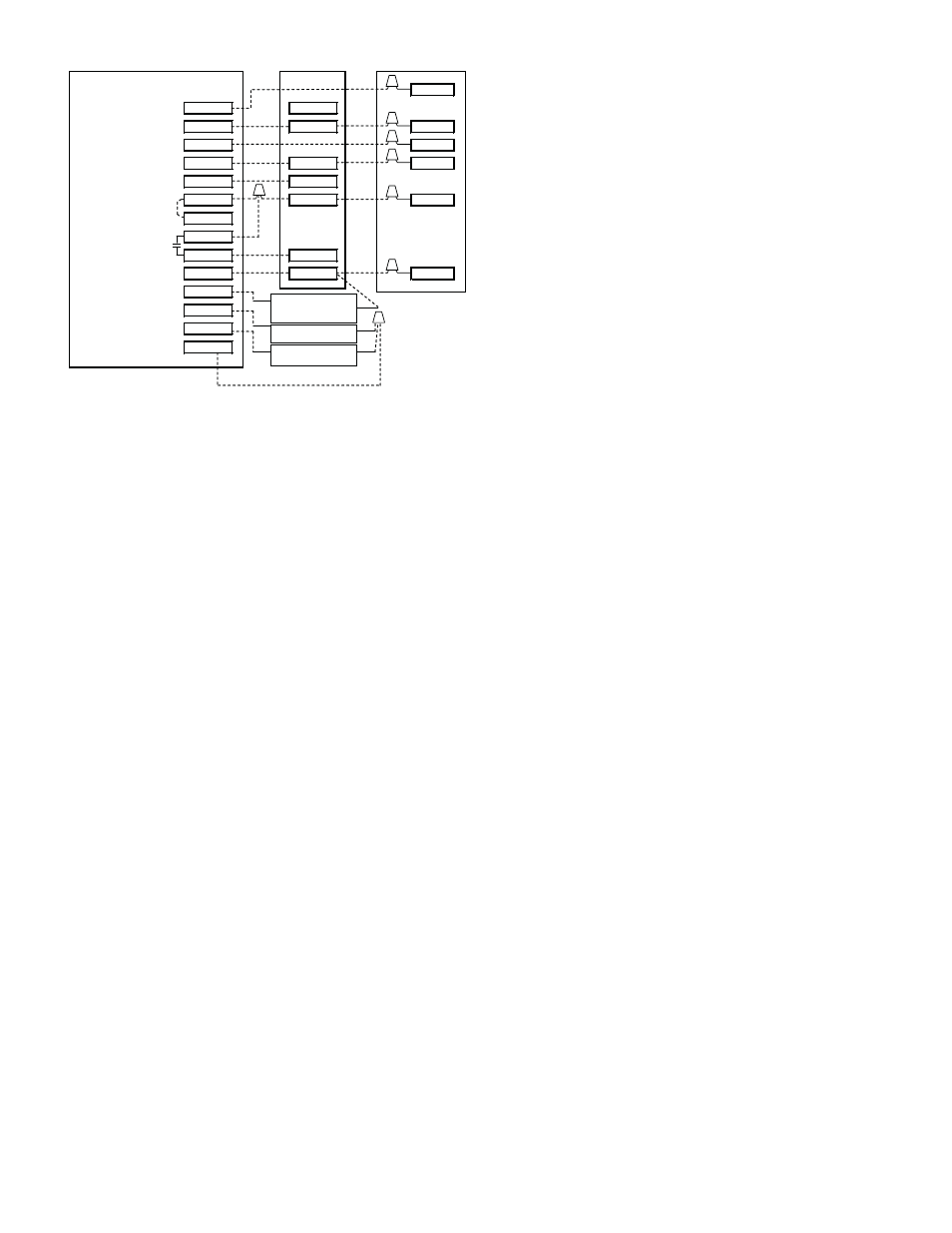

Fig. 29 -- Variable Speed/Multi--Stage Furnace with 2--Stage Heat Pump
* Indicates connection may not be required/available.
