9
CHAPTER 3: Installation
NOTE
Both ends of the T-
connector must be attached
to network cabling. If the
Adapter is at the end of a
network segment, the end of
the T-connector not attached
to the network must have a
50-ohm terminator installed.
3.2.3 LE075A
For the Modular Parallel Adapter for
AUI, refer to Fig. 3-4.
After connecting the connector,
press the slide latch to the left to
lock the connector into place.

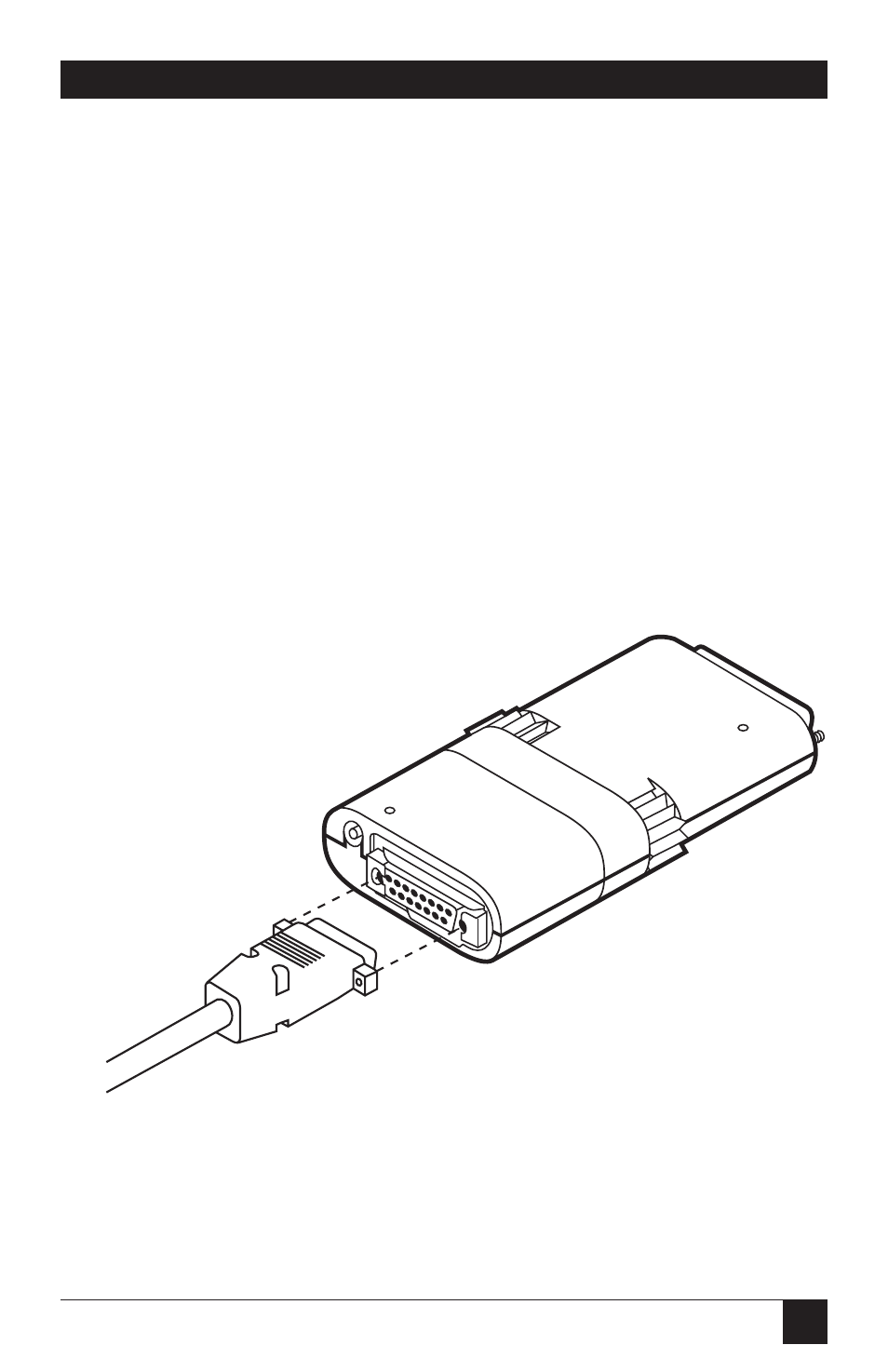

Fig. 3-4. Connecting an AUI Cable to the Media Unit.
NOTE
For use with an external
power supply only. Not to be
used with the SPC!
