FIRST-TIME SETUP
*Not all TVs have the audio outputs shown above. To connect the Sound Bar directly to
your other devices (Blu-ray player, game system, etc.) see your device’s user manual.
DIGITAL (3) AUX (1)
AC IN
120V~∕ 60Hz
60W
OPTICAL (4)
AUX (2)
SUB OUT SERVICE
USB (6)
L
R
1

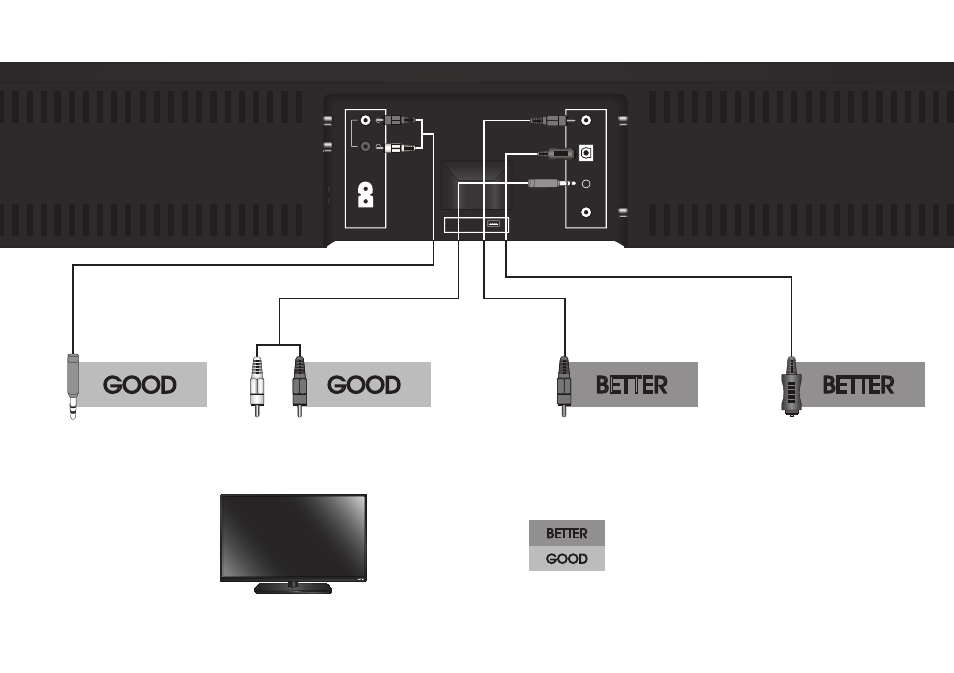

AND CONNECT IT TO YOUR TV
CHOOSE ONE CABLE:
BETTER
GOOD
GOOD GOOD BETTER BETTER
3.5MM TO
RCA CABLE
3.5MM TO
RCA CABLE
DIGITAL COAXIAL
CABLE**
DIGITAL OPTICAL
CABLE**
**When using either of the Digital Inputs, if there is no audio: (A) try setting the TV
output to PCM or (B) Connect directly to your Blu-ray/other source, some TVs do not
pass through digital audio.
Back of Sound Bar
