The Puck RGBA Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC
2. MEET The Puck™ RGBA Flat LED PAR Can
CONTROL FEATURES
• RGBA color mixing via 144 10mm Red/Green/Blue/Amber LEDs
• Variable electronic strobe
• Variable electronic dimmer
• Built-in automated programs via DMX and master/slave
• Built-in sound active programs
• Full RGBA color mixing in standalone and master/slave
• RGBA (4-Channel) and extended (7-Channel) DMX modes
ADDITIONAL FEATURES
• Lightweight and Compact (It kept its New Years’ resolution!)
• 4-Button LED control panel for easy programming
• Light source: 144x 10mm LEDs, 36 each Red/Green/Blue/Amber
• Dual bracket for fl exibility in mounting
• Power outlet for fi xture linking (up to 50 fi xtures)
DMX Quick Reference (7-Channel Mode)
Channel What It Does
1 Dimmer
2 Red Intensity
3 Green Intensity
4 Blue Intensity
5 Amber Intensity
6 Strobe (0-15 off, 16-255 strobe
slow <-> fast)
7 Color Macros (slow <-> fast)
DMX Quick Reference (4-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity
4 Amber Intensity
Page 6
The Puck RGBA Manual Rev. B Copyright (c) 2010 Blizzard Lighting, LLC

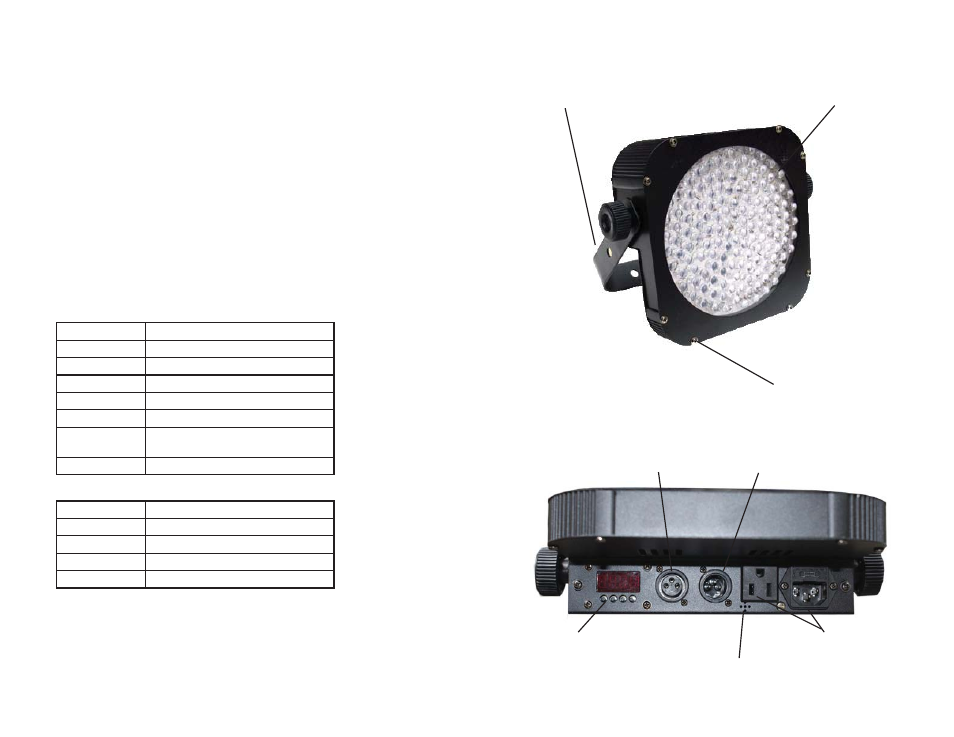

Figure 1: The Puck™ RGBA Pin-Up Picture
High Power
LEDs
Ridiculously thin!
Dual Mounting
Yokes
Figure 2: The Rear Connections
AC Power In/Out
DMX In DMX Out
LED Control Panel
Microphone
