2. MEET The Puck3™ Flat LED PAR Can
CONTROL FEATURES
• Superior color mixing via 9x 3-watt TRI-Color LEDs
• Variable electronic strobe
• Variable electronic dimmer
• Built-in automated programs via DMX and master/slave
• Built-in sound active programs
• Full color mixing in standalone and master/slave
• (6-Channel) and extended (6-Channel) DMX modes
ADDITIONAL FEATURES
• Lightweight and Compact (It kept its New Years’ resolution!)
• 4-Button LED control panel for easy programming
• Light source: 9x 3-watt TRI-Color Edison Edixeon LEDs
• Dual bracket for fl exibility in mounting
• Power outlet for fi xture linking (up to 50 fi xtures)
DMX Quick Reference (6-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity
4 Color Macros (slow <-> fast)
5 Strobe (0-15 off, 16-255 strobe
slow <-> fast)
6 Dimmer
DMX Quick Reference (3-Channel Mode)
Channel What It Does
1 Red Intensity
2 Green Intensity
3 Blue Intensity
Page 6
The Puck 3 Manual Rev. B Copyright (c) 2011 Blizzard Lighting, LLC

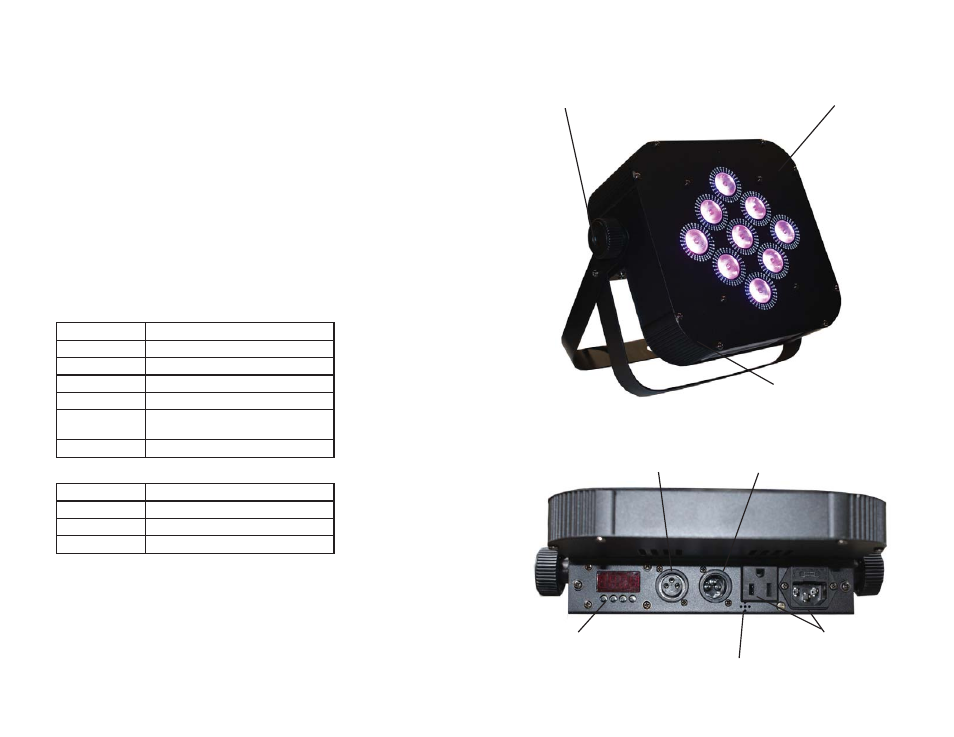

Figure 1: The Puck3™ Pin-Up Picture
Super Fly TRI-Color
LEDs
Flat as a pancake!
Dual Mounting
Yokes
Figure 2: The Rear Connections
AC Power In/Out
DMX In DMX Out
LED Control Panel
Microphone
