Page 7 – Blizzard Lighting EXA SkyBar (Rev A) User Manual
Page 7
Page 7
SkyBar™ EXA Manual Rev. A
© 2014 Blizzard Lighting, LLC

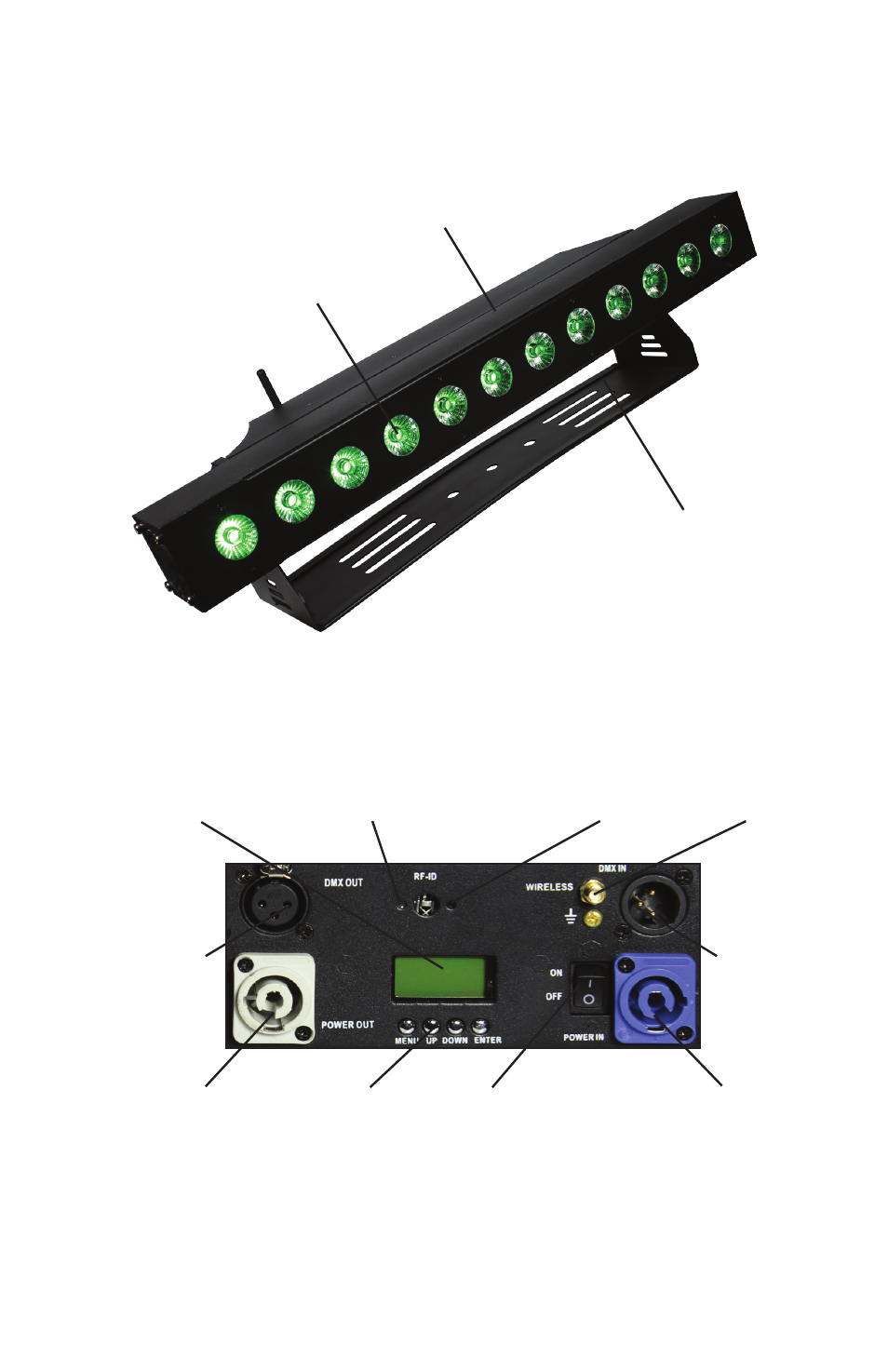

Figure 1: The SkyBar™ EXA Pin-Up Picture
Figure 2: The Rear Connections
AC Power Out
DMX
Out
DMX
In
Menu Buttons
AC Power In
LED Display
High Power 15w 6-in-1
RGBAW+UV LEDs
Mounting Bracket with
Locking Adjustment Knobs
Antenna
Power Switch
RF-ID Indicator
Charge Status LED
Heavy-Duty Aluminum
Enclosure
