fig. 4

Acm5

Acm2

Acm3

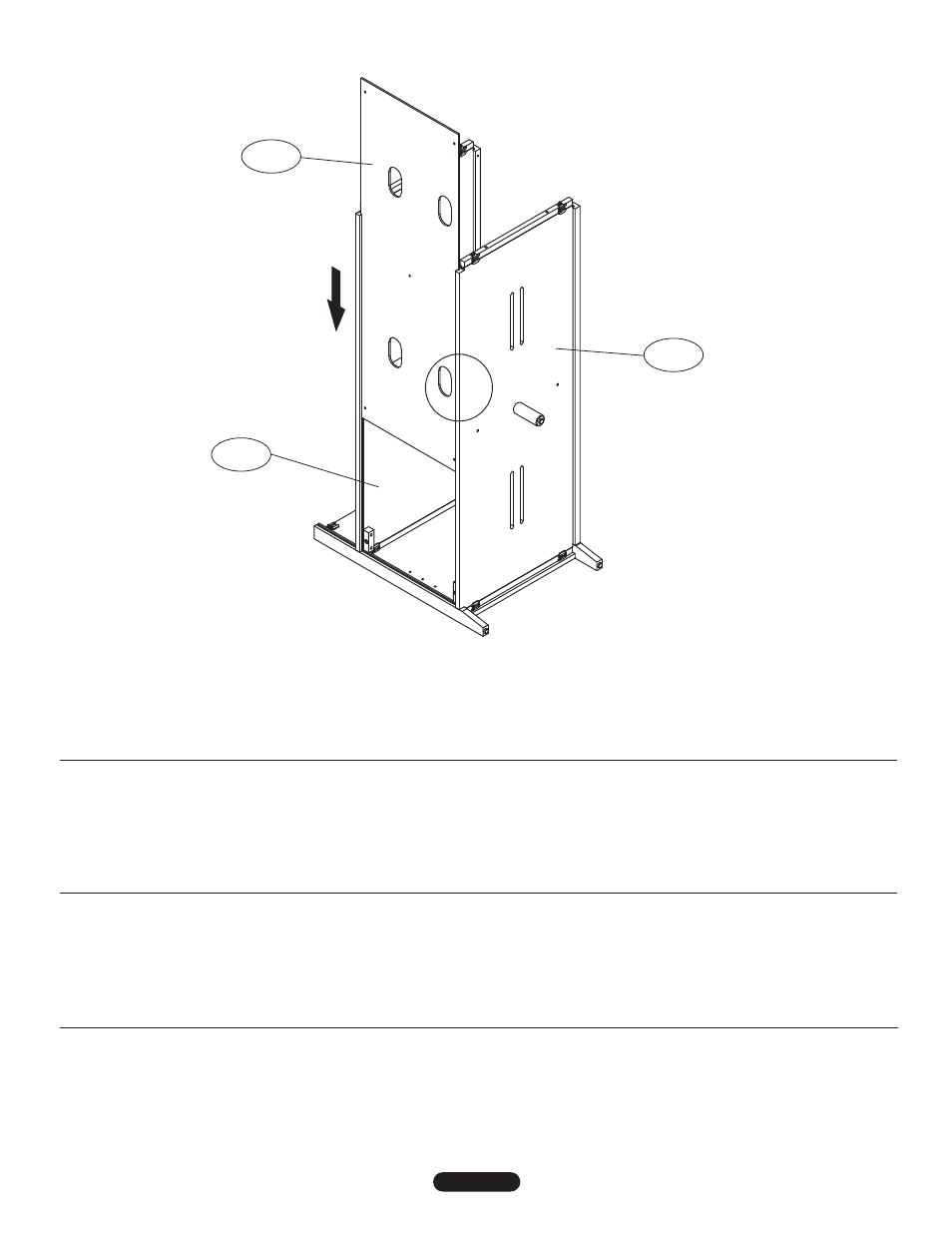

6. turn the cabinet upright with the help of an assistant. Carefully slIDe the Lower Back Panel (ACM5) into the grooves in the

Bottom Panel (ACM3) and the Middle Interior shelf (ACM2). Make sure the Lower Back Panel is completely and properly in

place before continuing.

NOTE (!): Note the position of the Cable Management holes in the Lower Back Panel (ACM5) - make sure they are

positioned toward the bottom of the cabinet.

6.

tourner le meuble à l’endroit avec l’aide d’une autre personne.

enfIler avec précaution le panneau arrière inférieur (ACM5)

dans les rainures du panneau inférieur (ACM3) et du plateau intérieur du milieu (ACM2). S’assurer que le panneau arrière infé-

rieur est correctement et complètement en place avant de poursuivre.

REMARQUE (!) : Noter la position des trous passe-fil dans le panneau arrière inférieur (ACM5) - s’assurer qu’il sont placés

vers le bas.

6.

Con la ayuda de otra persona, GIre el armario a su posición vertical.

DeslIce con cuidado el panel trasero inferior (ACM5) en

las ranuras del panel inferior (ACM3) y del estante interior central (ACM2). Asegúrese de que el panel trasero inferior esté

insertado por completo y correctamente antes de seguir.

NOTA (¡!): Tenga en cuenta la posición de los orificios para la administración de cables en el panel trasero inferior (ACM5) y

asegúrese de que estén ubicados hacia abajo.

6. ПЕРЕВЕРНИТЕ тумбу и поставьте ее на ножки с помощью помощника. ВДВИНЬТЕ нижнюю заднюю панель (АСМ5) в

канавки на нижней панели (АСМ3) и на средней внутренней полке (АСМ2). Прежде чем продолжать, убедитесь, что

нижняя задняя панель установлена надлежащим образом.

ПРИМЕЧАНИЕ (!). Обратите внимание на положение отверстий системы укладки кабелей на нижней задней

панели (АСМ5) – убедитесь, что они «смотрят вниз».

!
