Step 4:
Allow the spotlight to charge for at least 8 hours. Do not allow to
charge more than 12 hours.
NNNNooootttteeee:::: LED indicator on base of handle turns off automatically when battery
is fully charged.
Step 5:
Remove spotlight from the charger before operating.
SSSSeeeeeeee cccchhhhaaaarrrrtttt ffffoooorrrr rrrreeeeccccoooommmmmmmmeeeennnnddddeeeedddd cccchhhhaaaarrrrggggeeee ttttiiiimmmmeeeessss....
3

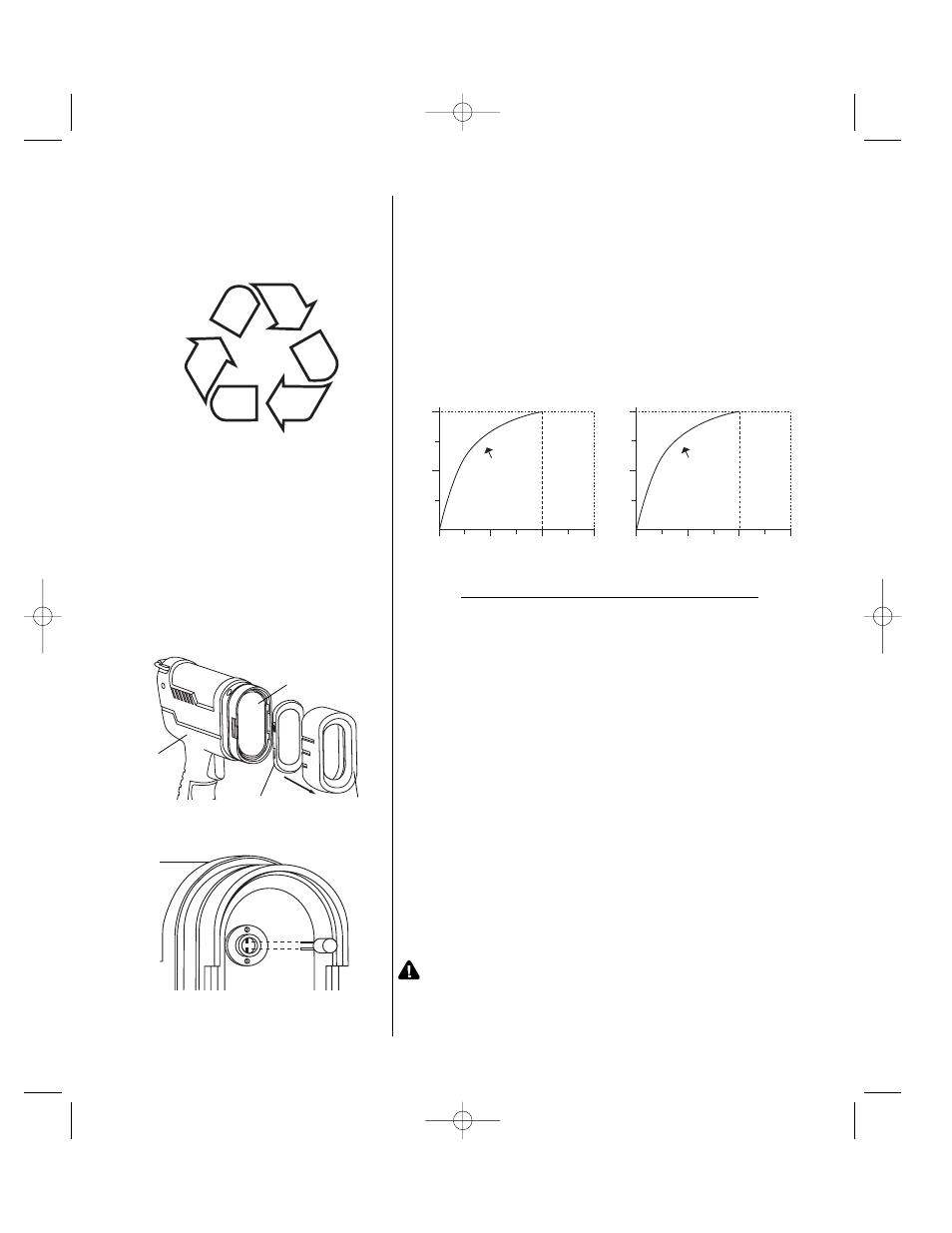

Charge Times
Charge time is dependent on usage of the
product. See chart below for recommended charge time.
Glass
Retainer
Rubber
Cap
To Replace Bulb Only use Brinkmann xenon bulb that is designed for the L.E.D./Xenon
spotlight as a replacement. Use of any other bulb may result in poor
performance and may damage your spotlight.
NOTE:
Handling the bulb can leave oil from your fingers on the bulb. To
extend the life of the new bulb and maximize brightness, gently
clean off bulb with soft cloth or tissue. Make sure the reflector
does not touch or bend the bulb while replacing spotlight head.
Step 1:
Disconnect spotlight from charger.
Step 2:
Remove front rubber cap from barrel of spotlight.
Step 3:
Pinch the wings of the glass retainer together and lift as illustrated.
Step 4:
Pull glass and reflector away from rear housing.
Step 5:
Pull old bulb straight out of bulb holder.
Step 6:
Make certain that "legs" on new bulb are straight. Insert "legs"
into the two holes in the bulb holder.
Step 7:
Gently push bulb straight in until fully seated and centered.
Step 8:
To reassemble, place the glass and reflector on the rear housing.
Insert the glass retainer into the rear housing.
Step 9:
Replace rubber cap.
WARNING:
Do not touch the lamps when light is on or if it was recently
on. The lamps will be hot and could cause serious burns.
Glass &
Reflector
Rear
Housing
40
4 8 12
85
40
4 8 12
80
Battery Charge Battery Charge
CHARGE TIME (Hours)
USAGE (Hours)
CHARGE TIME (Hours)
XENON MODE L.E.D. MODE
USAGE (Minutes)
Contains lead-acid (Pb)
batteries. Batteries must
be recycled or disposed of
properly.
