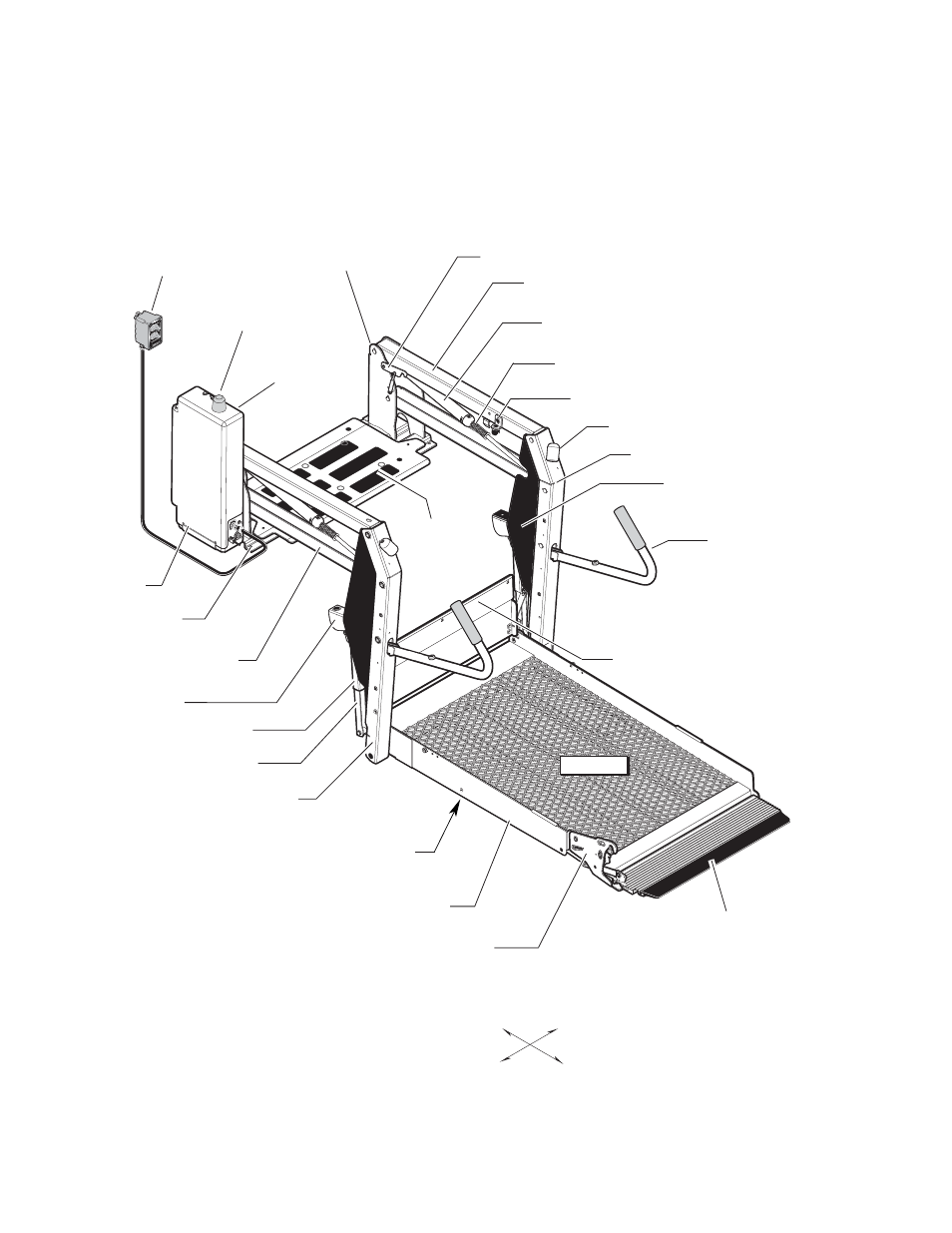

Lift Terminology
UP
DOWN
328
19
FOLD
UN
FOL
D
328
20
Hand-Held
Pendant
Control
Top Parallel Arms (2)
Adjustable Quiet-Ride Stow Blocks (2)
Main Cylinders (2)
Vertical Arm Covers (4)
Opposite Pump Side Vertical Arm
Handrails (2)
Outer Barrier Cylinder
(not visible - underside of platform)
Outer Barrier
(Automatic Outboard Roll Stop)
Saddle (2)
Lower Fold Arm (2)
Pump Side Vertical Arm
Bottom Parallel Arm (2)
Platform Lights
Outboard
Right
Lift-Tite
™
Latches (2)
Unfold Assist Compression Springs (2)
Outer Barrier Latch
Platform Side Plates (2)
Platform
Left
Inboard
Towers (2)
Threshold
Warning
Plate
Audible
Threshold
Warning
(not visible)
Visual
Threshold
Warning
Inner Roll Stop
Pump
Module
(Rear)
Base
Plate
Upper Fold Arm (2)
