Front Panel

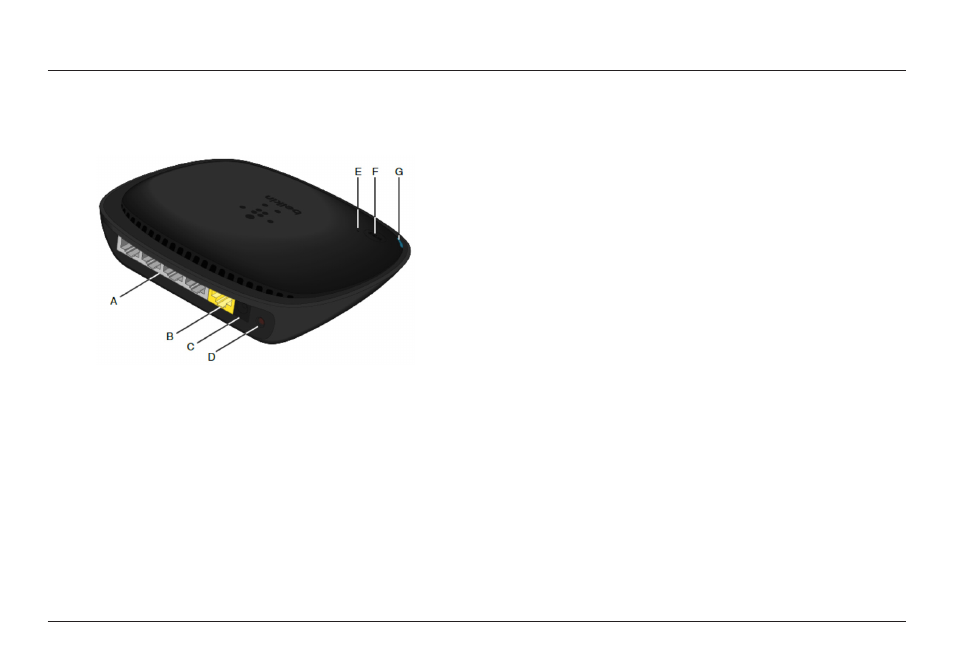

GETTING TO KNOW YOUR ROUTER

A) Wired (LAN) Connectors

Connect computers and other wired network devices

to these ports using Ethernet cables.

B) Modem (WAN) Connector

Connect your modem to this port using an Ethernet cable.

C) Power Connector

Connect the included power supply to this jack.

D) Reset Button

This button is used to restart your Router in rare cases when it

functions incorrectly. Resetting the Router will preserve your settings.

This button may also be used to restore the factory default settings.

Please see the Troubleshooting section for more information.

E) Wi-Fi Protected Setup (WPS) Light

The small light near the WPS button shows what is happening

while you are using WPS to establish a connection.

Off:

Idle

Blinking Blue:

The Router is listening for a WPS-

enabled computer or other device.

Solid Blue:

The Router has made a secure

connection with the computer or other device.

Amber:

A connection was not created.
