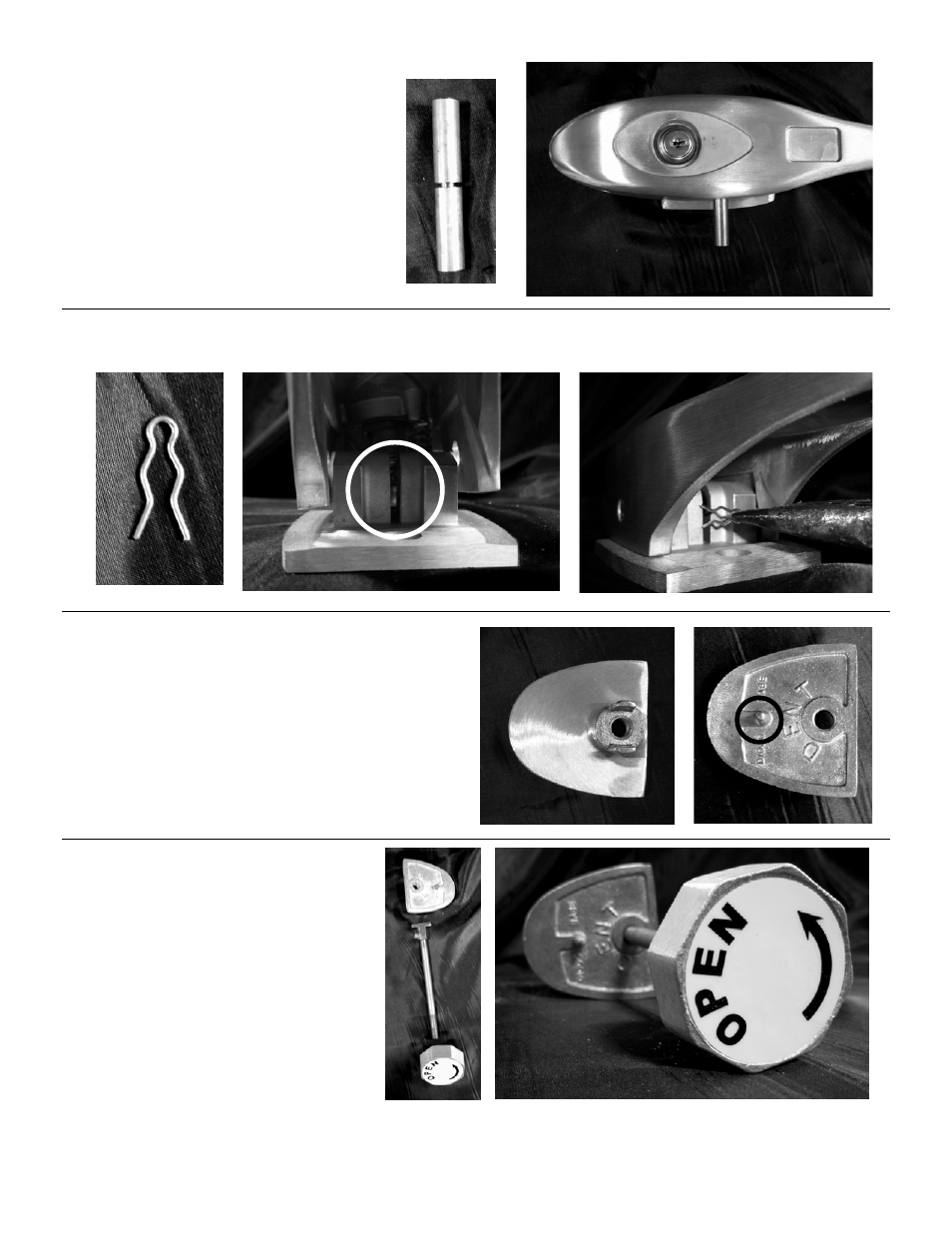

4. Holding handle down securely, inset
handle pin through hole of handle
and base. Push or use hammer to tap
pin lightly through holes until groove
of pin is lined up with center slot of
base.
5. Insert clip through slot of base on to groove of pin using needle nose pliers.
6. With door open, mount strike on jamb, lining up
small boss with small hole. At the same time,
push inside release rod through bask of inside
jamb hole, through the wall until it engages
threaded hold in back of strike.
7. Turn knob of inside release clockwise
until tight.
