EUROPOWER PMH660M/PMH880S
4. INSTALLATION

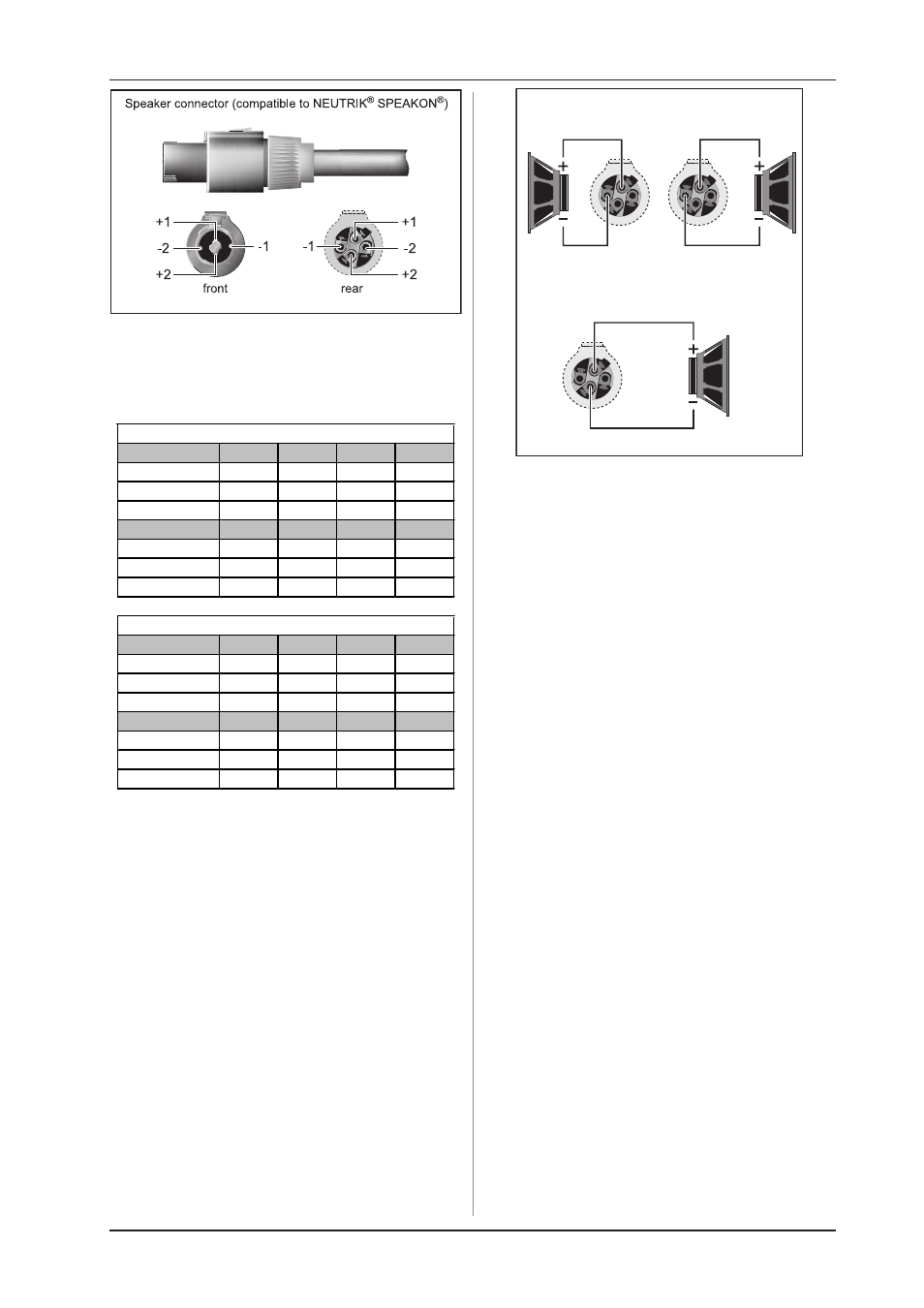

Fig. 4.6: Loudspeaker connector
Please be sure to only use commercial SPEAKON ® cables (type
NL4FC) for connecting your loudspeakers to the mixer. Please
check the pin connections of your loudspeakers and cables
depending on the EUROPOWER speaker output you choose.
PVUQVUÃ6 1+ 1- 2+ 2-
H6DIÃG POS NEG - -
HPI POS NEG - -
PVUQVUÃ7 - - POS NEG
PVUQVUÃ7 1+ 1- 2+ 2-
H6DIÃS POS NEG - -
HPIP POS NEG - -
7SD9B@ POS - NEG -
PVUQVUÃ6 1+ 1- 2+ 2-
H6DIÃHPIP POS NEG - -
HPI POS NEG - -
7SD9B@ - - - -
PVUQVUÃ7 1+ 1- 2+ 2-
H6DIÃHPIP POS NEG - -
H6DI POS NEG - -
7SD9B@ POS - NEG -
@VSPQPX@SÃQHC''T
@VSPQPX@SÃQHC%%H
Tab. 4.1: Pin connections of loudspeaker connectors
OUTPUT B OUTPUT A
+1 +1
-1 -1
8 Ω
4 Ω
8 Ω
4 Ω
BRIDGE
16 Ω
8 Ω
+1
+2
Fig. 4.7: SPEAKON ® connector assignment
