Hhp side – B&D Mfg XT User Manual

Page 4

Electrical: 1/60/230V

Insulation: Foam Cabinet Approx. Volume of Fluid: 8.5 gal.

HP = 1 1/4" FPT LOOP = 1 1/4" FPT

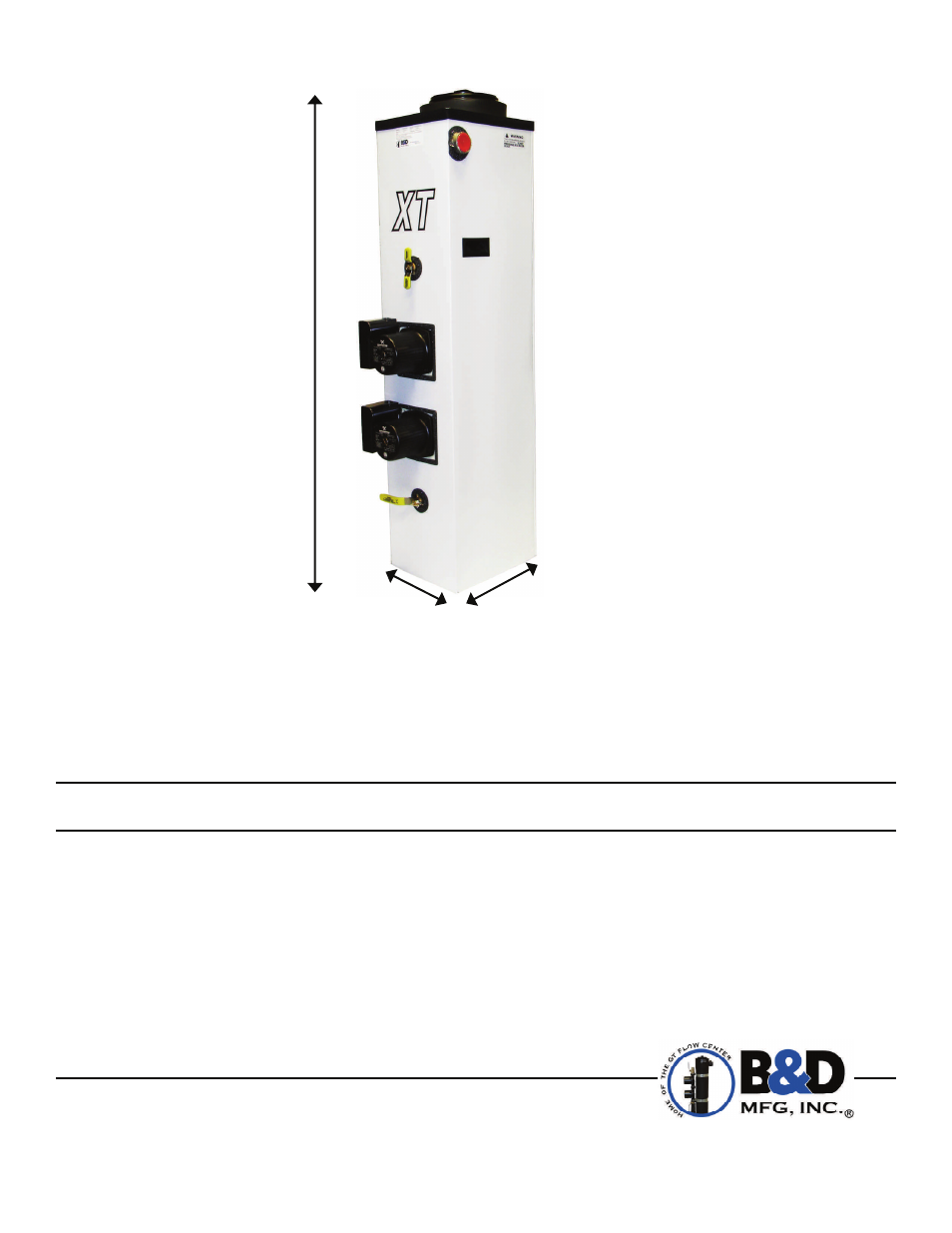

H = 50 3/8” W =10 3/8”

D = 12 1/2"

XT Flow Center is equipped with Grundfos 43-100

CAUTION: For proper operation, water must be added as air is eliminated. The amount of water will be in proportion to
the amount of air eliminated.

3. After all air has been eliminated and full flow established, close valve no. 2 to place the system back into

full

operation.

SYSTEM READY

The complete system is now operational and ready for testing. Use the flow meter tool (Part 1-WFT40) which slips over

the inlet pipe inside the flow center. Read the actual flow rate being pumped through the flow center (for internal

headers only). By closing all the loop valves but one pair, an actual flow rate can be read on the meter for each ground

loop. This will indicate that all loops are flowing properly. If any loop shows a significant reduction of flow an obstruction
may be present in the loop. Remove flow meter from the flow center canister and allow the pumps to run continuously

for 24 hours. The flow center will continue to eliminate any small air bubbles that remain in the system.

HP Side

*Loop Side On

Back Of Unit

MODEL 2-230XT-SS

Weight: 87 lb.

B&D Mfg, Inc
901 9th Street
Scranton, IA 51462
Phone (712) 652-3424
Fax (712) 652-3388
www.bdmfginc.com

Patent No. 5,244,037

08-2013
