INSTALLATION

Before installing the QT

–MAXX Flow Center, check the flow charts and loop table against system flow and pressure drop

characteristics to be sure the correct flow center is selected for the system. A one-pump flow center can accommodate

flow for 3 1/2-ton units and smaller. A two-pump flow center can accommodate flow for 3 1/2- through 6-ton units.

(See Fig. 1) To ensure adequate flow, the selection must be made based on your specific system design.

The flow center must be located between the heat pump and the ground source system heat exchanger. Location should

be selected on the basis of ease of installation and future service. The flow center is used for filling, flushing, air

elimination, adding anti-freeze and operating the system. This flow center should never be pressurized.

The recommended piping schematic is usable with all types of closed-loop, ground source heat pump systems, vertical

bore holes, horizontal loops, slinky, outside headers or inside headers. This recommended method allows for isolating
the heat pump or the loop field for separate flushing and purging. Additionally, the flow through the loops can be

reversed, which may be required when using external headers. Make sure to install the Grundfos Sensors. (One on

the supply and one the return side of the heat pump) Refer to Fig. 2 or 3 for the location of sensors.

NOTE: The QT

–MAXX Flow Centers are designed to work with only one heat pump per loop field. More than

one QT

–MAXX Flow Center on a common loop field will not work properly. Call B&D Mfg., Inc. for

information on equipment designed for multiple heat pumps. Swivel nuts should be hand tight only

and a quarter of a turn with a wrench if needed.

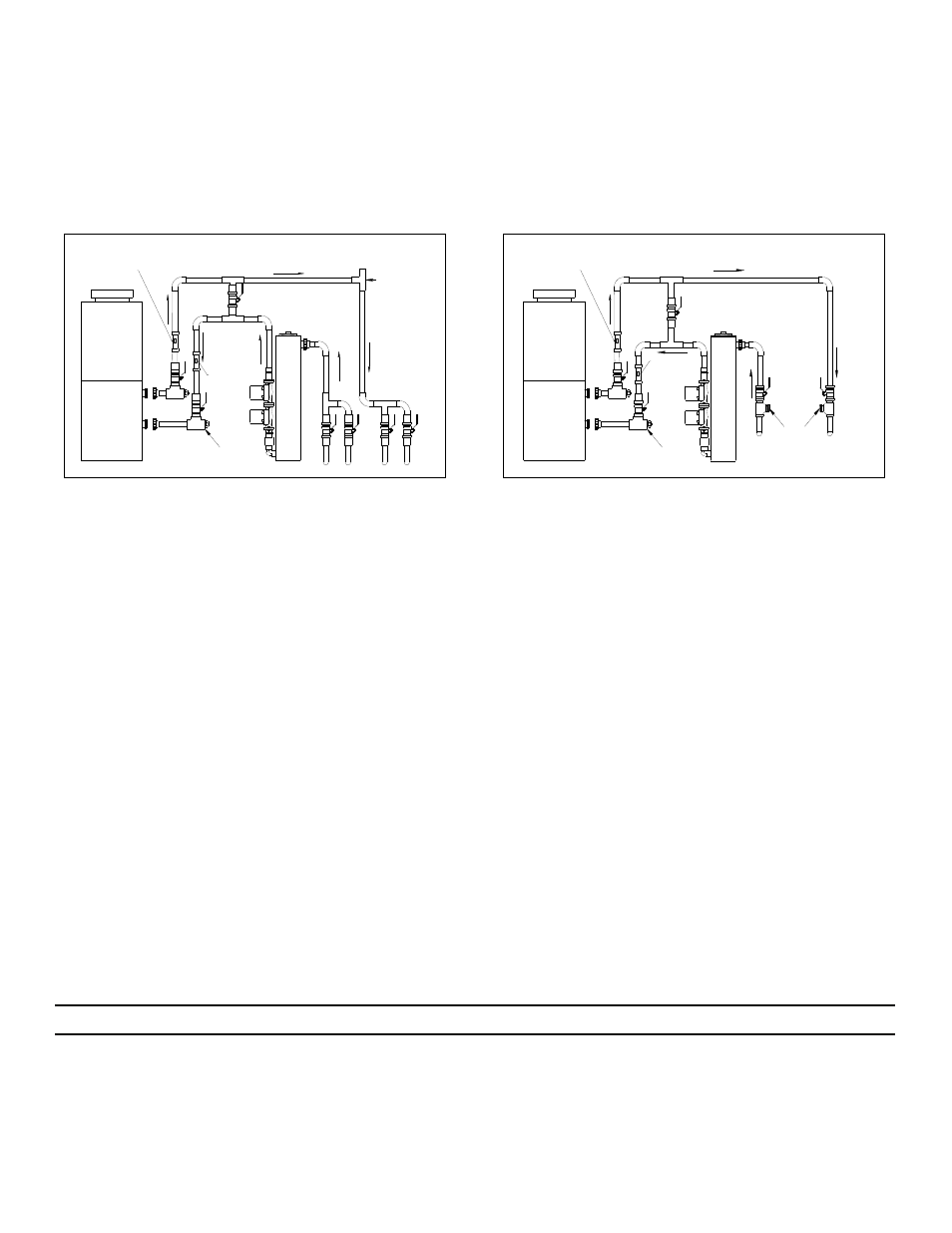

Fig. 2 Illustrates a recommended piping schematic that can be utilized when an internal header is used and separate

purging of the heat pump and the ground loop is not required.

It is recommended that a tee with a threaded plug is located between the heat pump and the ground loop. This

plug allows the air to be vented from the system piping and will help remove air from the system during start up.

NOTE: Loops should not contain any dirt or debris prior to connecting to the flow center.

Fig. 3 Illustrates a recommended piping schematic for a system with underground headers.

Piping is similar for either schematic with the exception of Fig. 2 showing all earth loops penetrating the
mechanical area of the interior wall. Provide ball valves and P/T ports where indicated. Ball valves shall be the

same as pipe size or greater. The flow center should be fastened to the wall with the bracket provided and all

piping should be adequately supported. All piping shall be properly sized for the flow rate (GPM) required by the

system. Reduce pipe size only at flow center and heat pump as necessary to make connections.

PROCEDURE 1—FILL AND FLUSH A NEW SYSTEM

On systems where the ground loop has been filled and flushed by the loop installer, skip to Procedure 3.

Ensure that all piping is installed according to one of the piping schematics.

NOTE: Incorrect piping may not eliminate the air pockets.

1. Open the top of the canister and fill with clean potable water.

P/T Plug

Heat Pump

Connect to

WATER OUT

WATER IN

"T" With
threaded
plug used
for bleeding
air

By-Pass Valve

GRUNDFOS

SENSOR

GRUNDFOS

SENSOR

Heat Pump

Connect to

Flush Tee's

for

Outside Header

WATER OUT

WATER IN

By-Pass Valve

P/T Plug

GRUNDFOS

SENSOR

GRUNDFOS

SENSOR

Fig. 2.

Recommended Piping Schematic For

Maximum Flexibility (Required With

Internal Headers)

Fig. 3.

Recommended Schematic (For Use with

Underground Headers; Flush Cart
Required)
