Quick Setup

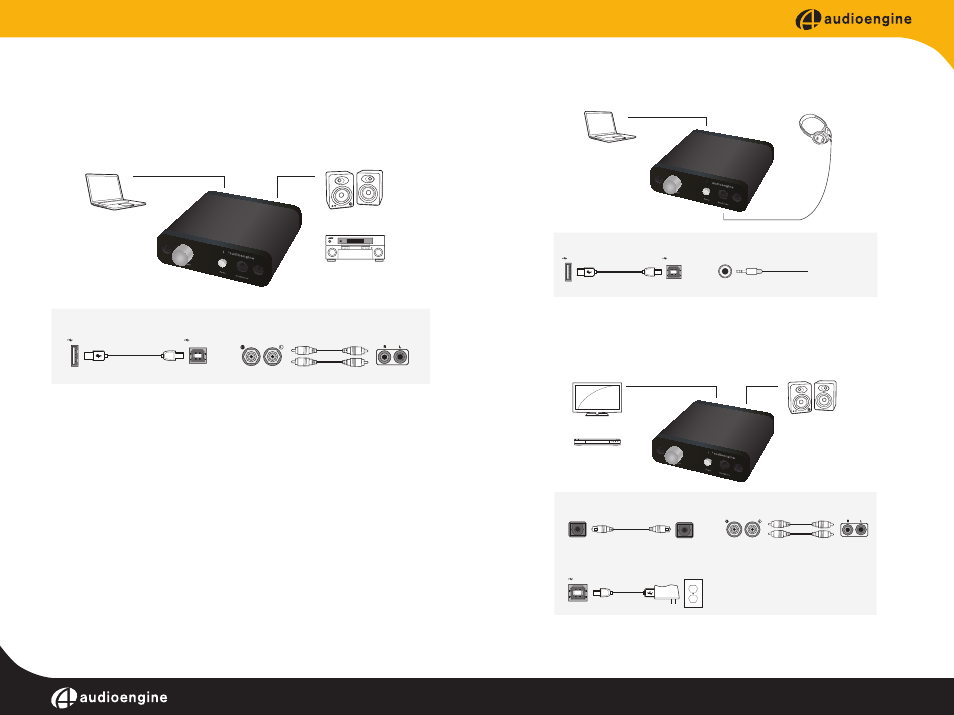

The following diagrams show the most common configurations for D1
Setup.
USB from your computer
Step 1 -- connect the D1 to your computer USB port.
For PC, the D1 should be recognized automatically.
For Mac, under System Preferences/Sound, select “Audioengine D1”
Step 2 –- connect the analog output of your D1 to any audio input of
your active speakers, stereo, etc.
For advanced setup tips visit: audioengineusa.com
Headphones
Optical Source
D1
Computer
A5+ Powered Speakers
AV Receiver
OR
➊
➋
Audioengine D1 - Config A
Analog Output
Analog Input
D1 DAC
A5+ or AV Receiver
Analog Audio Output
➋
Computer
D1 DAC
USB Audio Input
➊
USB Input
USB
➋
➋
D1
Computer
Headphones
Headphone Output
Headphones
➊
➋
Audioengine D1 - Config B
Computer
D1 DAC
USB Audio Input
➊
USB Input
D1 DAC
USB
Headphone
OR
A5+ Powered Speakers
➋
D1
TV
Blu-Ray/DVD/CD Player
➊
➌
External AC Power
➌
USB Input
D1 Input
Power Supply*
*USB AC power supply sold separately
Audioengine D1 - Config C
Analog Output
Analog Input
D1 DAC
A5+ or AV Receiver
Analog Audio Output
➋
Optical Audio Input
➊
Optical Output
Optical Input
TV/Blu-Ray/DVD
D1 DAC
