Getting to know your camera

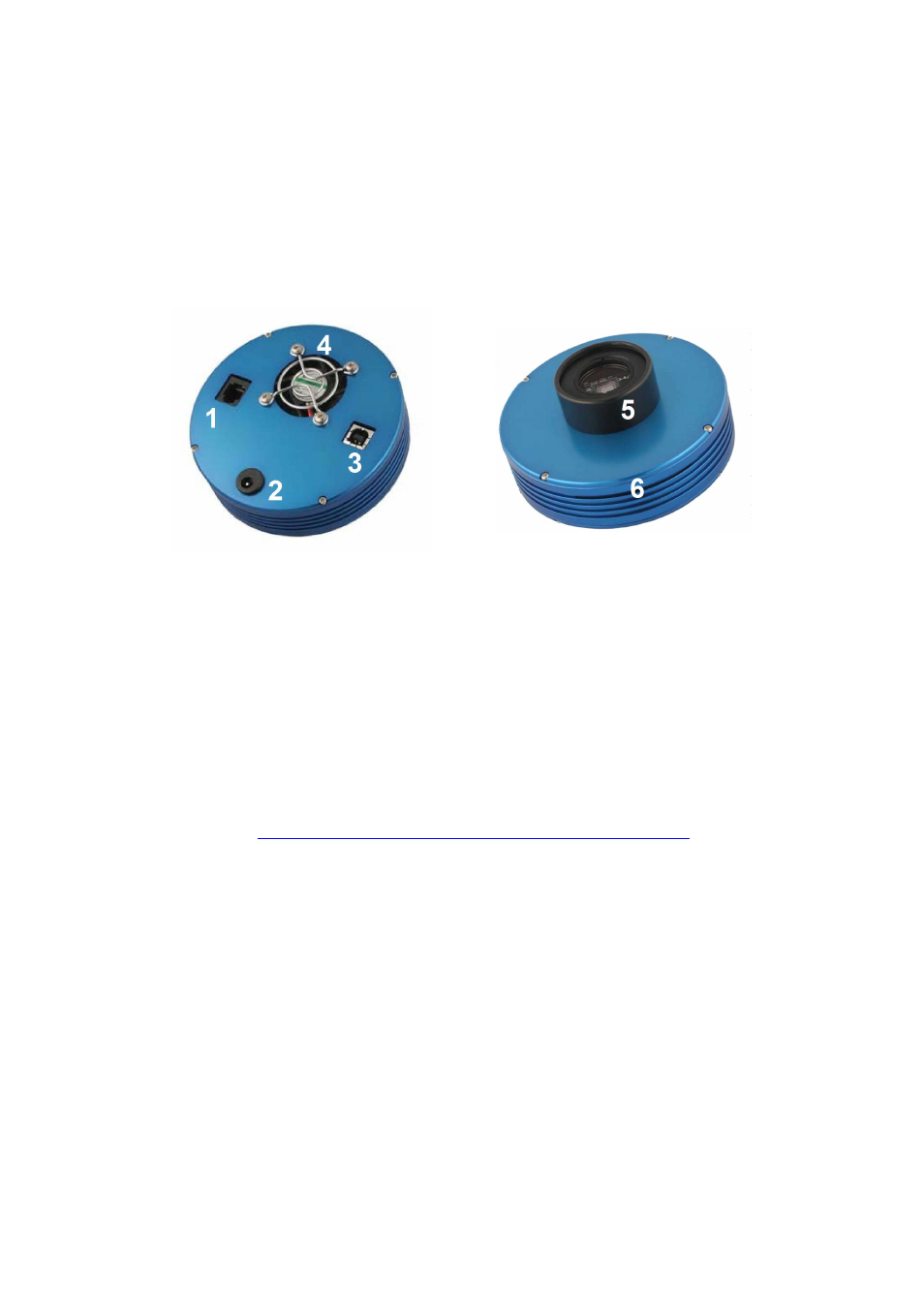

3.1 Camera Parts
1. ST-4 compatible autoguider port
2. 2.1mm centre-positive 12V DC input
3. USB port
4. Cooling outlet
5. 1.25” nosepiece with T2 (M42 x 0.75mm pitch) thread
6. Cooling inlets
3.2 Sensor
The sensor inside your camera is a Sony ICX424 (the full technical data sheet
is available at
3.3 Optical Window
The 2mm-thick optical window is BK7 glass with BBAR coatings on both sides
to minimize unwanted reflections.
3.4 Analog to Digital Converter (ADC)
Your Atik Titan is equipped with a 16-bit ADC, allowing it to record subtle
levels of grey which will provide you with enhanced dynamic range when
capturing an image.
