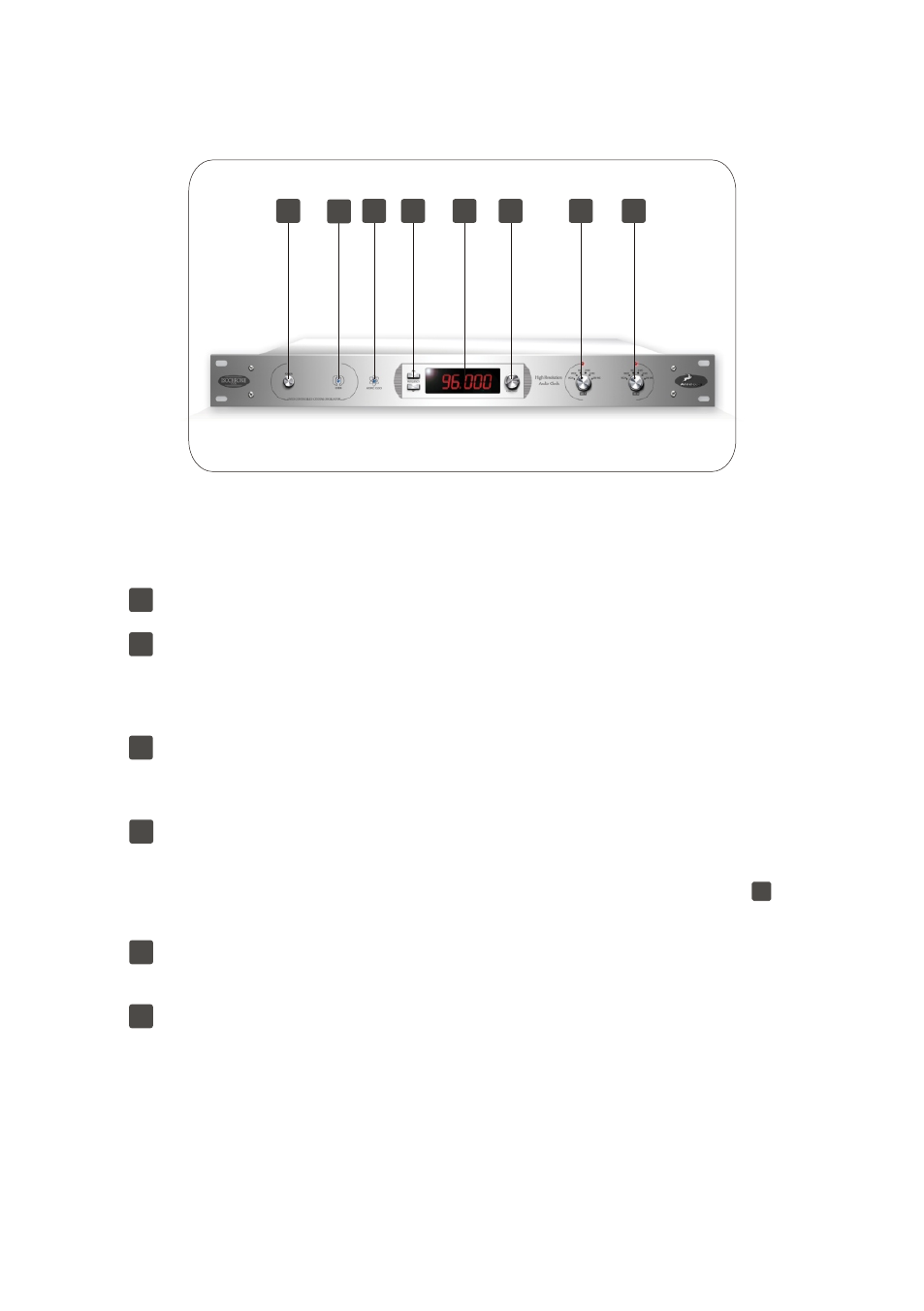

Front Panel
Power Switch
Oven Indicator
When the OCX is powered on, this LED will flash while the oven calibrates its
temperature. The LED will remain lit when this temperature is achieved. This process
only takes a moment, and verifies optimum hardware performance.
Atomic Clock Indicator
When lit, this LED verifies that the OCX is slaving to Atomic Clock via the corresponding
BNC input on the unit's back panel.
Sample Rate Selectors
Used to select the operating frequency of the OCX clock. All outputs (Word Clock,
AES/EBU, and S/PDIF) will output this frequency with the exception of outputs 7 and 8.
Outputs 7 & 8 can operate at this rate or provide user defined frequencies. See
for
more details
Frequency Display
Displays the operating frequency of the OCX clock.
Contrast Knob
Adjusts the frequency display contrast.
