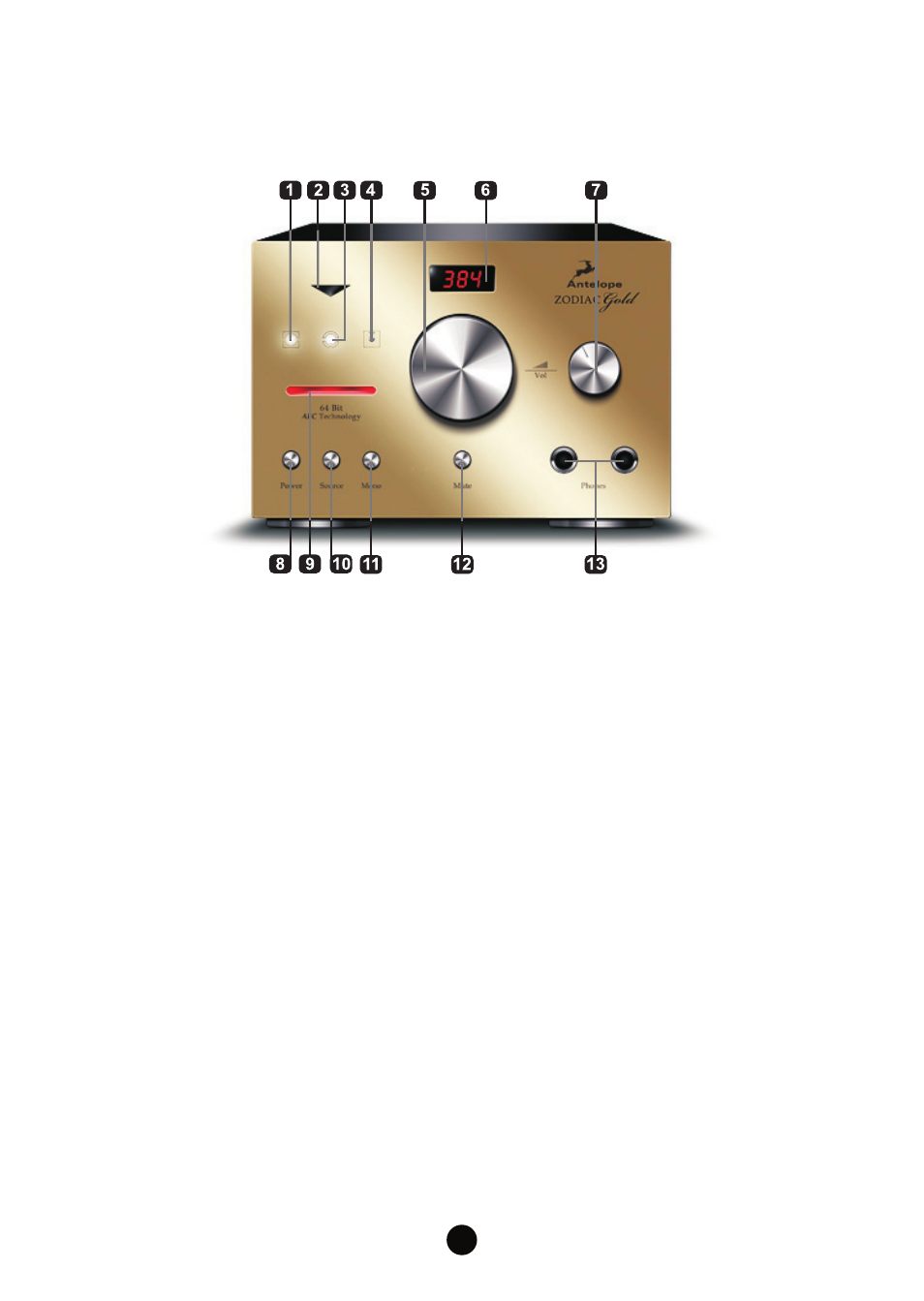

5. Front Panel Explained
1. Lock light
When lit, this indicates Zodiac Gold is locked to an incoming digital signal via rear panel connectors
(21), (22), (23), (24). The light will flash if there is no valid digital signal or if a media player is in
stopped or paused mode when using USB.
2. Infrared receiver
Remote control unit receiver. Do not cover!
3. Word Clock light
Indicates the device is locked to the incoming Word Clock signal at rear panel BNC connector (20).
NOTE: Word Clock overrides the clock signal present in AES, S/PDIF and TOSLINK.
4. Mono light
When lit, this indicates the outputs are summed to mono.
5. Main volume
Adjusts levels for analog outputs (18), (19). The level is shown on the display (6) when adjusting,
with a range of -60dB to 0dB. A click is heard as each relay engages the precision resistors.
6. Display
Multi-function display can show Sample Rate, Main Volume Level, Source Input, Headphone
amplifier impedance and info concerning USB mode. See also (5), (10), (12) for related functions.
7. Headphone volume
Adjusts level of headphone amplifier to headphone outputs (13).
