3 DRM Installation Manual — Introduction
Introduction
The DRM provides an open-ended rack-mountable frame 19 inches wide, by 2 RUs
high, by 9 inches deep for containing AJA mini-converter products. The frame
accommodates up to 12 small converters (D4/D5 Series and others of the same size) or
up to 6 large converters (D10/HD10 and others of similar size). Converters of different
sizes can be mixed, but remember that each large converter takes up 2 slots. These
converter types can be installed:
• D-Series
• HD-Series
• C-Series
Note: Because of heat-related issues, the 3GM converter cannot be used with the DRM
frame.
The DRM includes a mini-power supply with connections for up to 12 converters to
eliminate the many individual converter wall-wart power supplies.
What’s In The Box?
When you unpack your AJA DRM, you’ll find the following components:
• AJA DRM frame.
• Power cord
• Bag of clamps and hardware for mounting converters.
• The manual you’re reading and special notices, if any.
Note: The DRM Front Cover option and Converters are purchased separately.

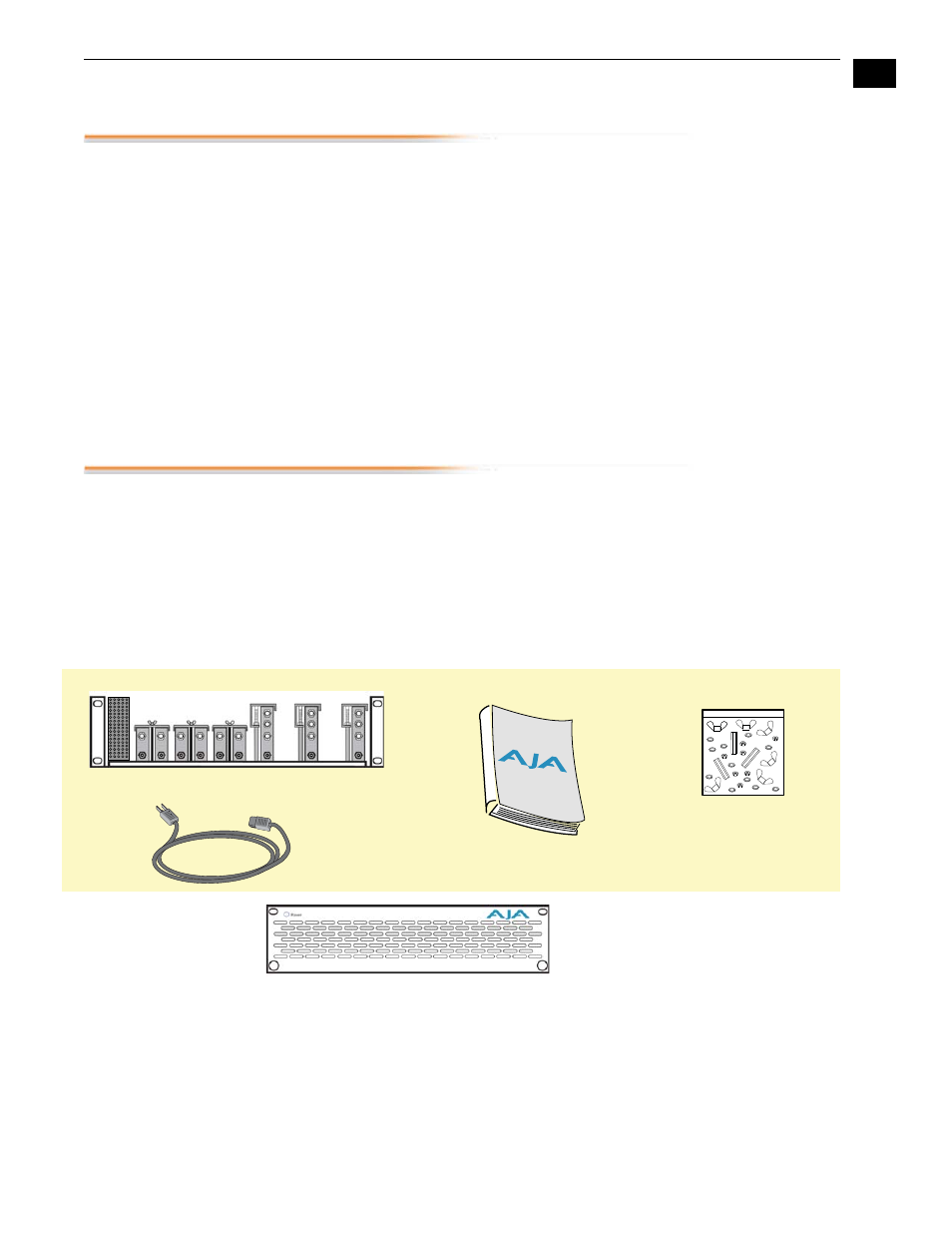

DRM Shipping Box Contents
Frame Front Cover
is an available option
Installation and Operation Manual
AJA DRM Frame (modules shown are not included)
Bag of Converter
Mounting Hardware
Power cord
