4

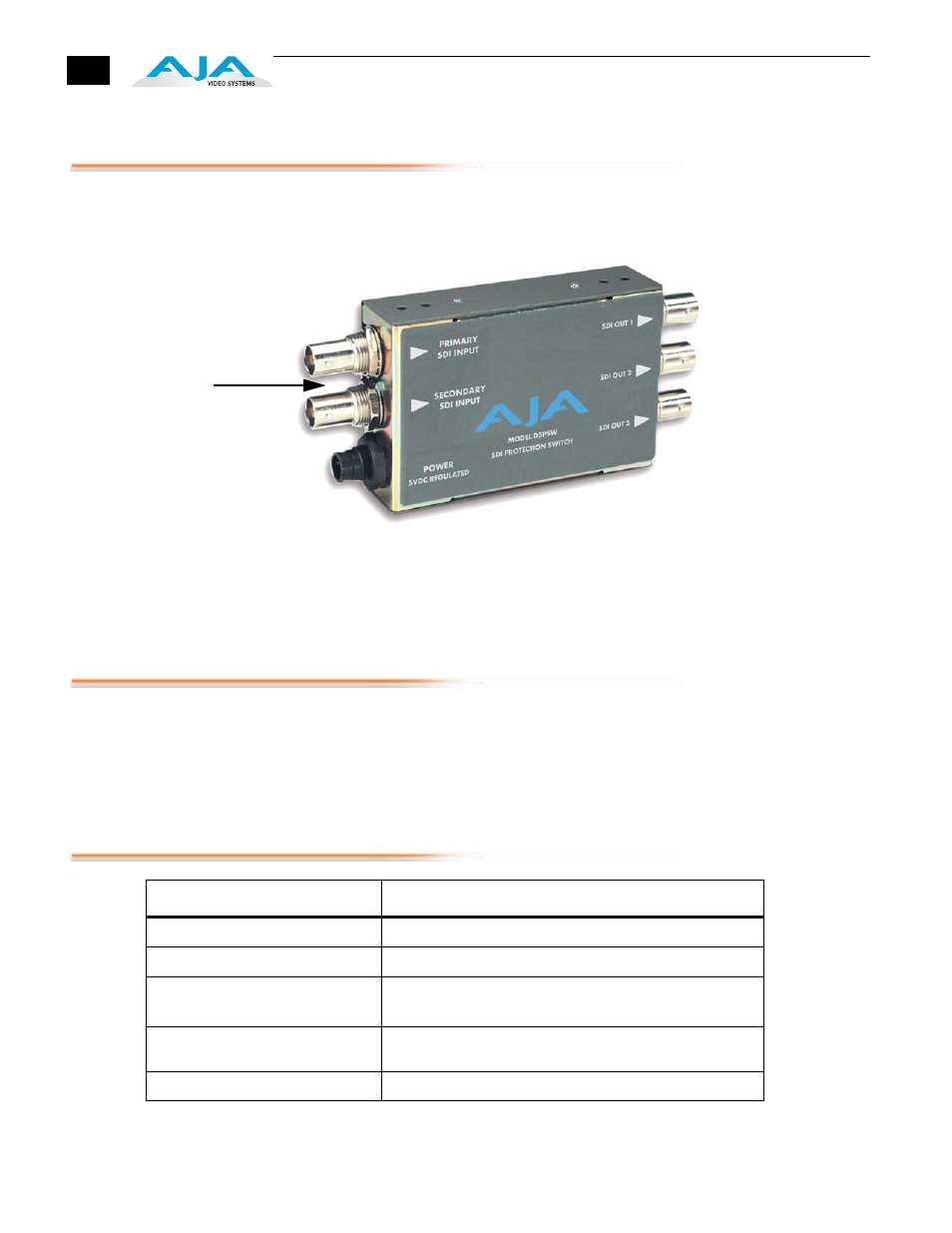

I/O Connections
D5PSW, Side View
Installation
Typically, D5PSW installation consists of the following:
1. disconnect +5VDC from the convertor
2. connect video equipment to the BNCs
3. apply +5VDC power to the converter (AJA power supply model DWP)
Specifications
SDI Primary Input BNC
+ 5 VDC
Power
Input
LED*
SDI
Output 1
BNC
SDI
Output 2
BNC
SDI
Output 3
BNC
SDI Secondary Input BNC
*LED indicator:
Green if both Primary and Secondary are present
Flashing green if the Primary is present but the Secondary is not present
Orange if the Secondary is present but the Primary is not
Item Specification
Formats 143, 177, 270, 360 Mb SMPTE 259, auto select
Inputs 2 SDI (SMPTE 259M), 2xBNC
Outputs 3 SDI (SMPTE 259M), 3x BNC
Equalizing, Re-Clocking
Power
(AJA power supply model DWP) +5V DC regulated power, 4 Watts
Size 5.1” x 1.8” x 1” (131 x 44 x 25 mm)
