Chapter 1: Hi5 Mini-Converter
Introduction

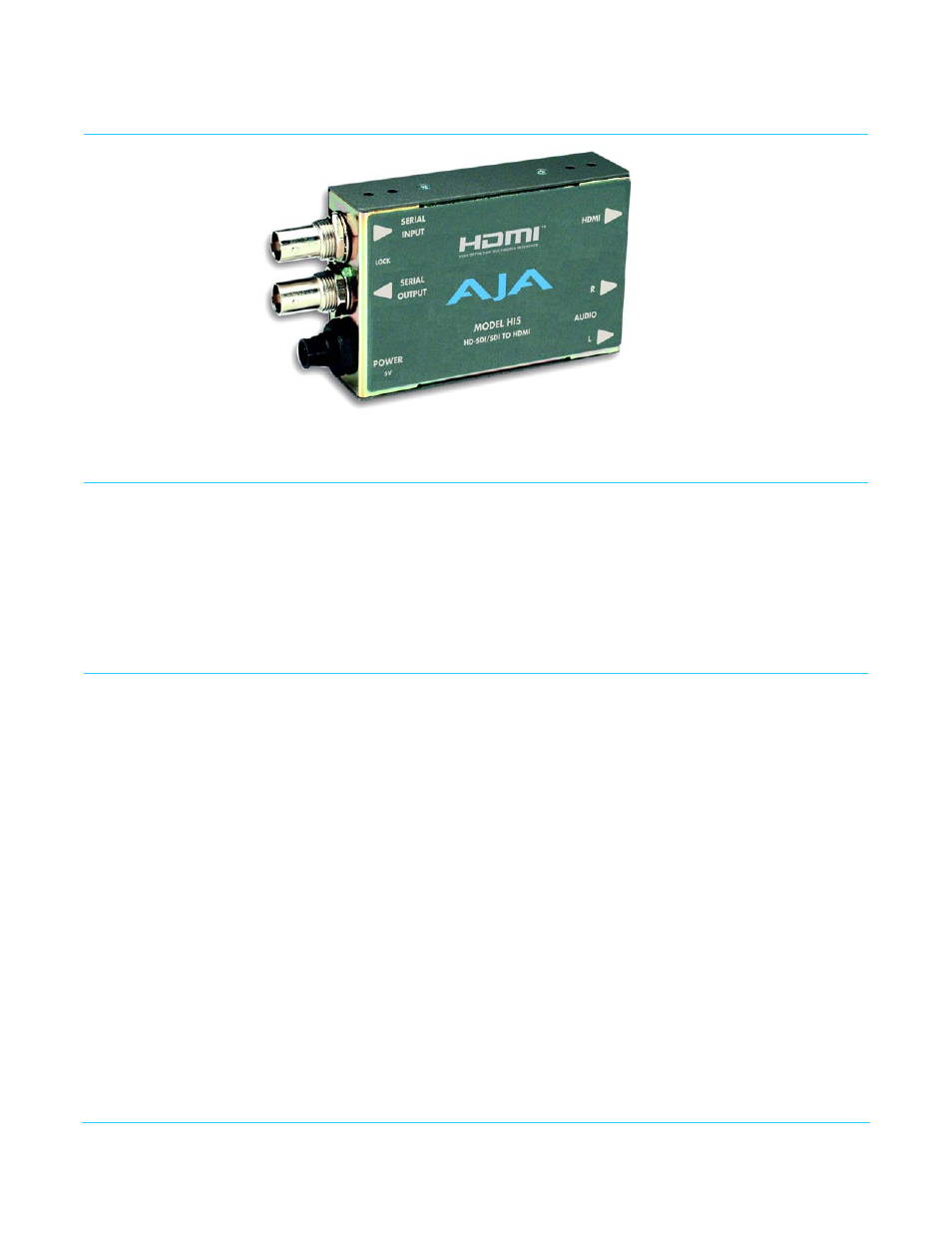

The Hi5 Mini-Converter converts SDI or HD-SDI to HDMI for driving HDMI monitors.
Embedded SDI/HD-SDI audio is supported in the HDMI output allowing a convenient
single cable audio/video connection. The Hi5 provides 2 Channel RCA style audio
outputs for separate audio monitoring if needed. The Hi5 also provides a looping SDI/
HD-SDI output useful for connecting additional equipment, or for “daisy chaining”
multiple monitors to the same SDI-HD-SDI source.
Features
• SD/HD-SDI to HDMI
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2 Channel RCA jack audio output (channels 1 and 2)
• Equalized Looping SDI/HD-SDI output
• HDMI cable supplied
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• No configuration necessary
