Page 5: Ha5 simplified block diagram audio
HA5 Mini-Converter v1.0r2
www.aja.com
5

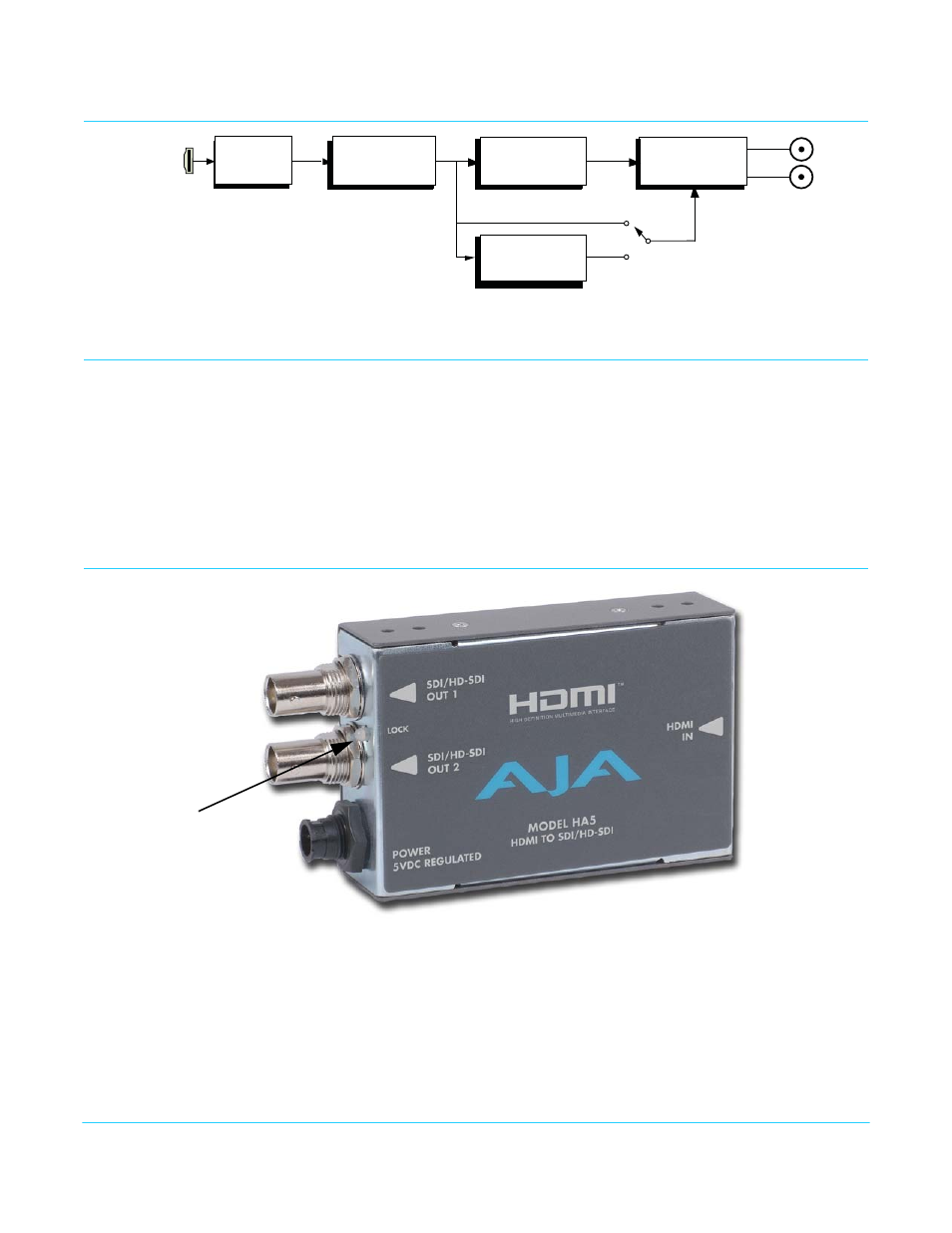

HA5 Simplified Block Diagram
Audio
HA5 Mini-Converter supports 8 audio channels (4 stereo pairs) at 24-bit/48 KHz which it
dis-embeds from HDMI and embeds into SDI. For proper embedding, audio must be
synchronous to video. However, if audio is not synchronous with video or the sample rate
is not 48 KHz, then jumper #1 must be installed. Having jumper #1 installed forces an
onboard Sample Rate Converter to convert audio to 24-bit/48 KHz and then synchronize
it with input video before embedding. In this scenario only channels 1/2 are
embedded—the other 6 channels are muted.
HA5 I/O Connections
NOTE: The Lock LED indicates valid input video by color. Green is SD video, red is HD video, off is
no input.
HDMI Cable
Equalizer
te xt
HDMI Receiver
text
HDMI Processing
text
Audio Sample Rate
Co nverter
text
Embed Audio
SDI ou t 1
SDI ou t 2
HDMI
IN
Jumper #1
(not installed)
SD/HD-SDI Output 1
Input
+ 5VDC
Power
Input
HDMI Connector
Lock LED
SD/HD-SDI Output 2
