Controls and Connectors

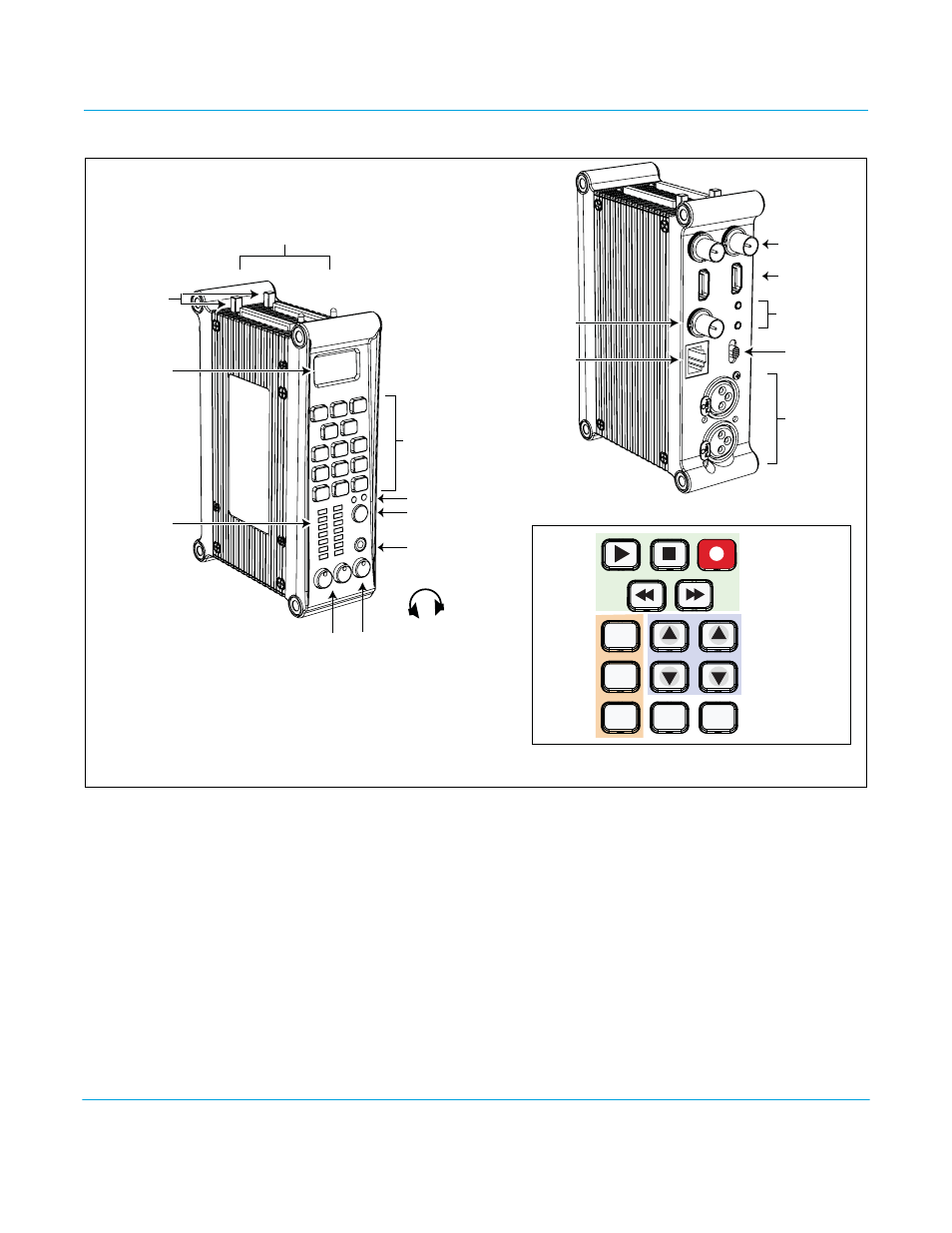

Figure 2. Ki Pro Mini Operator Side (front panel)

Operator Side

The Operator Side of Ki Pro Mini features a variety of buttons, knobs, jacks, and indicators
for operating Ki Pro Mini directly. Each of the items found on the “Operator Side” are
described here and on the following pages. This side is referred to as the “Operator Side”
because when mounted to a camera, it matches the operator side of the camera. When
controlling camera features, you’ll also be looking at all the Ki Pro Mini control features
for ease of use.

The front panel of Ki Pro Mini operates in two modes: the “TRANSPORT” mode (default),
and the “MENU” mode. Some controls have different functions in these two modes. The
TRANSPORT mode (shown above) controls basic play, record, clip select, etc. functions.
The MENU mode is for set-up and configuration of Ki Pro Mini. There are three menu
groups: STATUS, CONFIG, and MEDIA - these menus are accessed by depressing the
corresponding Menu buttons on the left of the panel.

Head
Phone
Jack

Power ON/OFF
(lights when ON)

LED shows which
CF slot is active

2 Compact Flash (CF)

Card Slots

(Indicator LED shows which is active)

Audio

Input

Level

Adjustment

2 Channel

(Press in and

knob will pop out

for easy adjustment)

Head
Phone
Volume

(Press in and
volume adjust
knob will pop out
for easy adjustment)

Meters

(2 Channel)

LCD

Display

for Menus and

Alerts

Card

Eject Buttons

(1 for each)

LTC

Input

Ethernet

10/100/1000

RJ45

(for Browser Control)

HD/SD SDI I/O
(2x BNC)

HDMI v1.3a I/O
(2x HDMI)

2 channel
balanced
analog
audio input

Transport,
Menu Selection
and Media
Selection Buttons

Play, Stop, Record,
Reverse, Forward
Transport Buttons

Menu
Select and Adjust
Buttons

Choose Active
CF Media Slot
