ELECTRICAL REQUIREMENTS

CAUTION - The brewer must be disconnected from the power source until specified in

Initial Set-Up.

Requires 2-wire,
grounded service
rated 120 volts ac,
15 amp, single
phase, 60 Hz.

Requires 2-wire,
grounded service
rated 120 volts ac,
20 amp, single
phase, 60 Hz.

ELECTRICAL HOOK-UP
CAUTION Improper electrical installation will damage electronic components. This unit is factory wired for
operation on a 120 volt, 15 amp service (1425W Version).
1.

An electrician must provide electrical service and verify that the tank heater connections are connected as
specified in the above diagram.

2.

Determine the available on-site electrical service.

3.

Select the desired unit wattage based on the available on-site electrical service.

4.

Using a voltmeter, check the voltage and color coding of each conductor at the electrical source.

5.

Remove the front panel beneath the sprayhead.

6.

Feed the supply leads through the rear panel of the brewer.

7.

Using the above diagrams, connect the desired electrical service to the field wiring terminal block and remove
the top cover of the brewer to verify the tank heater terminal block connections.

8.

The electrical service connections at the field wiring terminal block must agree with the tank heater terminal
block connections as specified in the above diagram.

9.

Before proceeding, verify the voltage at the field wiring terminal block. Replace the panel and top cover.

10. If plumbing is to be hooked up later be sure the brewer is disconnected from the power source. If plumbing

has been hooked up, the brewer is ready for

Initial Set-Up

.

Requires 3-wire,
grounded service
rated 120/208 volts
ac, 20 amp, single
phase, 60 Hz.

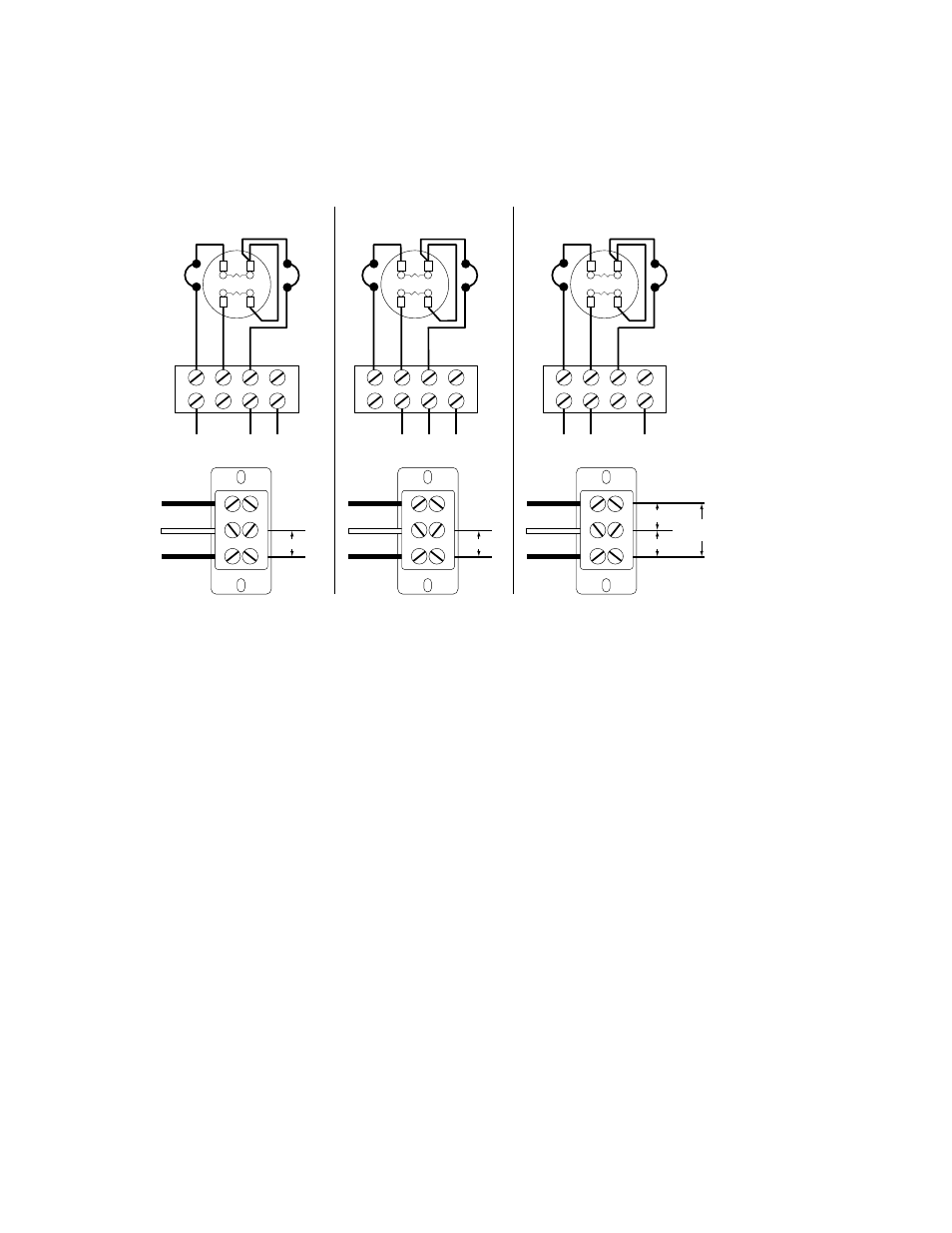

TANK HEATER TERMINAL BLOCK WIRING DIAGRAM

(CDBC-MV MODELS)

RED

WHI

BLK

RED

WHI

BLK

BLK

WHI

RED

120V A.C.

120V A.C.

208 or

240V A.C.

WHITE

NEUTRAL

L1 BLACK

L2 RED

L2 RED

L2 RED

1800W @ 120V

1425W @ 120V

2390W @ 120/208V

or

3180W @ 120/240V

120V A.C.

WHITE

NEUTRAL

L1 BLACK

120V A.C.

WHITE

NEUTRAL

L1 BLACK

1800W

1425W

B
L
K

B
L
U

W

H

T

1800W

1425W

B
L
K

B
L
U

W

H

T

1800W

1425W

B
L
K

B
L
U

W

H

T

FIELD WIRING TERMINAL BLOCK DIAGRAM

1800W VERSION

1425W VERSION

2390W VERSION

3180W VERSION

Requires 3-wire,
grounded service
rated 120/240 volts
ac, 20 amp, single
phase, 60 Hz.

P1888

Models CDBC-MV & CDBC-APS MV
