Broilmaster P3 - Manual (Page 9)

G
RILL
A
SSEMBLY

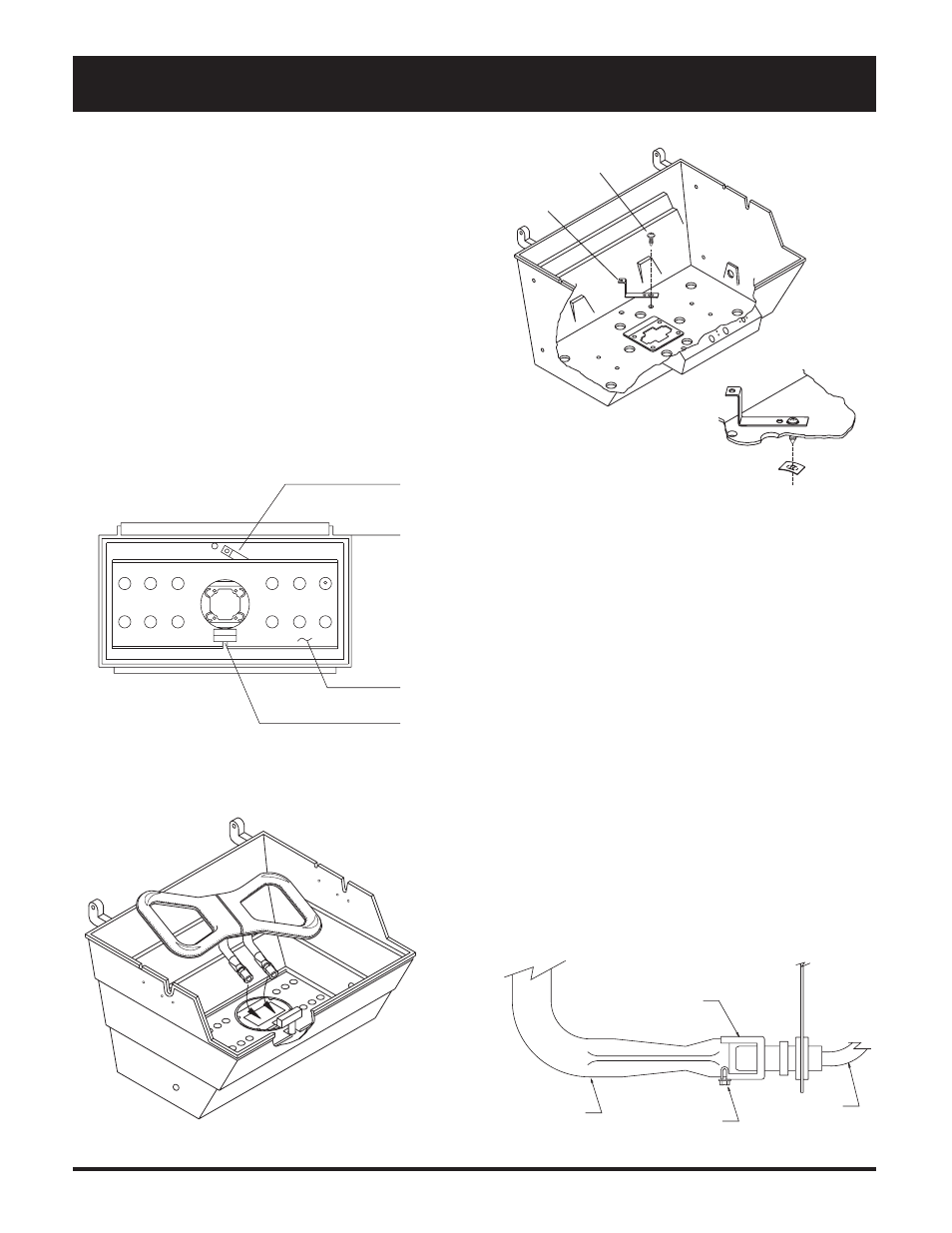

Burner Stabilizing Bracket
(Portable Cart Models Only)
Remove the factory installed phillips screw and
speed nut that are located in the grill bottom.
F
IGURE
8.
Tip: Test the alignment of the burner stabilizing
brackets before tightening the burner stabilizing
bracket.
Install the burner stabilizing bracket (41) and
fasten with the phillips screw and speed nut.
Radiation Shield
Place the radiation shield (20) in the grill
bottom. F
IGURE
9.
Installing the Burner
Insert the burner assembly into the grill bottom with
the venturi tubes facing the front of the grill. F
IGURE
10.
The gas jets from the control valve will be inside the
ends of the venturi tubes when properly installed.
F
IGURE 11.
7
Factory Installed
Screw
41
F
IGURE
8
19
8
41
20
INSTALL THIS SIDE UP
F
IGURE
9
F
IGURE
10
11
Air
Shutter
Shutter Set
Screw
Venturi
Tube
F
IGURE
11
