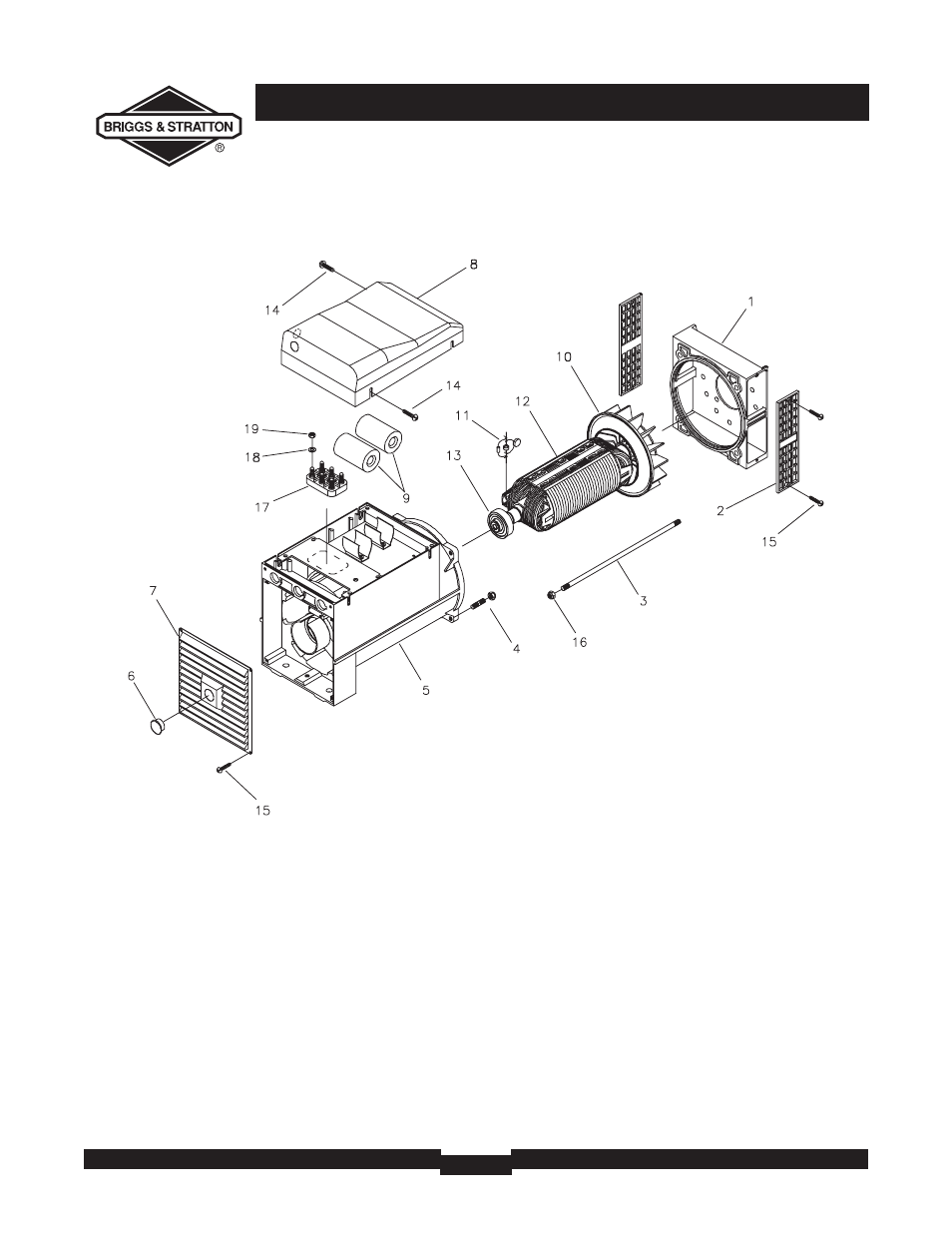

EXPLODED VIEW AND PARTS LIST

EXPLODED VIEW AND PARTS LIST – ALTERNATOR

Item Part #

Description

1

B4906GS

SHIELD, Front

2

B4907GS

GRID, Front

3

B4908GS

BOLT, Shaft Stay

4

B4909GS

STAY BOLT, M8 x 30

5

B4910GS

ASSY, Housing

6

187049GS

PLUG, Domed

7

B4912GS

GRID, End

8

B4913GS

COVER,Top Black

9

B4914GS

CAPACITOR

10

198364GS

FAN

11

B4916GS

CAPACITOR, Diode + Varistor + EMC

12

191297GS

ASSY, Rotor

13

197705GS

BEARING

14

*

SCREW, M6 - 1.0 x 10mm

15

*

SCREW, M5 - 0.8 x 10mm

16

49820GS

LOCK NUT, M8 - 1.25

17

188928GS

CONNECTOR, 6-Pin Sincro

18

*

WASHER, Flat M6

19

*

NUT, M6

* - Items without part numbers are common fasteners and can be
found at your local hardware store.
