Blue Rhino CBC911W - Manual (Page 3)

Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
For great recipes and tips, visit recipes.uniflame.com.
page no.
3
Parts List
1 Lid Air Vent 55-14-681
2 Handle 55-14-688
3 Warming Rack 55-07-028
4 Lid 55-09-196
5 Cooking Grid 55-08-239
6 Bottom Bowl 55-09-193
7 Bottom Bowl Air Vent (2) 55-14-686
8 Charcoal Tray 55-14-679
9 Side Shelf 55-09-198
10 Leg Support Cup (4) 55-14-684
11 Rear Leg (2) 55-14-677
12 Front Leg (2) 55-09-194
13 Wheel (2) 55-14-683
14 Bottom Grid 55-14-675

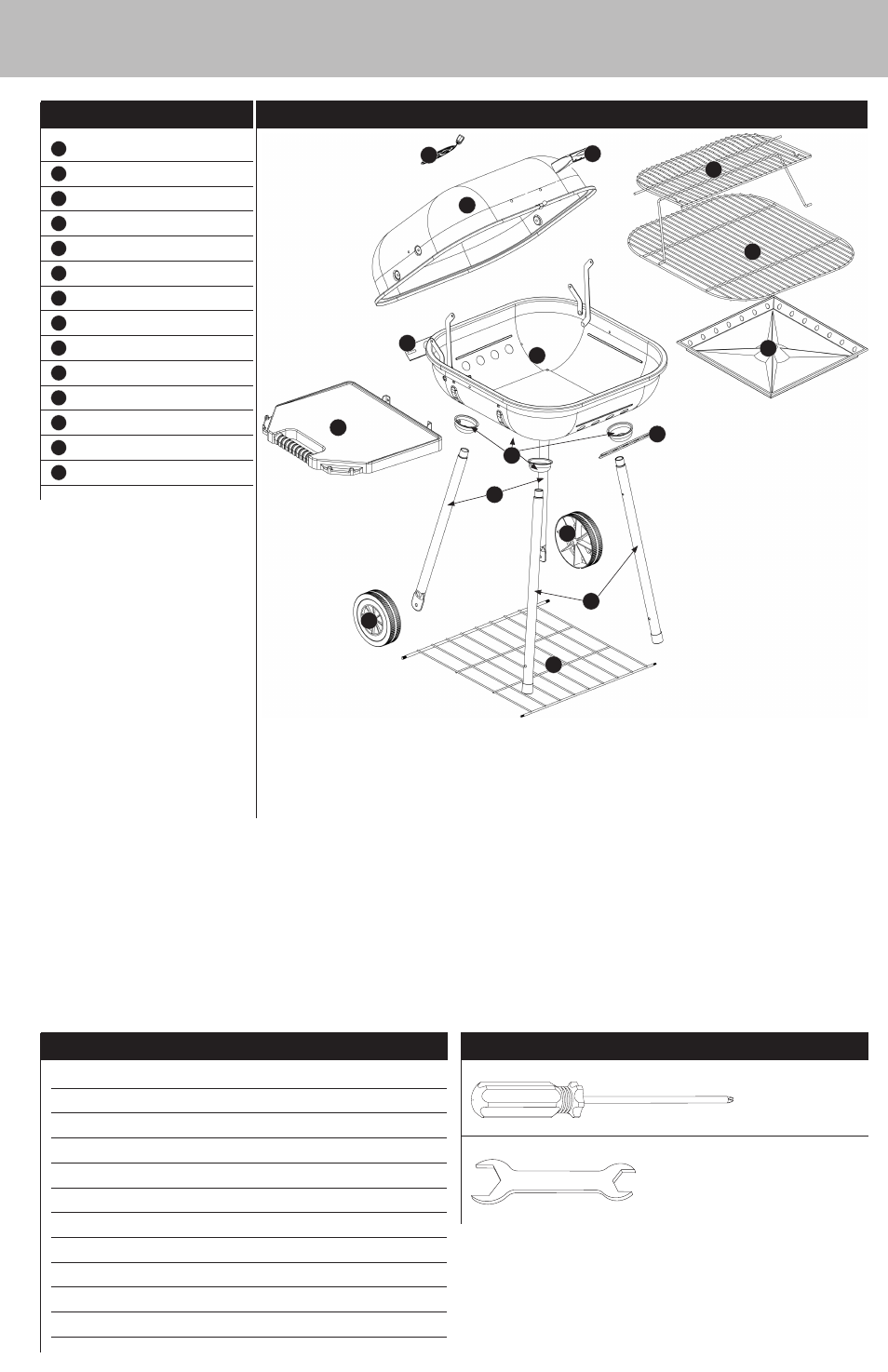

Exploded View
5
9
2
8
1
4
3
13
14
7
6
7
13
12
11
10
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M5 - M8 Wrench 1 pc
Hardware
A
Screw M5x12 Zinc Plated Phillips Truss Head 8 pcs
B
Screw M5x12 Zinc Plated Phillips Truss Head 3 pcs
C
Screw M6x30 Zinc Plated Phillips Truss Head 4 pcs
D
Nut M5 Zinc Plated 2 pcs
E
Nut M8 Zinc Plated 2 pcs
F
Wing Nut M5 Steel 9 pcs
G
Wing Nut M6 Steel 4 pcs
H
Washer ø5 Zinc Plated 2 pcs
I
Washer ø6 Zinc Plated 4 pcs
J
Washer ø6 Heat Resistant 2 pcs
K
Lock Washer ø5 Zinc Plated 2 pcs
