Speaker Wiring
Wiring is terminated at a snap-lock input con-
nector. There are two positive and two nega-
tive terminals to accommodate daisy chaining
of speakers in a system. All wiring should be
done prior to installation and then plugged
into the rear of the OPS1.

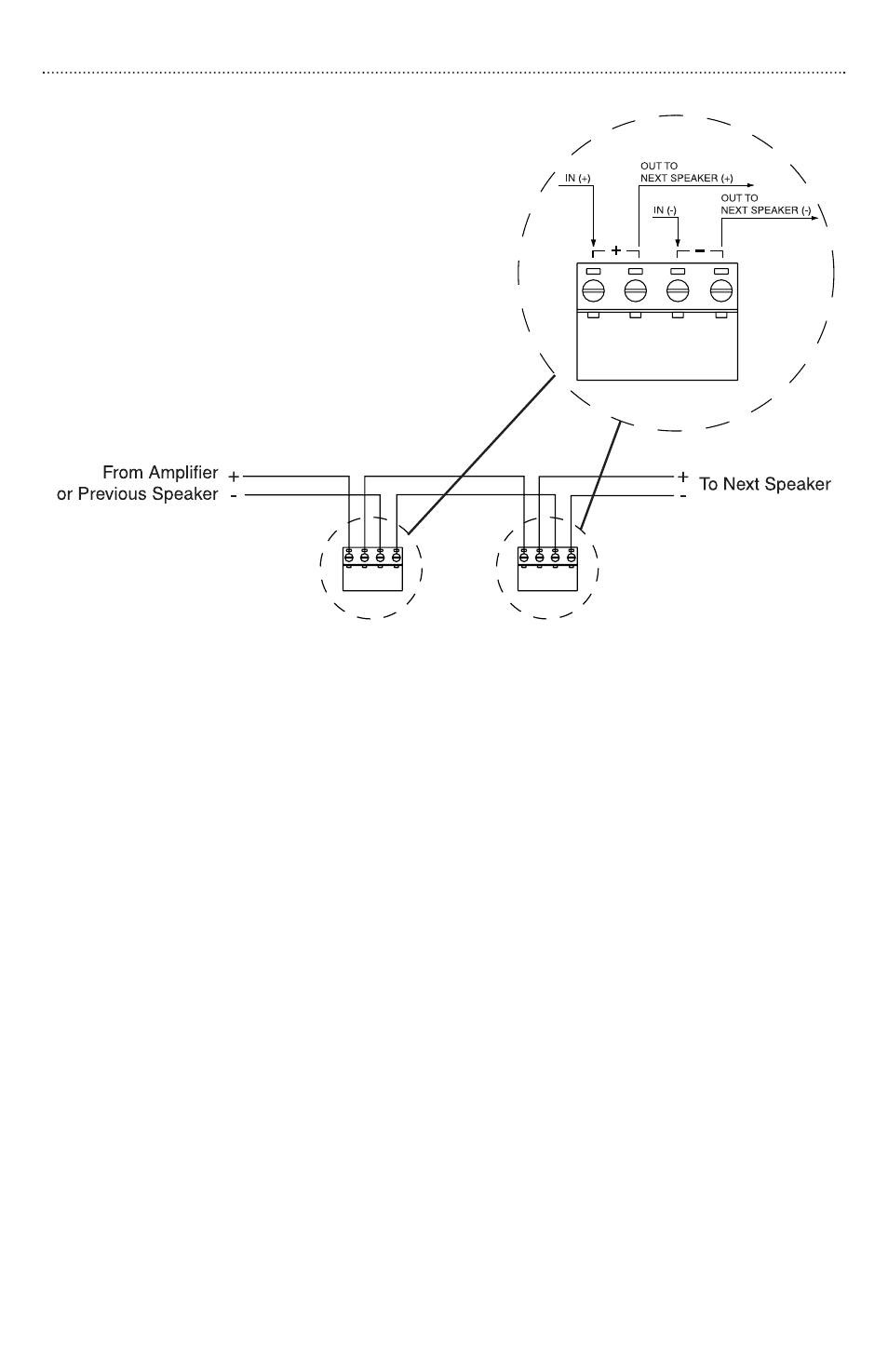

DAISY CHAINING
The OPS1’s snap-lock input connector allows
for easy daisy chaining of speakers by provid-
ing a second terminal of each polarity. Refer to
the figures for proper wiring for daisy chaining
of terminals.
SPEAKER PHASING
Keep the same polarity terminals wired together to ensure correct phasing. In order
to provide the best possible sound, all of the speakers in a system need to be push-
ing out and pulling in at the same time.
If the connections to one speaker in a system are reversed from the others, that
speaker’s movement will be out of sync with the other speakers.This will result in a
loss of low frequency response and will effect the overall performance of the sys-
tem.
