Operating features – Wood’s Powr-Grip MRTARC811LDC User Manual
Page 5
Rev 2.0/7-12
3
MRTA8-DC: #35076RC
OPERATING FEATURES
Note: Components featured in the following instructions for assembling, operating or
maintaining the vacuum lifter are underlined on their first appearance in each section.

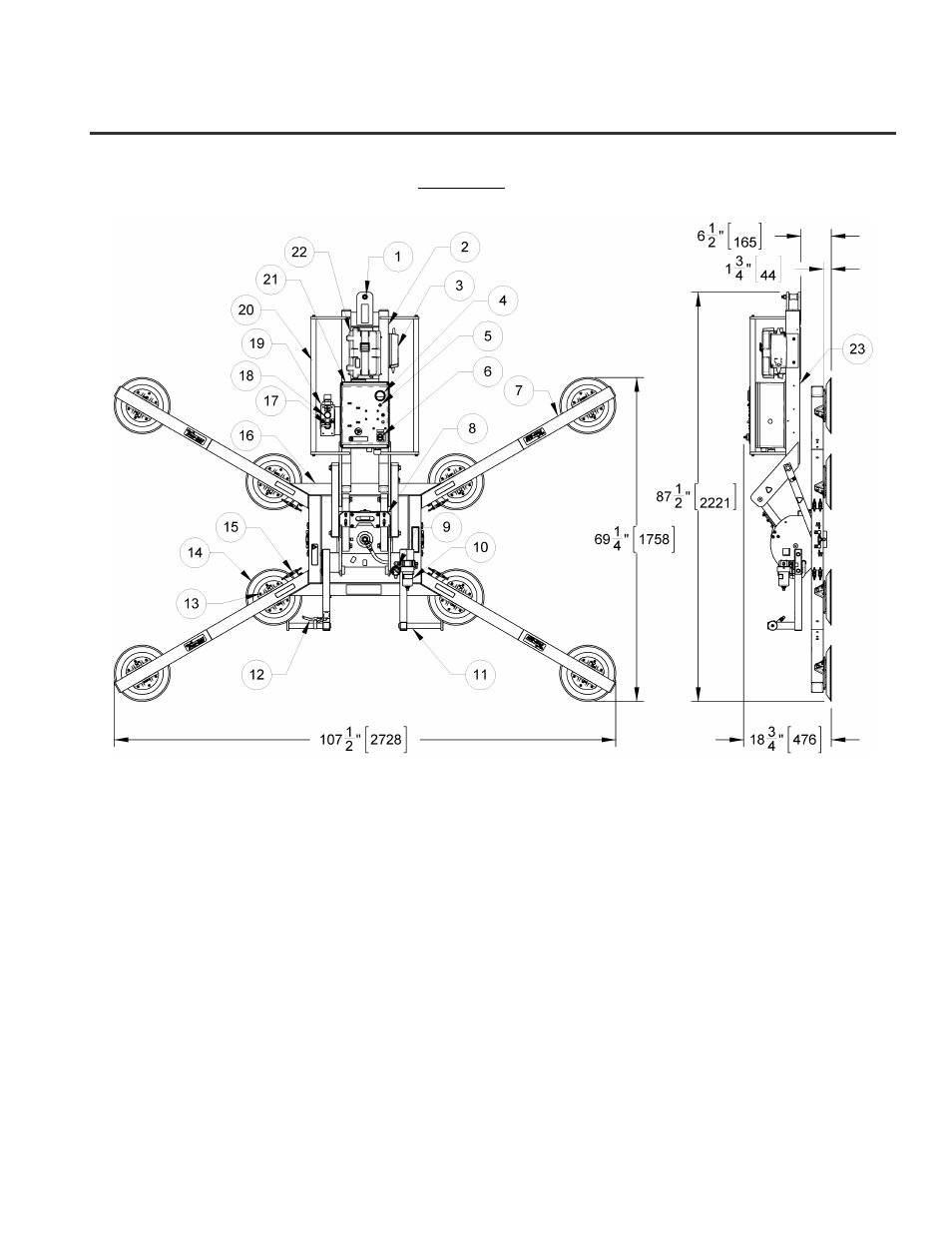

Standard MRTA811LDC shown with 3-SCFM [85 liters/minute] vacuum generating system
and movable control pendant.
1 LIFT SPOOL
9 VACUUM GAUGE
17 APPLY/RELEASE SWITCH
2 LIFT BAR
10 AIR FILTER
18 VACUUM LIFT LIGHT
3 BATTERY CHARGER
11 CONTROL HANDLE
19 MOVABLE CONTROL PENDANT
4 BATTERY GAUGE
12 ROTATION RELEASE LEVER
20 CONTROL HANDLE
5 BATTERY TEST BUTTON
13 MOVABLE PAD MOUNTS
21 Enclosure with VACUUM PUMP(S)
6 POWER SWITCH
14 VACUUM PAD
and VACUUM SWITCH
7 EXTENSION ARM
15 QUICK CONNECTORS
22 BATTERY ENCLOSURE
8 TILT LOCK (OPTION)
16 PAD FRAME
23 VACUUM RESERVE TANK
