Wolo 800 Tiger User Manual
Tiger air tank & compressor, Installation instructions for model 800

Installation Instructions
for Model 800
TIGER AIR TANK & COMPRESSOR
Your purchase of a Wolo Tiger Air Tank & Compressor is a perfect choice to power your high-pressure air horns.
The Wolo name, with more than twenty years experience, is your guarantee of a superior horn product. If you
need help installing this product, our technicians are available to answer your questions, Monday through Friday
from 9 AM to 4 PM EST by calling 1-888-550-HORN (4676).

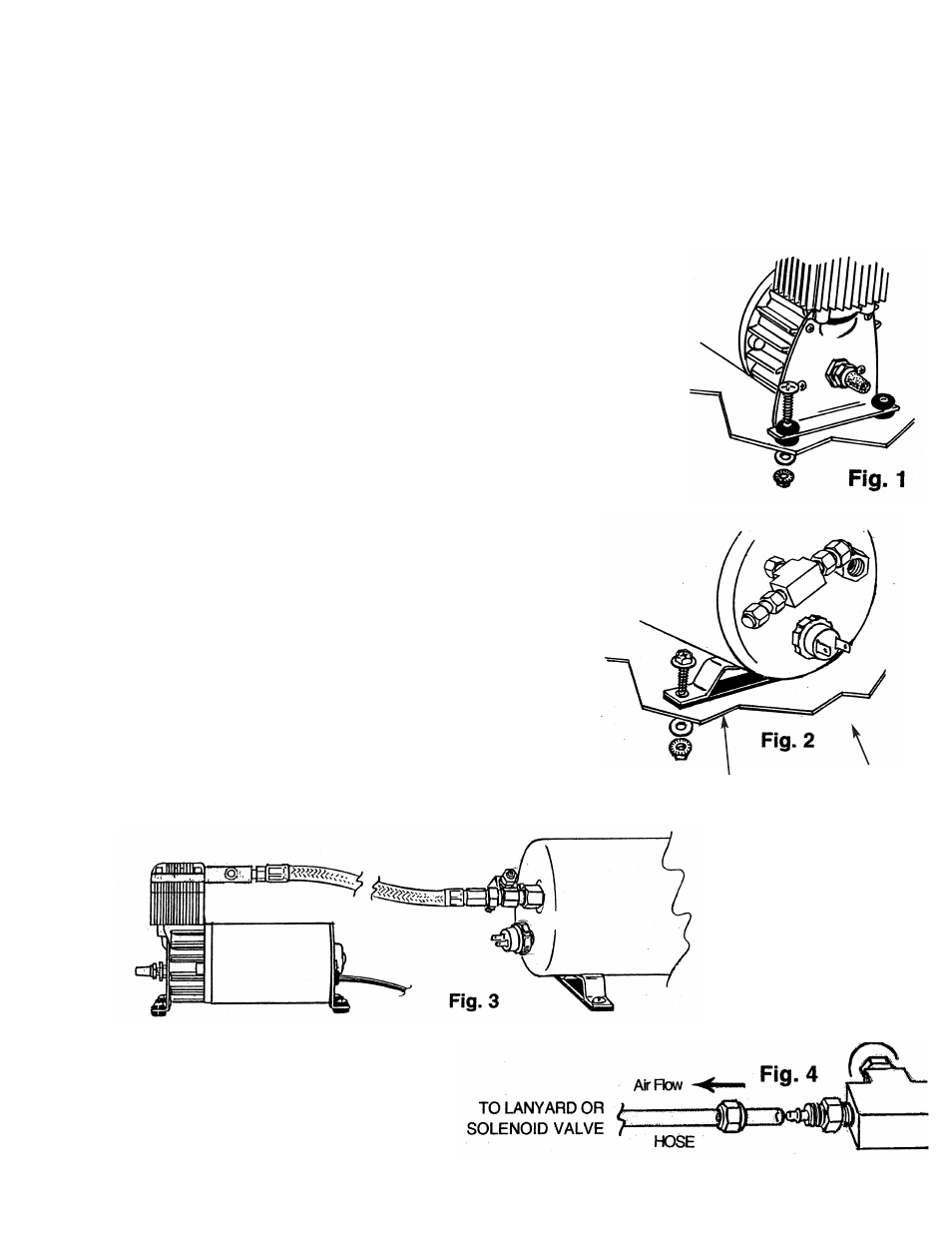

COMPRESSOR INSTALLATION (Fig 1):
1. Locate an area in the engine compartment that is dry and safe from the heat of
the exhaust manifold. Try to mount compressor as far to the front of vehicle as
possible to provide optimum airflow around compressor. IMPORTANT! Do not
mount on a plastic fender well or on flexible material.
2. Using the compressors mounting base as a template, mark the hole locations
and drill to size 13/64”. Secure the compressor to the mounting surface with the
hardware provided.
TANK INSTALLATION (Fig 2):
3. Locate a convenient area in the vehicle to mount the air storage tank.
IMPORTANT! When selecting a mounting location for the tank, make
sure that the compressor metal braided hose is close enough to
connect to the tanks brass female fitting.
4. Use the tanks mounting bracket as a template, mark the hole
locations and drill to size 15/64”. Secure tank with hardware provided
using the rubber gasket which will help prevent vibration. (Fig.2.)
HOSE INSTALLATION (Fig 3 and Fig 4):
5. Connect the metal braided hose from the compressor to tanks female brass inlet fitting. (Fig 3).
6. Using the plastic hose provided, cut to size to
connect the tank to the horn‘s lanyard or solenoid
valve. Place the brass-fitting nut onto the plastic
hose. Push the hose onto the tanks male fitting.
Tighten the brass nut onto outlet fitting.
CAUTION: Do not over tighten fittings. (Fig 4.)
7. Connect other end of plastic hose to horn lanyard or solenoid valve.
Rubber Gasket
Mounting
Surface
