28. Replacement bulb type: use only halogen 796/ 35watt halogen, 12 volt. Current draw: 2.73 amps.

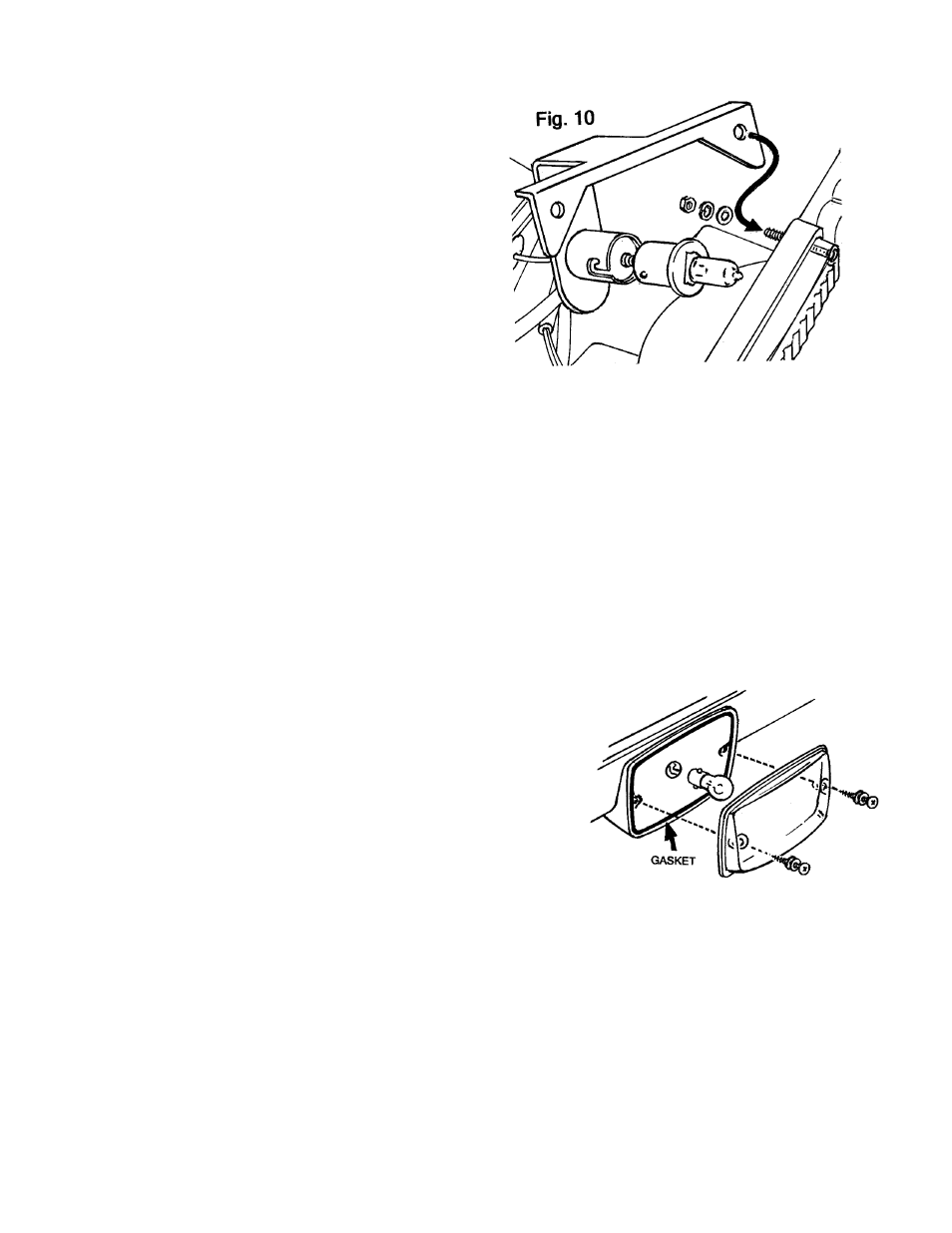

29. The takedown halogen bulb is secured in place by
the two screws at the top of the lens. Remove the
two screws. washers and nuts. The bracket and
light socket can now be removed from the back of
the lens and you will have access to the halogen
bulb. See fig. 10.
30. To remove bulb simply press inward and turn
counter clockwise. The bulb should easily be able
to be removed from the socket. Dispose of the
bad bulb out of reach of children and in an
environmentally safe manner. See fig. 10.
31. Never handle the glass of the new bulb with your
fingers, doing such will shorten service life. If by accident you touch the bulb, clean with household
glass cleaner.
32. Position the new bulb into the socket, depress the bulb and turn clockwise.
33. Insert the bulb back into the rear of the lens and and secure with the two screws, washers and nuts
removed earlier.
34. Place the lens back on the light bar's base and secure in place using the four screws removed
earlier. IMPORTANT: There is a rubber gasket on the edge of the lens, make sure the gasket is
positioned properly to prevent water and dirt from entering inside the light. Use care not to over
tighten screws that secure lens.
BULB REPLACEMENT FOR MARKER AND ALLEY LIGHTS
35. You will need to remove the marker light lens to change the
bulb. Remove the two Philips screws that secure the lens to
the lights. Once the two screws are removed the lens can be
removed from the light's base. See fig. 11.
36. Replacement bulb type: use only 1156 or Sylvania P21W, 12
volt. Current draw: 2.1 amps.
37. To remove bulb simply press inward and turn counter
clockwise. The bulb should easily be able to be removed from
the socket. Dispose the bad bulb out of reach of children and
in an environmentally safe manner.
38. Position the new bulb into the socket, depress the bulb and turn clockwise. IMPORTANT: There is a
rubber gasket on the edge of the light base. Make sure the gasket is positioned properly to prevent
water and dirt from entering inside the light. Use care not to over tighten screws that secure the
lens.
39. Place the lens into position and secure with the two screws removed earlier. Be careful not to over
tighten screws.
Fig. 11
LENS
