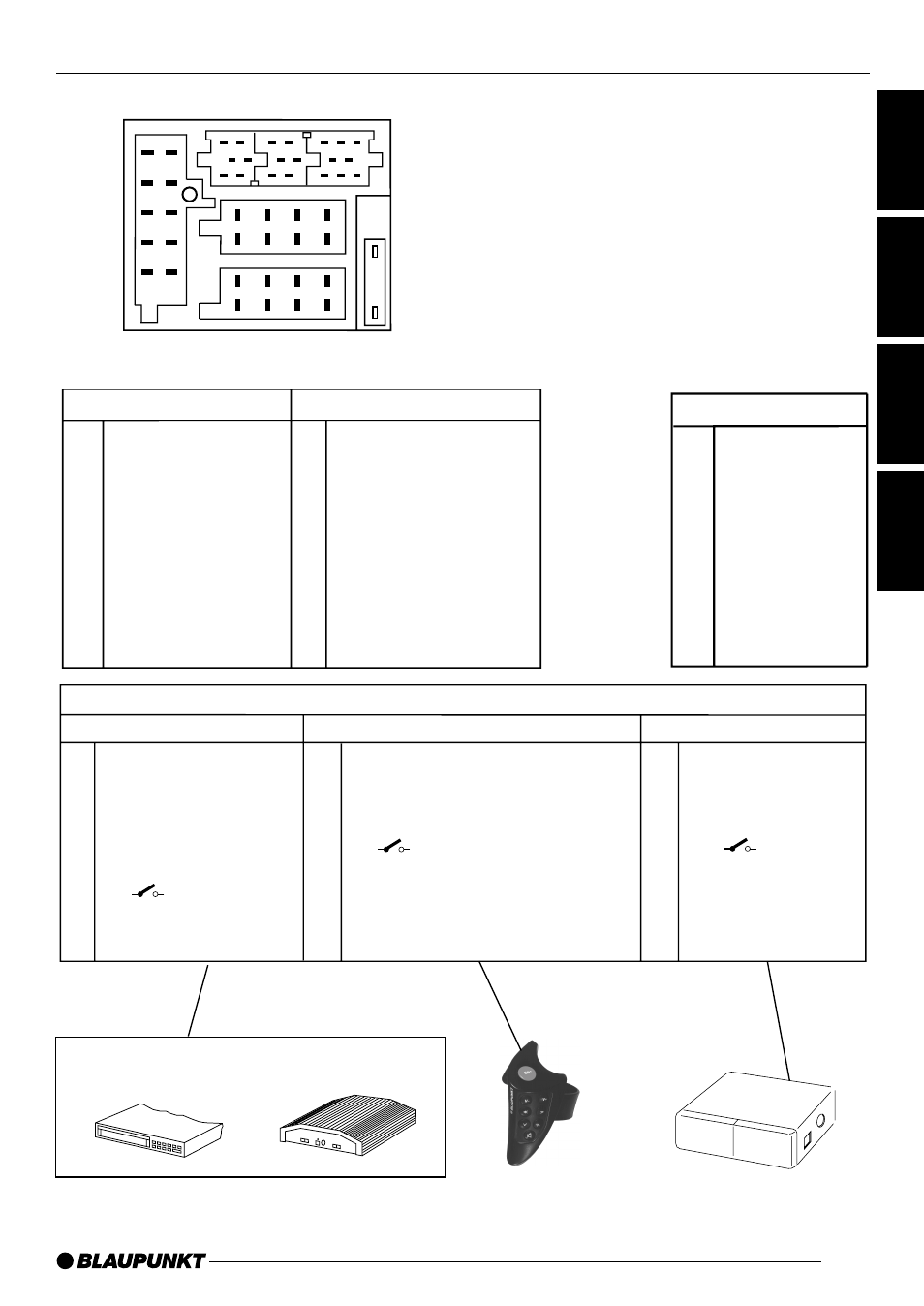

7.
A B
1 Automatic Sound 1 Speaker out RR+
2 Radio Mute 2 Speaker out RR-
3 nc 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF-
5 Aut. antenna 5 Speaker out LF+
6 Illumination 6 Speaker out LF-
7 Kl.15/Ignition 7 Speaker out LR+
8 Ground 8 Speaker out LR-
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
C
B
A
1 4 7 10 13 16 19
3 6 9 12 15 18
2 5 8 11 14 17 20
C-1 C-2 C-3
2
D
1
3 4
5 6
7 8
9
10
D
1 AUX 2- NF L
2 AUX 2- NF R
3 AUX 2- REF
4 NC
5 NC
6 NC
7 NC
8 NC
9 NC
10 NC
C
C1 C2 C3
1 Line Out LR 7 Telefon / Navi NF in + 13 Bus - In
2 Line Out RR 8 Telefon / Navi NF in – 14 Bus - Out
3 Line Out Masse / Ground 9 Radio / Navi Mute 15 Permanent +12V
4 Line Out LF 10 FB +12V / RC +12V 16 +12V
5 Line Out RF 11 Fernbedienung / Remote Control 17 Bus - Masse / GND
6 +12V Amplifier 12 FB - Masse / RC - GND 18 AF - Masse / GND
19 Line In - L
20 Line In - R
Equalizer Amplifier
CD-Changer
Remote
Control
