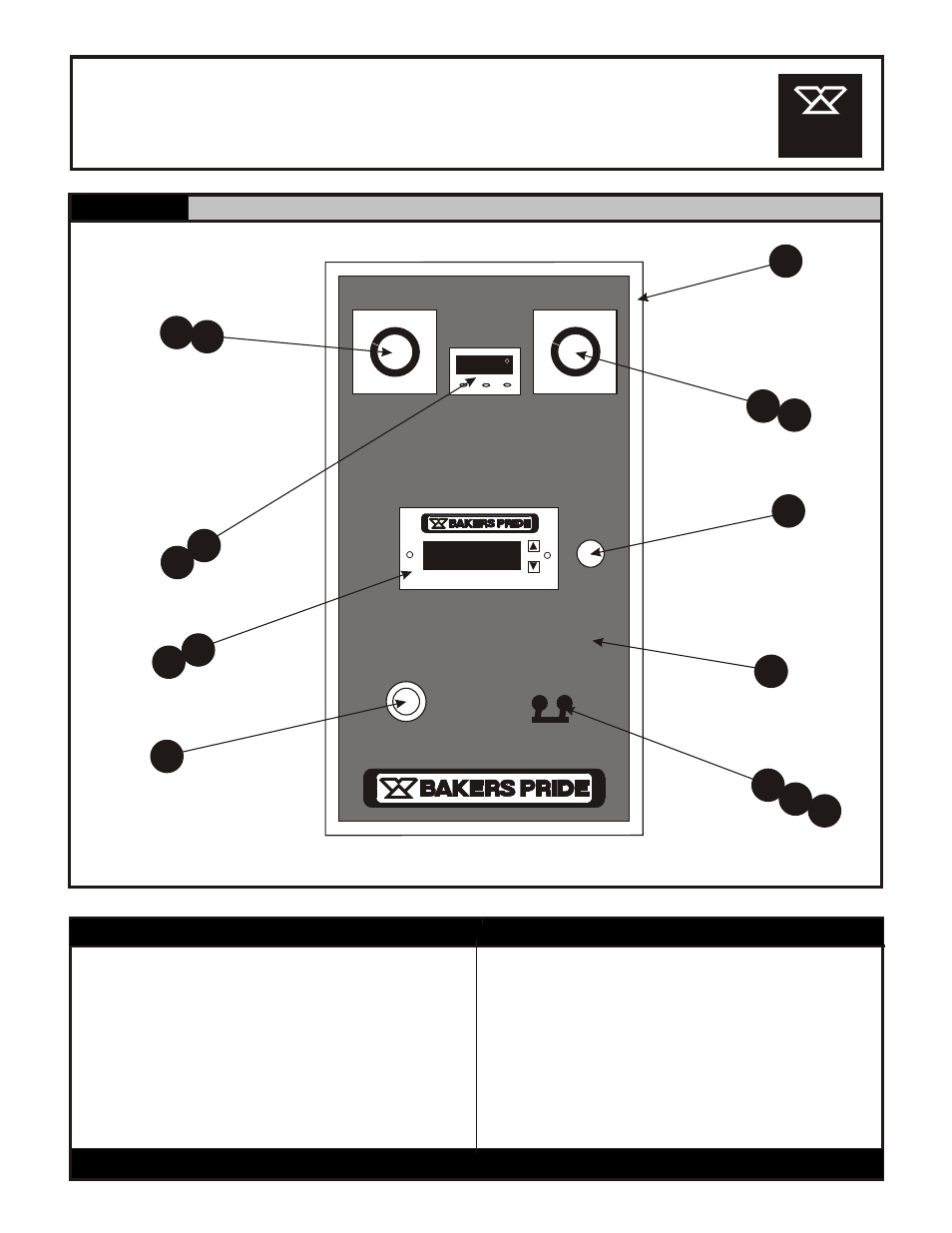

Figure C CONTROL PANEL
Page 4 of 4 Note: When ordering, ALWAYS specify Part #, Model #, Serial # and Voltage/Phase. 7/00
Item Part # Description Item Part # Description
30 Pine Street • New Rochelle • New York • 10801
914 / 576 - 0200
914 / 576 - 0605
1 - 800 - 431 - 2745
www.bakerspride.com
fax
US & Canada
web address
BAKERS
PRIDE
APC-18
Electric Conveyor Oven
LIGHT DARK
1
2
3
4
5
6
7
8
9
LIGHT DARK
1
2
3
4
5
6
7
8
9
MICRO-DRIVE
TOP HEAT TEMPERATURE BOTTOM HEAT
CONTROL
POWER
CONVEYOR
RESET
COOK TIME
475
12:30
OFF OFF
1
2
2
3
4
5
6
7
8
9
10
12
11
13
13
1 B5040X Control Panel 8 M1143X Speed/Time Control, 115V
2 M1180X Potentiometer, Clarostat 9 M1230X Speed/Time Control, 240V
3 M1133X Circuit Breaker (Conveyor Reset) 10 M1229X Circuit Breaker, 4 Pole, 30A
4 M1239X Temperature Controller, CAL3200, "F" 11 M1219X Circuit Breaker, 3 Pole, 380/415-20A
5 M1240X Temperature Controller, CAL3200, "C" 12 M1198X Circuit Breaker, 2 Pole, 40A
6 P1127X Pilot Light, Amber 13 S1205X Knob, Control
7 U1174X Overlay, Conveyor
2 13
4
5
8
9
6
11 12
3
7
10
1
2 13
