My DVR Expander USB Edition | 3
Using My DVR Expander
Connecting My DVR Expander to a DVR

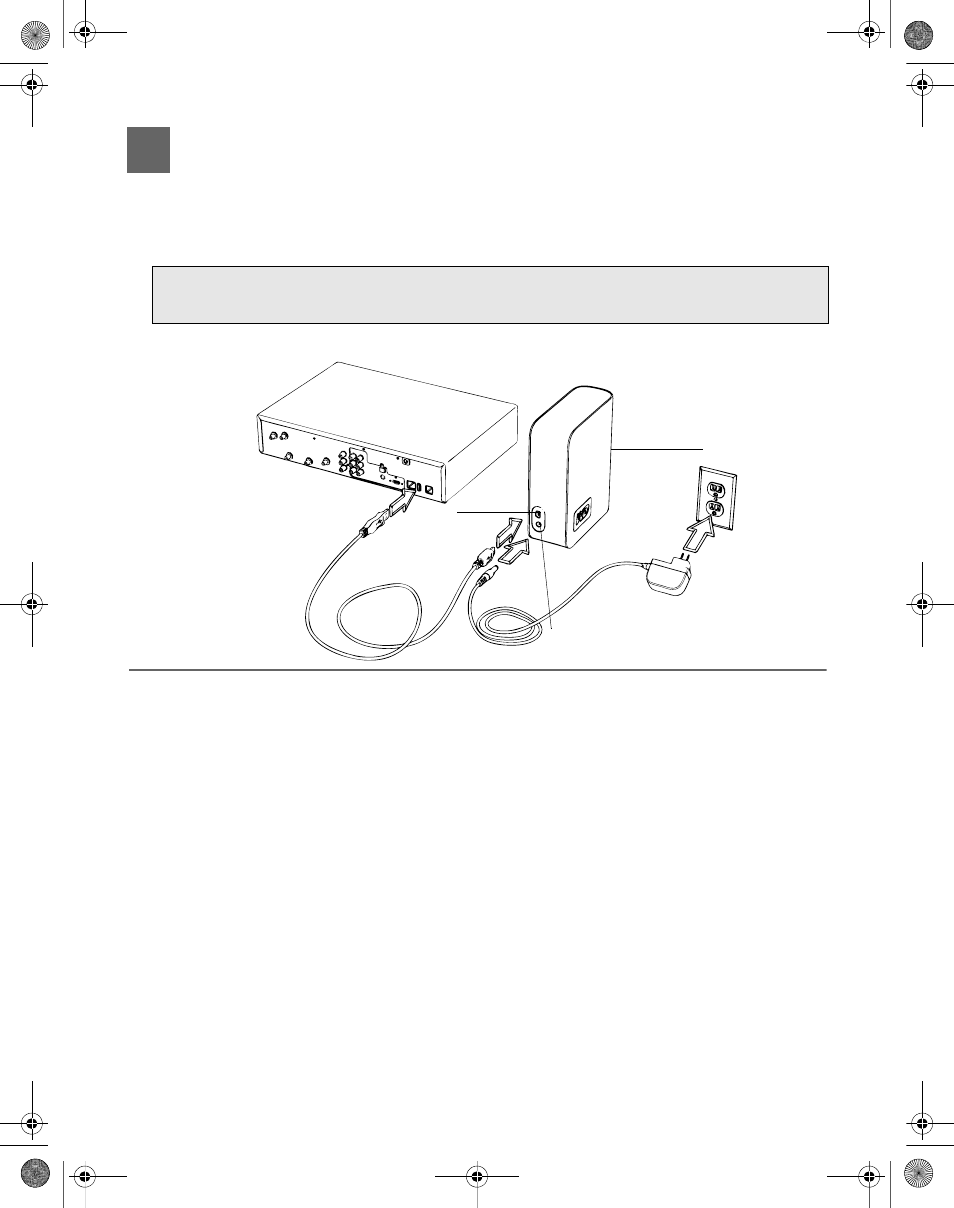

1. Connect the AC adapter cord to the DVR Expander and electrical outlet as shown below.
The power LED illuminates.
2. Connect the USB cable to the DVR Expander and power on the DVR if necessary.
CAUTION: Do not connect to the auxiliary power connector on the back of the DVR, as it
is not an adequate power source for external drives.
2
Power LED
USB
Connector
Power Supply Connector
Step 1 Power Connection
Step 2 USB Connection to DVR
