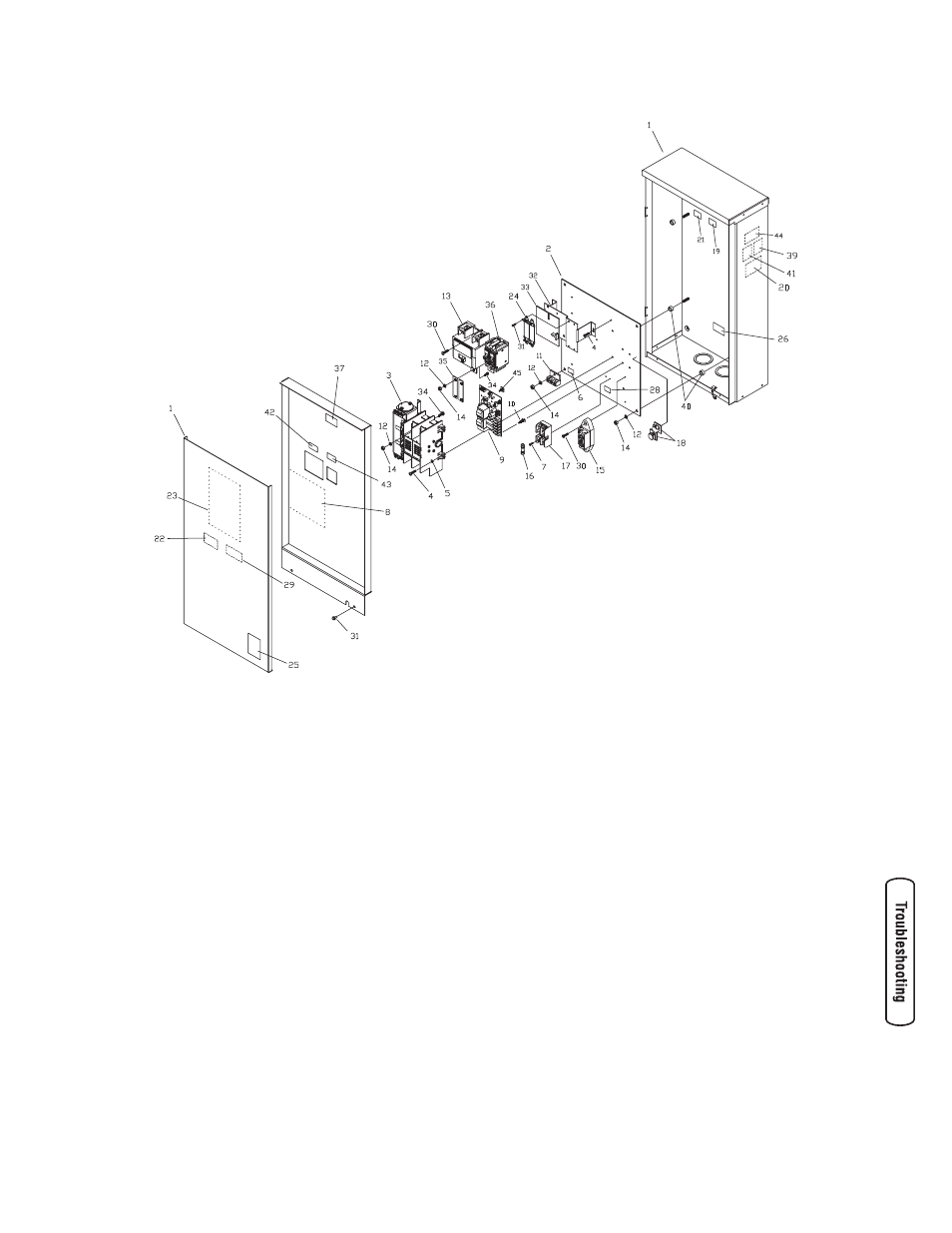

Transfer Switch Exploded View & Parts List
Item Part # Description
1 NSP ASSY, Enclosure
2 NSP BACK PANEL
3 195668GS TRANSFER SWITCH, 200A, w/Handle
4 * HHS, Trilobular, #10 - 32 x 1/2"
5 * WASHER, Ext. Tooth, #10
6 B4986GS DECAL, Ground
7 * HHS, Trilobular, #6- 32 x 3/8"
8 193664GS INSULATION, Dead Front
9 197279GS CONTROL, Board
10 197979GS SPACER, PCB Board, 1/2"
11 196094GS GROUND LUG
12 * WASHER, Lock 1/4"
13 192065GS BREAKER Circuit, 200A
14 * NUT, 1/4” - 20
15 192696GS TERMINAL, Neutral
16 B4857GS FUSE
17 192151GS FUSE HOLDER
18 197355GS CLIP, Latching Wire
19 B5107GS DECAL, Connect Gen
20 196355GS DECAL, CT Warning
21 B5106GS DECAL, Connection, Utility
22 192558GS DECAL, Suit. as Service Equip.
23 200012GS DECAL, 200A, ATS
24 192770GS BRACKET, Circuit Breaker
25 190992GS DECAL, Warning Shock
26 190984GS DECAL, Fuse
Item Part # Description
28 192597GS DECAL, Sensing, Utility
29 193450GS DECAL, Breaker, Circuit
30 * HHS, Trilobular, #10 - 32 x 3/4"
31 * HHS, Trilobular, 8-32x 3/8"
32 201157GS BRACKET, Crct Brkr Mntng
33 192879GS INSULATOR, Circuit Breaker
34 * PPHMS, 1/4-20x 3/4"
35 192881GS BUS BAR
36 192882GS BREAKER Circuit
37 193159GS DECAL, Reinstall Barrier
39 197294GS DECAL, Contacts Rating
40 192150GS SPACER
41 197198GS DECAL, Wire Circuits
42 202758GS DECAL, Disconnect Utility
43 202361GS DECAL, Gen Disconnect
44 202760GS DECAL, Not Suitable
45 202841GS SUPPORT, Locking, Crct Brd
Parts Not Illustrated
193306GS SCREW, 1/4-20 Bndng, w/Envlp
193551GS DECAL, Service Disconnect
200010GS MANUAL, Operator’s
195728GS CURRENT TRANSFORMER
192242TGS ASSY, Wire, 6 Gauge
* - Items without part numbers are common fasteners and
available at local hardware stores.
Model 071025
