Step 3

Step 4

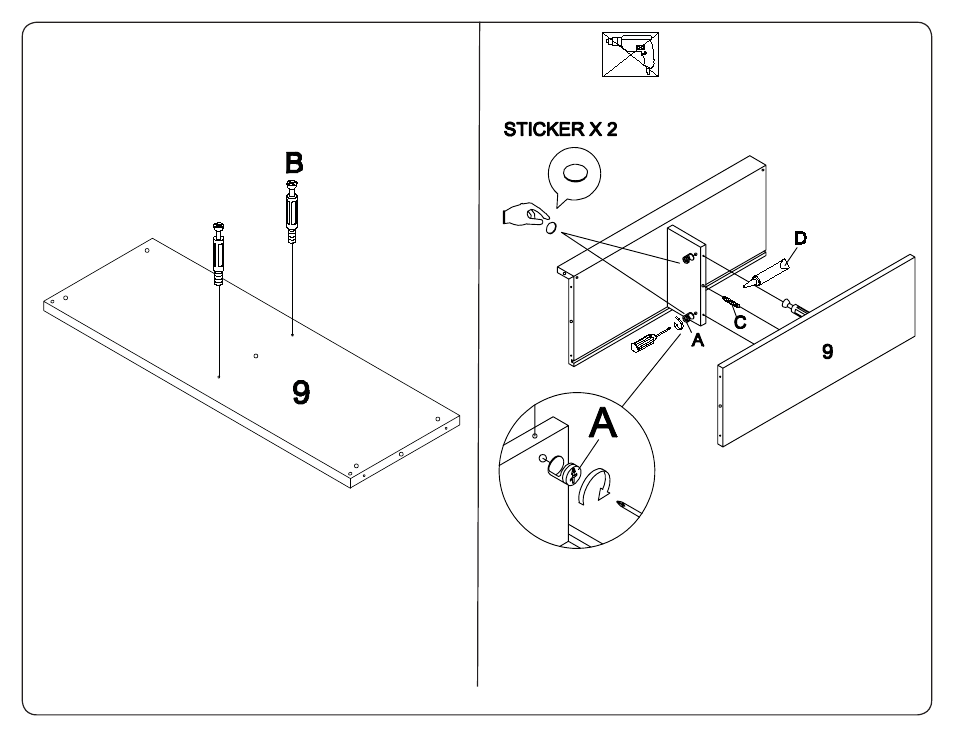

Attach cam bolts (B) to the middle shelf (9) as shown in the diagram.
Cover cam locks (A) using the provided stickers as shown in the diagram.

Insert dowels (C) into the left side panel (3). (Remember to apply glue (D))
Insert cam locks (A) into frame assembly. Attach middle shelf (9) to frame
assembly. Tighten cam locks (A) with a screwdrivers as shown in the diagram.
