Walker Edison Furniture BTOT Sunrise Twin/Twin Metal Bunk Bed - Manual (Page 17)

P.17

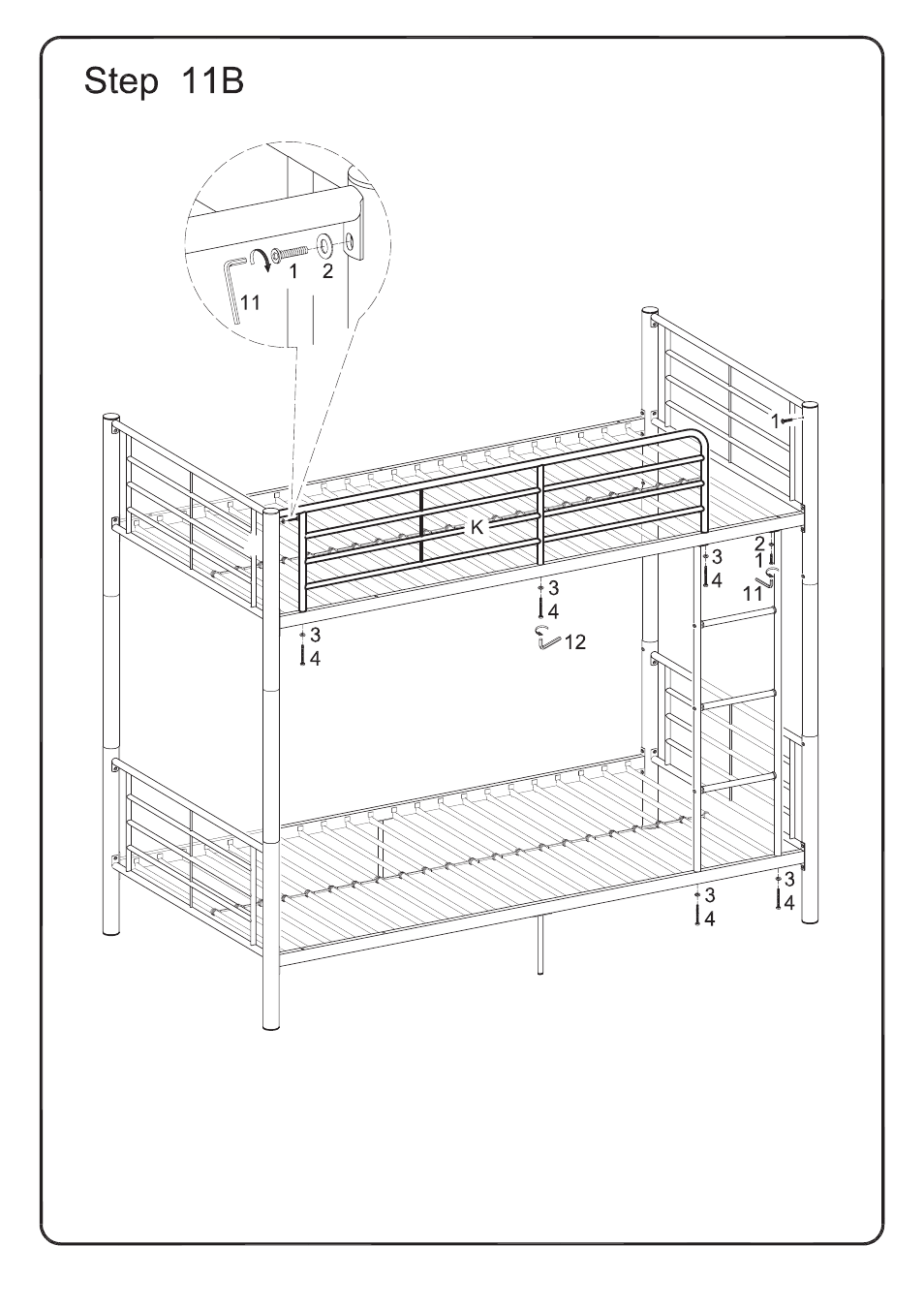

In this step you will attach guardrail (K) and the ladder to the bunk bed. Attach the top left corner of guardrail (K)
to post section (A) using small bolt (1) with small washer (2). Attach the top right corner of the ladder to crossbar
(H) using small bolt (1) with small washer (2). Secure guardrail (K) and the top left corner of the ladder to
crossbar (H) using large bolts (4) with large washers (3). Note that guardrail (K) and the ladder will share a single
large bolt (4) where the two pieces meet at crossbar (H). Secure the bottom of the ladder to crossbar (I) using
large bolts (4) with large washers (3). Screw small bolt (1) into post section (D). Tighten all bolts with wrenches
(11,12).
I
H
A
D
