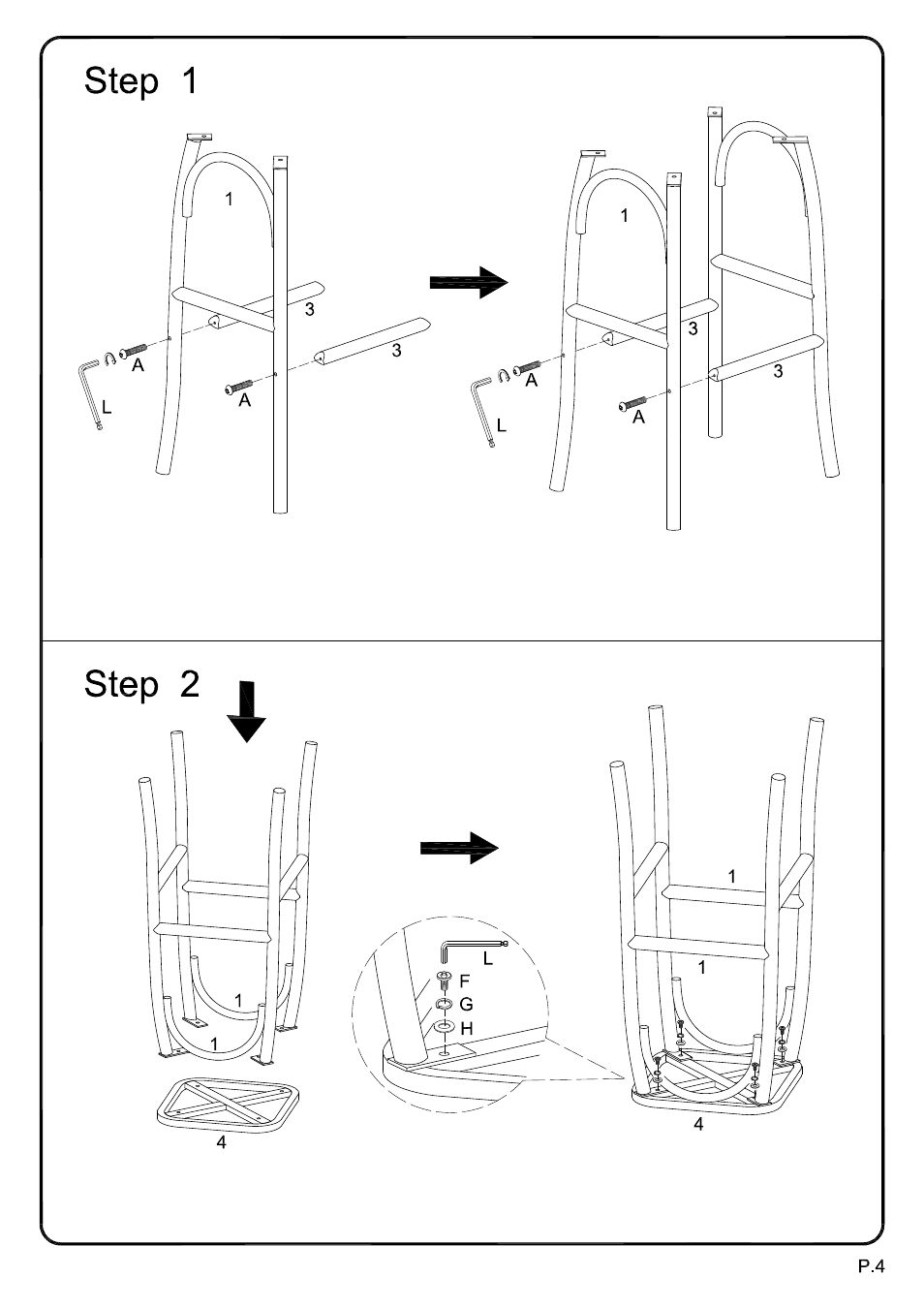

Attach Support Bar (3) to the Legs (1) and secure it with the Long Bolt (A) and the Allen Wrench (L).

Please ensure Legs (1) are facing the right direction as diagram. **Please don't t screw it too tight

until the completion of Step #3.

Upside down the Legs unit (1) and place on top of the Support Frame (4) and secure it with the

Washer (H), Spring Washer (G), Short Flat Bolt (F) and the Allen Wrench (L). **Please don't

screw it too tight unti the completion of Step #3
