Walker Edison Furniture DW48D30 Storage Desk User Manual

Page 11

background image

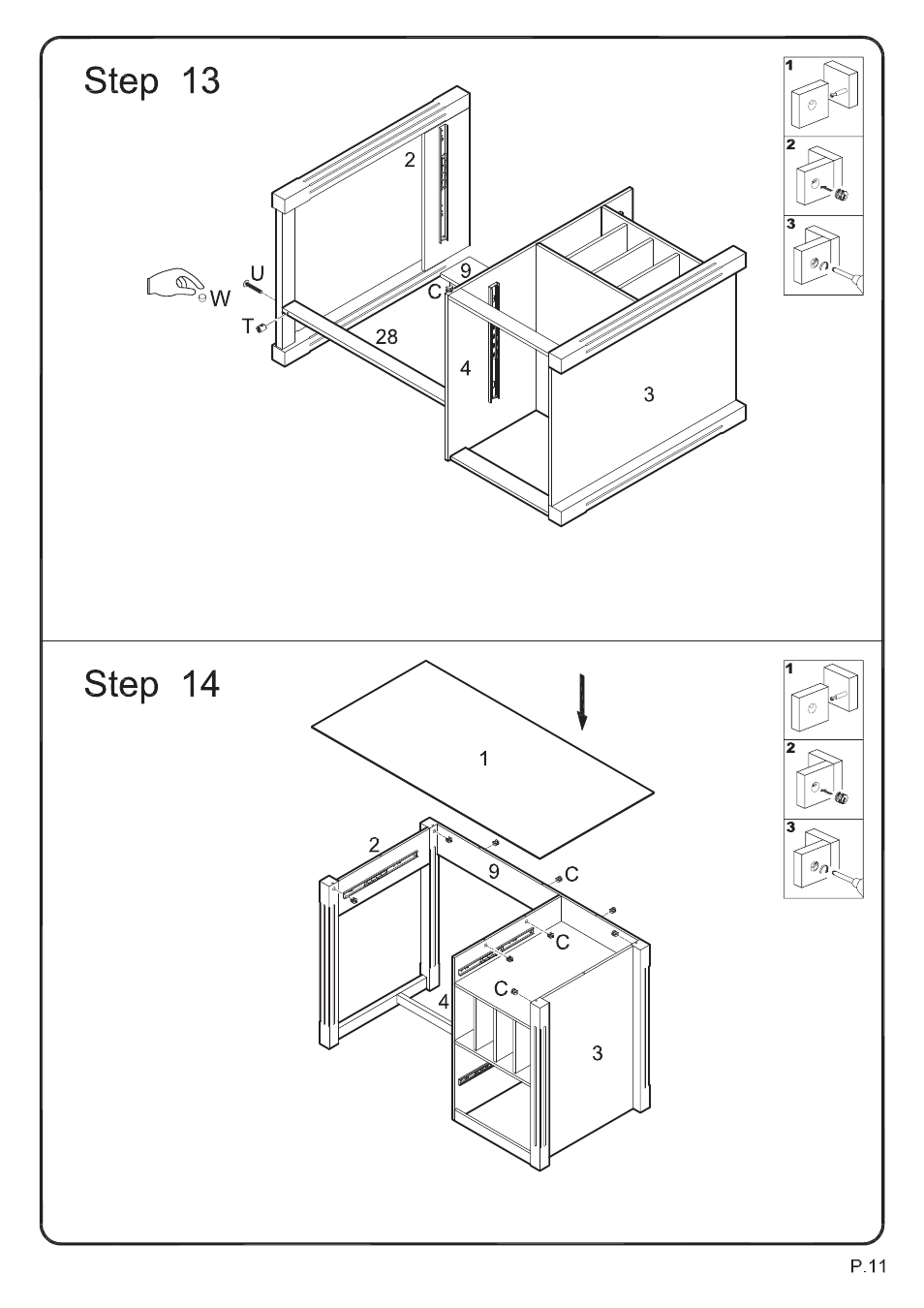

Insert cam locks (C) into panels (2,3,4) and slat (9). Fit desk top (1) into place using cam bolts and dowels

as guides. Tighten cam locks (C) with a screwdriver to secure desk top (1).

Insert cam locks (C) into slat (9) and tighten with a screwdriver. Note that two cam locks (C) will be inserted

into slat (9). Insert barrel nut (T) into slat (28). Secure slat (28) to panel (2) using bolt (U). Note that bolt (U)

will screw directly into barrel nut (T). Cover bolt (U) with cap (W).
